Did you know that proper retail shelf lighting can boost product sales by up to 30%? (Source: Journal of Retailing and Consumer Services)
Lighting is not decoration. It is a direct sales driver.
Yet most store owners still deal with the same frustrations — uneven brightness, complicated wiring, and lights that are nearly impossible to reposition when displays change.
That is exactly where the magnetic rigid bar for retail shelves changes the game.
It snaps on in seconds. It lights evenly. It looks clean and professional. And it repositions without tools, without damage, and without downtime.
In this guide, you will learn the 5 key factors to select the right magnetic LED rigid bar for your store — whether you manage a supermarket chain, a boutique, a pharmacy, or a convenience store network.
Table of Contents
Why Choose Magnetic Rigid Bars for Retail Shelving?
Traditional shelf lighting options — fluorescent tubes, adhesive LED strips, clip-on spotlights — all share one critical flaw: they are slow to install and painful to adjust.
A magnetic LED rigid bar solves all three pain points simultaneously. Here is why retail professionals across Europe, North America, and Asia are switching fast.

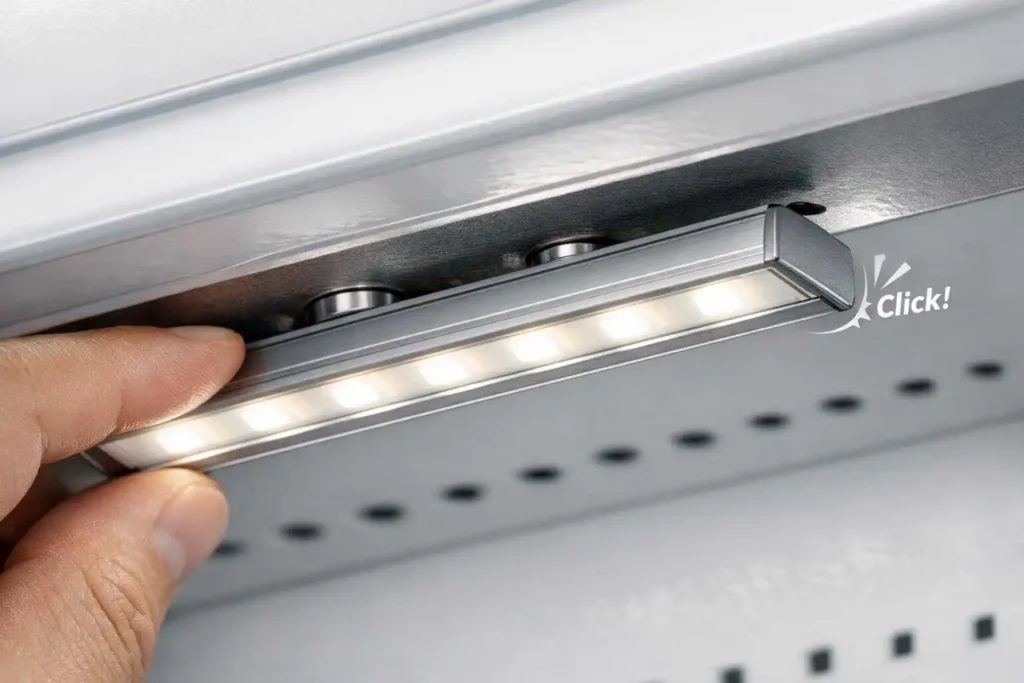

Easy Installation and Flexibility
Built-in high-strength neodymium magnets attach the bar to any ferrous metal shelf in under 3 seconds.
No screws. No adhesive tape. No electrician required.
- ✅ Snap on — snap off — reposition in seconds
- ✅ Perfect for stores that refresh displays weekly or seasonally
- ✅ Cuts installation labor cost by up to 70% compared to hardwired systems
- ✅ Zero surface damage when repositioning or removing
For large supermarket chains or franchise retail networks, this flexibility alone delivers significant ROI across hundreds of shelving units.
High Brightness and Even Illumination
Dark spots are silent sales killers. Customers instinctively skip products they cannot clearly see.
A quality magnetic rigid bar uses 2835 SMD LED chips mounted on a 70 μm copper PCB — delivering consistent brightness from the first LED to the last, with virtually zero voltage drop across the full bar length.
A high-transmittance PC diffuser cover further softens the light output into a smooth, uniform glow. The result: no hotspots, no glare, and perfectly lit merchandise from edge to edge.

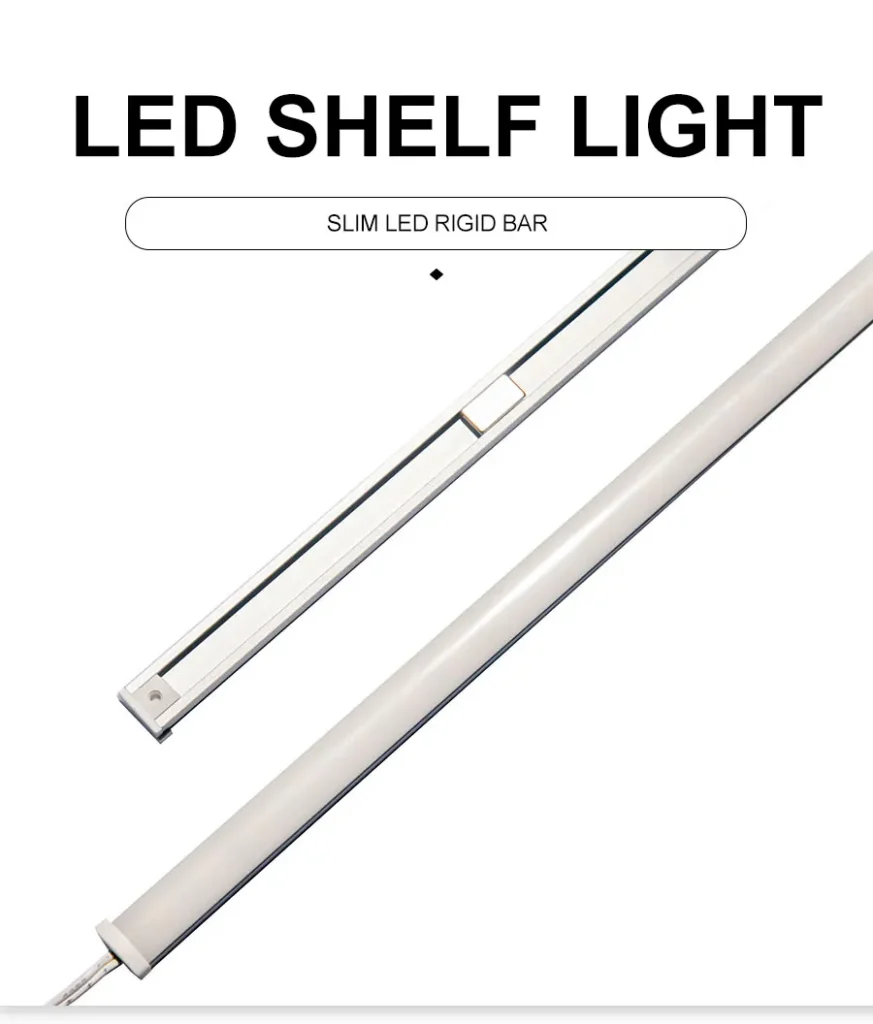

Clean and Professional Look
Shoppers judge a store’s quality by how it looks. Messy wiring and bulky fixtures silently undermine your brand image.
Magnetic rigid bars feature a slim extruded aluminum profile, hidden wiring channels, and a sleek frosted PC cover. The total profile is typically just 8–12mm thin.
The result is a clean, modern shelf display that elevates your entire store aesthetic — from budget supermarkets to luxury boutiques.
5 Key Factors to Consider When Selecting a Magnetic Rigid Bar
Not all magnetic LED light bars are created equal. Here are the 5 critical factors every B2B buyer must evaluate before placing an order.
1. Brightness and Color Temperature (CCT)
Brightness and CCT directly determine how your products look to customers.
Recommended CCT by store type:
| Store Type | Recommended CCT | Effect |
|---|---|---|
| Supermarket / Grocery | 4000K – 5000K | Fresh, clean, energetic |
| Bakery / Deli | 2700K – 3000K | Warm, appetizing, inviting |
| Cosmetics / Boutique | 3000K – 4000K | Natural skin tones, flattering |
| Pharmacy / Convenience | 4000K – 6500K | Clinical clarity, high visibility |
| Jewelry / Luxury | 2700K – 3000K + High CRI | Rich color depth, premium feel |
Key brightness benchmark: Look for bars delivering ≥ 100 lm/W efficiency. Anything below 80 lm/W is outdated technology and wastes energy costs.
2. Size and Fit for Your Shelves
A bar that does not fit your shelf is useless — no matter how good the specs are.
Before ordering, always confirm:
- Bar length options — Common sizes: 300mm, 500mm, 600mm, 900mm, 1200mm. Custom lengths are available from quality manufacturers.
- Shelf depth compatibility — Standard gondola shelves range from 300mm to 600mm deep.
- Linkable design — Can multiple bars be daisy-chained end-to-end for longer shelf runs?
- Mounting position — Front-edge mount vs. under-shelf mount vs. back-wall mount.
💡 Pro Tip: Always request a sample bar before bulk ordering. Test it physically on your actual shelf model to confirm magnet strength, fit, and light coverage angle.

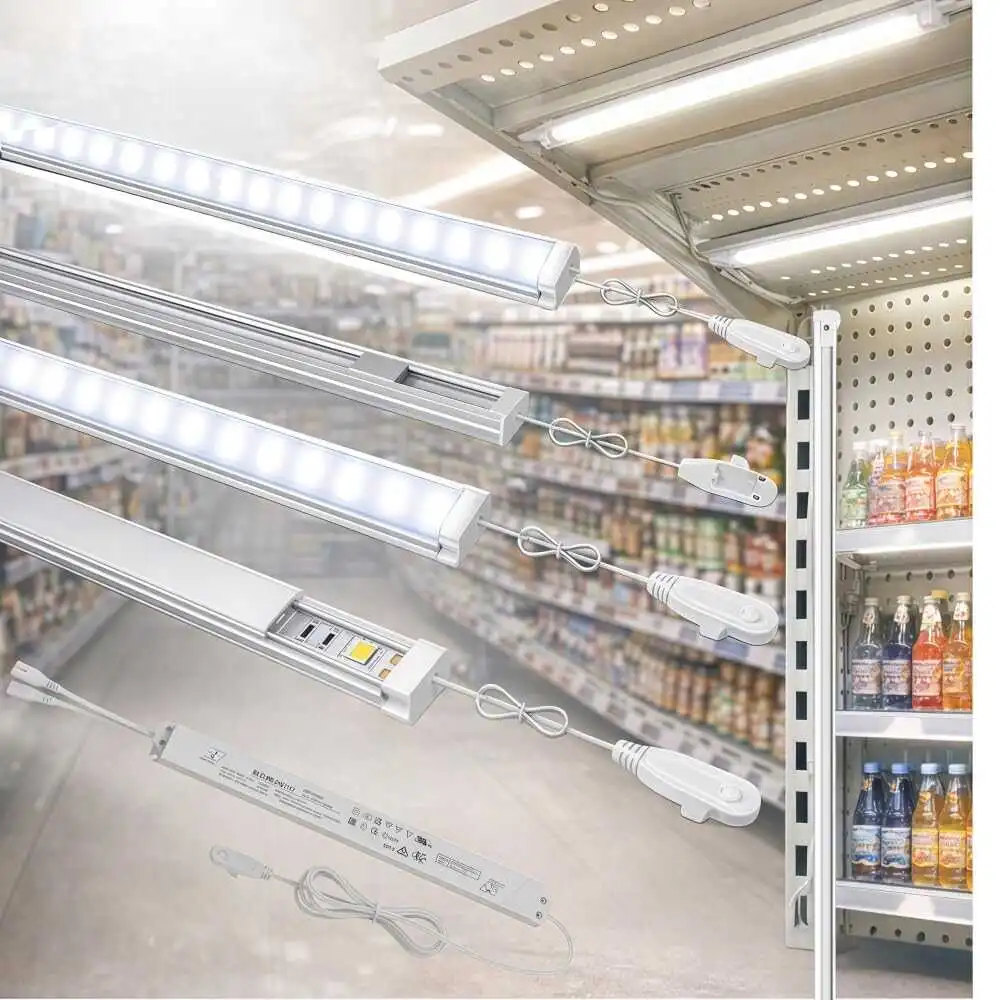

3. Power Supply and Track System
Power delivery is the most overlooked factor — and the most common cause of field failures.
Two main power systems for retail shelf lighting:
| System | How It Works | Best For |
|---|---|---|
| Conductive Rail System | Power delivered via shelf rail; bars plug in automatically | Large supermarkets, gondola systems |
| Direct Wire / Adapter | Each bar or group wired to a central driver | Boutiques, smaller displays |
- Always use 24V DC systems for longer runs — it dramatically reduces voltage drop vs. 12V.
- Match your driver wattage to total bar load × 1.2 (20% safety headroom).
- Look for CE/RoHS/UL-certified power supplies — uncertified drivers are a fire risk.
Nphis-LED’s Shelf Conductive Rail is purpose-designed to pair with magnetic rigid bars — thick copper foil, flame-retardant housing, and low voltage drop across the full rail length.
4. Durability and Heat Dissipation
Heat is the #1 enemy of LED lifespan. Poor heat management = early failure = costly replacements.
What to look for:
- Aluminum profile housing — Thermal conductivity of ≥ 150 W/(m·K). Aluminum dissipates heat far better than plastic housings.
- PCB copper thickness — 70 μm copper PCB is the gold standard. Standard budget bars use only 18–35 μm, which traps heat and shortens lifespan dramatically.
- Operating temperature range — Should handle -20°C to +50°C for outdoor or refrigerated display cases.
- IP rating — IP20 for standard dry shelves; IP65 for refrigerated cases or humid environments.
Lifespan comparison by PCB copper thickness:
| PCB Copper Thickness | Typical Lifespan | Voltage Drop Risk |
|---|---|---|
| 18 μm (budget) | 15,000 – 20,000 hrs | High ⚠️ |
| 35 μm (standard) | 25,000 – 35,000 hrs | Medium ⚡ |
| 70 μm (premium) ⭐ | 50,000+ hrs (L70) | Very Low ✅ |
5. CRI (Color Rendering Index)
CRI is arguably the most important factor for retail — yet the most commonly ignored by budget buyers.
CRI measures how accurately a light source renders the true colors of objects, on a scale of 0–100.
| CRI Range | Color Accuracy | Recommended Use |
|---|---|---|
| CRI 70 – 79 | Poor | Warehouses only — not retail ✗ |
| CRI 80 – 89 | Acceptable | Basic supermarkets, storage |
| CRI 90 – 94 | Good | Most retail applications ✓ |
| CRI 95 – 97 | Excellent | Cosmetics, jewelry, fashion, food ⭐ |
A product lit with CRI 70 looks dull and unappetizing. The same product under CRI 95+ looks vivid, fresh, and premium — exactly what drives purchase decisions.
Rule of thumb: Never go below CRI 90 for any customer-facing retail display. For cosmetics, fresh food, and luxury goods, always specify CRI 95+.
Best Applications for Magnetic LED Light Bars

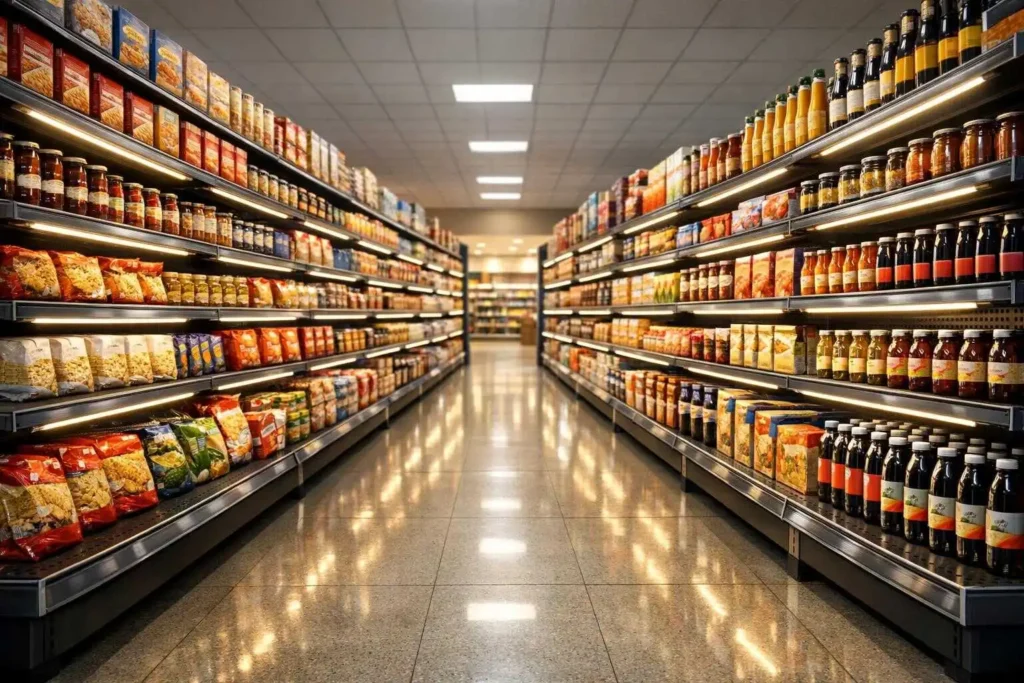

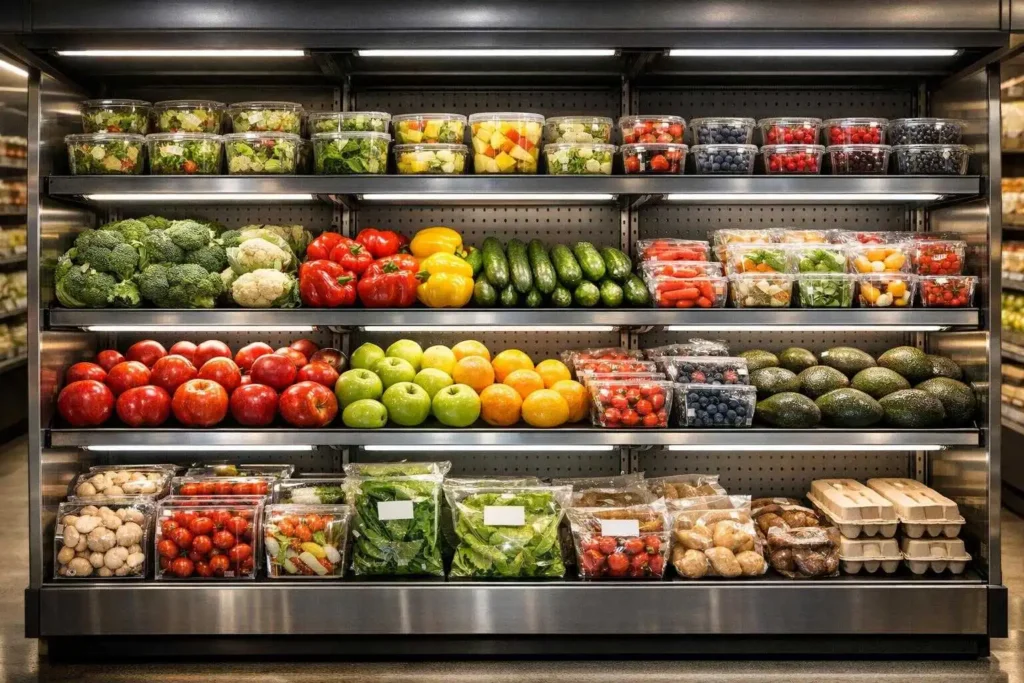

Supermarkets and Grocery Chains
This is the highest-volume application for supermarket shelving display lights.
Large grocery chains operate thousands of shelving units. The ability to install, reposition, and replace lighting without store closure or specialist labor is a massive operational advantage.
Recommended spec for supermarkets:
- CCT: 4000K–5000K
- CRI: ≥ 90
- System: Conductive rail for gondola aisles
- IP: IP20 (dry aisles) / IP65 (refrigerated sections)

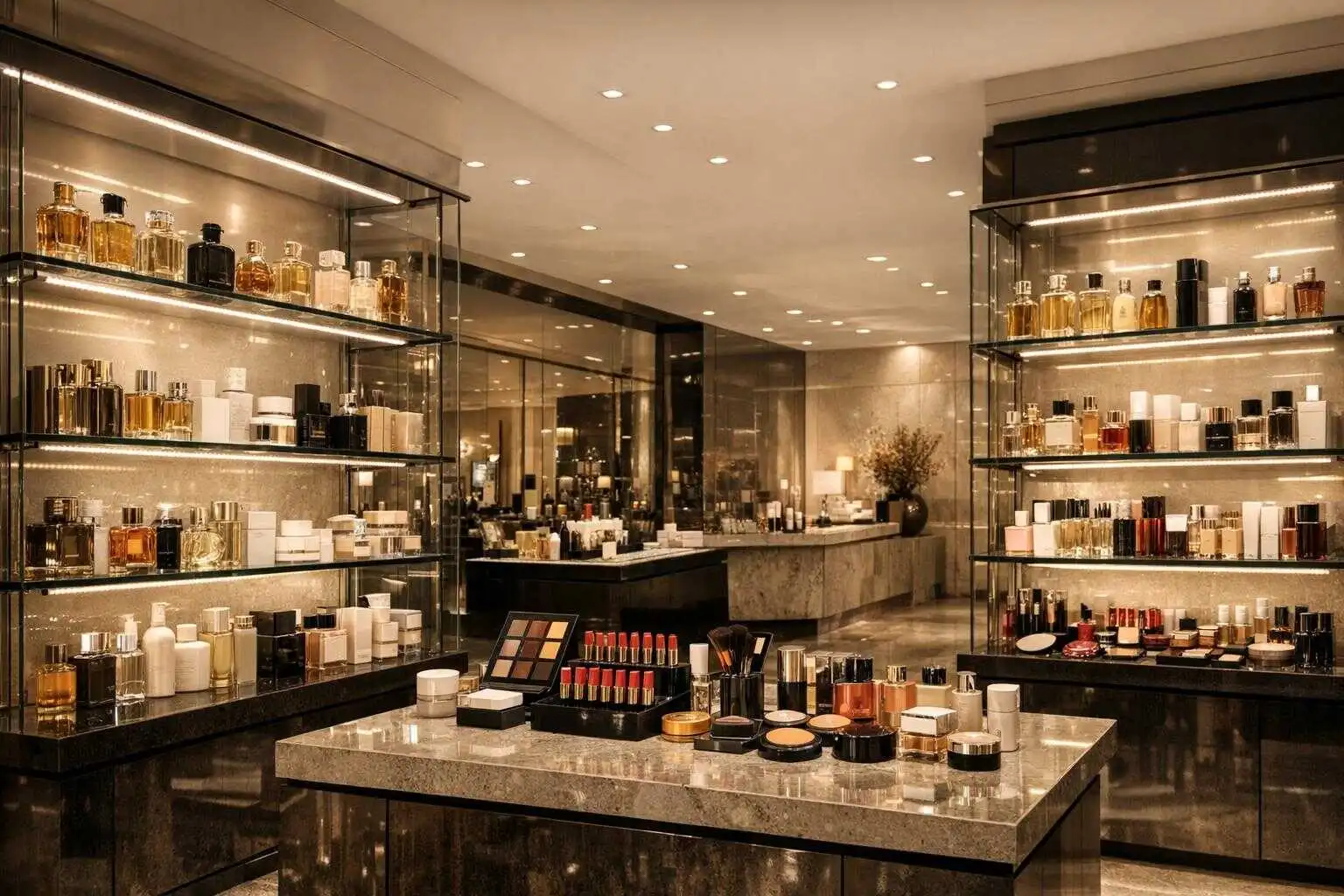

Boutiques, Cosmetics, and Fashion Retail
High-end retail demands high-CRI lighting. A perfume bottle, a lipstick shade, or a fabric texture must look exactly as intended — under the store lights and in the customer’s hand.
Recommended spec for boutiques:
- CCT: 3000K–4000K (warm, flattering)
- CRI: ≥ 95 (non-negotiable for cosmetics and fashion)
- Profile: Ultra-slim (≤ 10mm) for clean aesthetics
- Dimming: 0–10V or TRIAC dimming for ambiance control
Pharmacies and Convenience Stores
Pharmacies require clinical brightness and accurate color rendering for product label readability and customer trust.
Convenience stores need robust, low-maintenance lighting that runs 24/7 with minimal failure rates.
Recommended spec:
- CCT: 4000K–6500K
- CRI: ≥ 90
- Lifespan: ≥ 50,000 hours (L70) to minimize replacement cycles
- Certification: CE + RoHS mandatory; UL preferred for North American markets
Elevate Your Retail Space with Nphis-LED Solutions
When it comes to commercial retail lighting that combines engineering precision with factory-direct value, NPHIS-LED is the manufacturer of choice for distributors, retail chains, and lighting contractors worldwide.

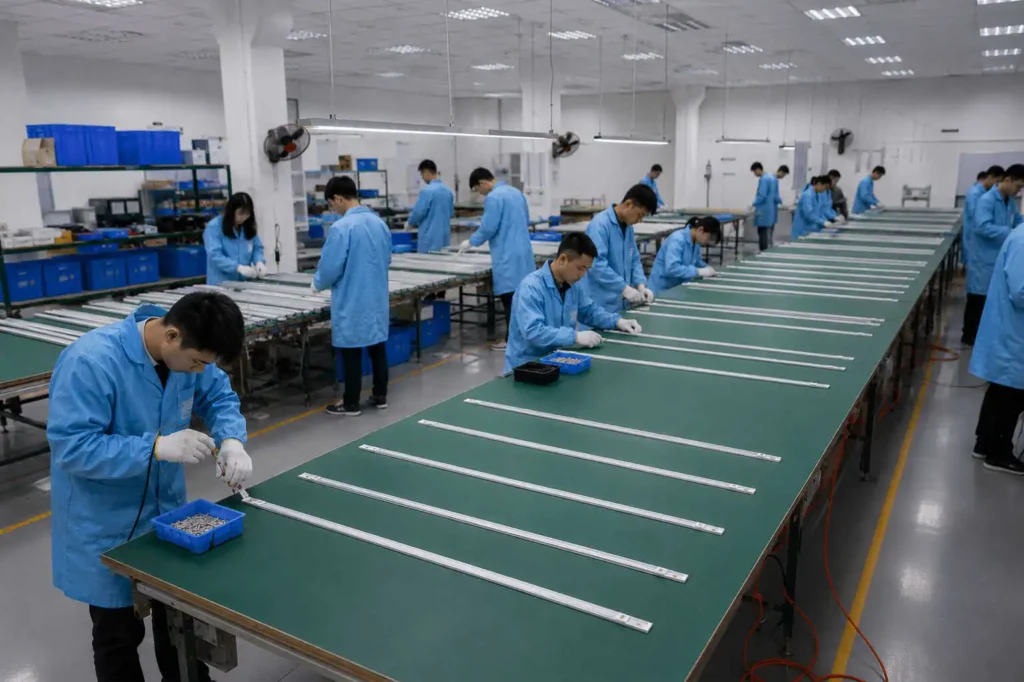

Since 2012, Nphis-LED has supplied LED lighting solutions to B2B buyers across Europe, North America, Southeast Asia, and the Middle East — with a track record built on consistent quality, fast lead times, and genuine technical support.
The NPHIS-LED Magnetic Rigid LED Light Bar is purpose-engineered for retail shelf environments:
| Specification | Nphis-LED Standard |
|---|---|
| LED Chip | 2835 SMD 10×30mil |
| PCB Copper | 70 μm electrolytic rolled copper |
| CRI | ≥ 90 standard / ≥ 95 on request |
| Input Voltage | 12V / 24V DC |
| IP Rating | IP20 / IP65 |
| Lifespan | 50,000 hrs (L70) |
| Certifications | ✅ CE / RoHS / UL |
| Custom Lengths | 300mm / 500mm / 600mm / Any custom |
| OEM / ODM | ✅ Full white-label available |
| Lead Time | 10 – 15 working days (bulk orders) |
Why B2B buyers choose Nphis-LED:
- 🏭 Factory-direct pricing — No middlemen, maximum margins for distributors
- 🔬 Strict QC — Every batch thermally aged, integrating sphere tested, SDCM < 3
- 🎨 Full customization — Custom length, CCT, CRI, voltage, branding, packaging
- 📦 Scalable production — Handle large volume orders without quality compromise
- 🤝 Dedicated B2B support — Response within 12 hours, dedicated account manager
Explore the full LED Shelf Light Strips range or view the Magnetic Rigid LED Light Bar product page for full technical specifications and pricing.
Also explore our LED Rigid Strip Light collection and LED Power Supply options to build a complete retail shelf lighting system.
📩 Ready to Light Up Your Retail Space?
Get a free sample and factory-direct quote within 24 hours. 👉 Contact Nphis-LED Now | 💬 WhatsApp: +86 182 1724 1063
Tell us your shelf dimensions, store type, and quantity — and we will recommend the exact spec for your project.
References & Further Reading
- Journal of Retailing and Consumer Services — Impact of store lighting on consumer purchase behavior → sciencedirect.com
- Armacost Lighting — LED Retail Shelf Lighting Fixtures Guide → armacostlighting.com
- Nphis-LED — 2026 LED Strip Lights Trends: B2B Global Buyer Guide → nphis-led.com
- Nphis-LED — How to Calculate Voltage Drop for Long Run LED Strip Installations → nphis-led.com
FAQs
❓️ How long do magnetic rigid LED bars last?
A premium magnetic rigid LED bar — such as those from Nphis-LED using a 70 μm copper PCB and 2835 SMD chips — is rated at 50,000 hours (L70). Running 12 hours per day in a retail store, that equals over 11 years of service life before the first replacement is needed.
❓️ Can I cut a magnetic rigid bar to fit my shelf?
Most magnetic rigid bars are not cuttable like flexible LED strips, because the aluminum profile and PCB are rigid. Instead, order the correct length from the factory. Nphis-LED offers custom lengths (300mm, 500mm, 600mm, or any bespoke size) with no minimum order penalty on samples — so you always get a perfect fit.
❓️ Are magnetic LED bars safe for all types of retail metal shelves?
Yes — as long as the shelf surface is ferrous (iron-based) metal, the neodymium magnets will hold securely. This covers the vast majority of commercial gondola shelving (Lozier, Madix, etc.), wire shelving with metal frames, and display cabinet rails. They will not attach to aluminum, stainless steel, or non-metallic shelves. In those cases, a bracket or adhesive mount version is recommended.
❓️ What is the difference between 12V and 24V magnetic rigid bars?
24V is strongly recommended for retail shelf applications. Higher voltage means lower current for the same power output — which results in less voltage drop over longer runs, more consistent brightness across multiple linked bars, and reduced heat in the wiring. Use 12V only for very short single-bar installations (under 1 meter).
❓️ Do I need a special power supply for magnetic rigid bars?
Yes. You need a constant voltage DC driver (12V or 24V, depending on your bar spec). Always size your driver at total bar wattage × 1.2 to allow 20% headroom. For gondola shelf systems, Nphis-LED’s Shelf Conductive Rail integrates power delivery directly into the shelf rail — eliminating individual wiring per bar entirely.
❓️ Can magnetic rigid bars be dimmed?
Yes — with the right driver. Nphis-LED magnetic rigid bars support PWM dimming, 0–10V dimming, and TRIAC dimming depending on the driver selected. Dimming is particularly valuable in boutique and cosmetics retail where ambiance control is important.
❓️ What CRI should I choose for a supermarket vs. a cosmetics store?
For supermarkets: CRI ≥ 90 is sufficient for most aisles. For fresh produce, bakery, and deli sections, upgrade to CRI ≥ 95 to make food look fresh and appetizing. For cosmetics, fashion, and jewelry: always specify CRI 95–97 — accurate color rendering is directly linked to customer confidence and purchase conversion.
❓️ What is the MOQ for custom magnetic rigid bars from Nphis-LED?
Nphis-LED offers flexible MOQ based on project requirements. Sample orders are accepted for testing and approval. For bulk production, standard lead time is 10–15 working days. Contact the team directly via nphis-led.com/contact-us for a project-specific quote.
