DMX512 RGBW Silicone LED Neon Flex
FACTORY DIRECT · DMX512 RGBW · IP68 SILICONE EXTRUSION
Addressable Pixel Silicone Neon Light Strip
A professional 16 x 16 mm front-emitting RGBW neon flex for dynamic architectural lighting, signage, entertainment spaces, and outdoor decorative projects. Built with UCS512C1L IC, SMD5050 RGBW LEDs, DC24V input, and IP68 integral silicone extrusion.
- DC24 / DC48V Single-ended power supply with no voltage drop over 20-30 meters
- Breakpoint transmission, parallel transmission of signals, with high reliability
- With strong long-distance communication anti-interference capability
- CE / RoHS Certified - Global Compliance
- Every batch tested, thermally aged, and inspected before shipment.
5 Years Warranty
Ip67/68
Fast delivery
PRODUCT BASICS

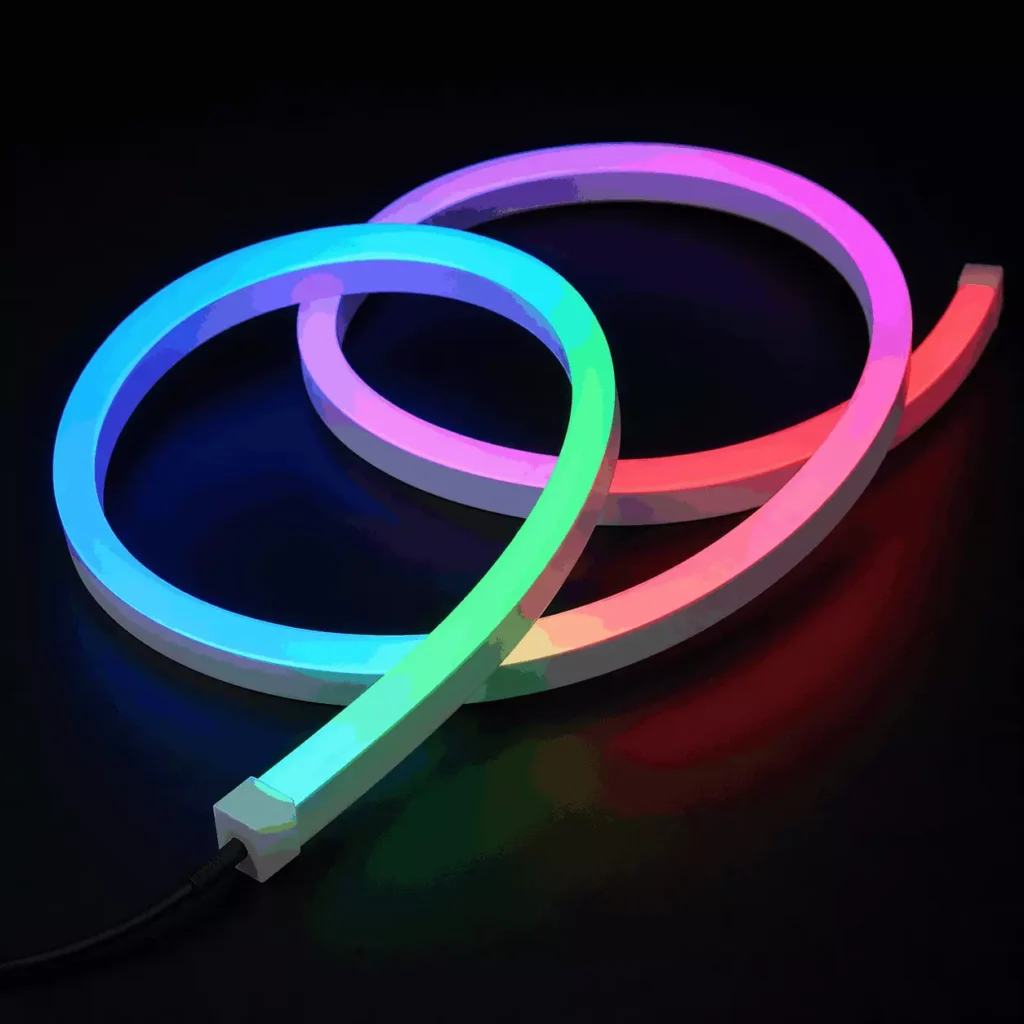

What Is DMX512 RGBW Neon Flex?
DMX512 RGBW neon flex is a programmable silicone LED neon strip designed for dynamic color lighting projects. Unlike standard RGB neon flex, it includes an additional white channel, allowing the same fixture to produce vivid full-color effects and clean architectural white light.
With DMX512 signal control and addressable IC support, each pixel or section can be programmed for chasing, flowing, gradient, flashing, and scene-based effects.
BUYING REASON
Why Choose DMX512 RGBW Neon Flex?
Choose DMX512 RGBW LED neon flex when a project needs more than simple color changing. DMX512 gives lighting designers precise programming, stable synchronization, and cleaner control for larger installations.
The RGBW light source adds a dedicated white channel, so building facades, signage, bars, KTV rooms, and event spaces can shift between colorful effects and refined white architectural lines.
DMX512
Professional lighting control protocol
RGBW（or single+RGB）
Red, green, blue plus CCT white
5050/3535
High-output RGBW package
16X16mm/360°
Compact square neon profile
IP67/68
Integral waterproof silicone extrusion
TECHNICAL DATA
Key Specifications
The product page should use these real values from the DMX512 5050RGBW specification sheet. Custom wiring, accessories, reel length, and project packaging can be confirmed before production.
| Product Type | DMX Colorful Silicone Neon Strip |
|---|---|
| Model | UCS512C1L-5050/3535RGBW-24V/48V |
| Section Size | 16 x 16 mm/360° |
| Luminous Direction | Front emitting |
| LED Source | SMD5050/3535 RGBW |
| Operating Voltage | DC24V |
| Power | 18W/m +/-10% |
| Grayscale | 256 levels |
| Color | RGBW full color, CCT white channel |
| Waterproof Rating | IP68 integral silicone extrusion |
| Operating Temperature | -25°C to 40°C |
| Lifespan | 30,000 hours |
| Package | 5m/reel, anti-static moisture-proof bag |
PRODUCT ADVANTAGES
Built for Dynamic Outdoor Linear Lighting
Leveraging 14 years of experience, Nphis delivers custom-designed neon lighting solutions for building facades. We provide expert guidance to protect your budget and save you from costly project overruns.
Built-In DMX512 IC
UCS512C1L IC receives professional DMX512 signals for addressable RGBW effects.
5050/3535 RGBW Light Source
SMD5050/3535RGBW LEDs create vivid full-color effects plus a cleaner 4000K white channel.
Built-In DMX512 ICIP68 Silicone Extrusion
Integrated extrusion improves waterproof protection, flexibility, and outdoor reliability.
Smooth Front Emission
The 16 x 16 mm body produces a soft neon surface with uniform brightness.
STRUCTURE & INSTALLATION
DMX512 Pixel Top Bend Silicone Strip
This neon flex is designed for front emission. It bends up and down for outlines, curves, and decorative lines, but it should not be bent excessively left and right. During installation, do not pull the strip hard; the product can withstand up to 4.5 kg pulling force.
- Use mounting buckles, strip aluminum slots, or curved profiles.
- Plan bending direction before installation.
- Seal cable exits carefully for outdoor applications.
- Confirm controller address and power injection before final fixing.
CONTROL & WIRING
DMX512 Control for RGBW Pixel Effects
The DMX512 RGBW neon flex requires a full-color controller to switch and program lighting effects. In general, one controller port can control 512 pixels. If the installation has too many pixels or exceeds the control range, NPHIS can help divide the project into serial or multi-zone control sections.
For wiring proposal, prepare:
Total length, pixel count, installation drawing, controller brand, power location, and indoor/outdoor environment.
APPLICATIONS
Where to Use DMX512 RGBW Neon Flex
From striking architectural facades and luxury retail entrances to vibrant bars and exclusive private clubs, Nphis custom DMX512 LED strips provide flawless indoor and outdoor lighting solutions tailored to your space.
Building facade outlines

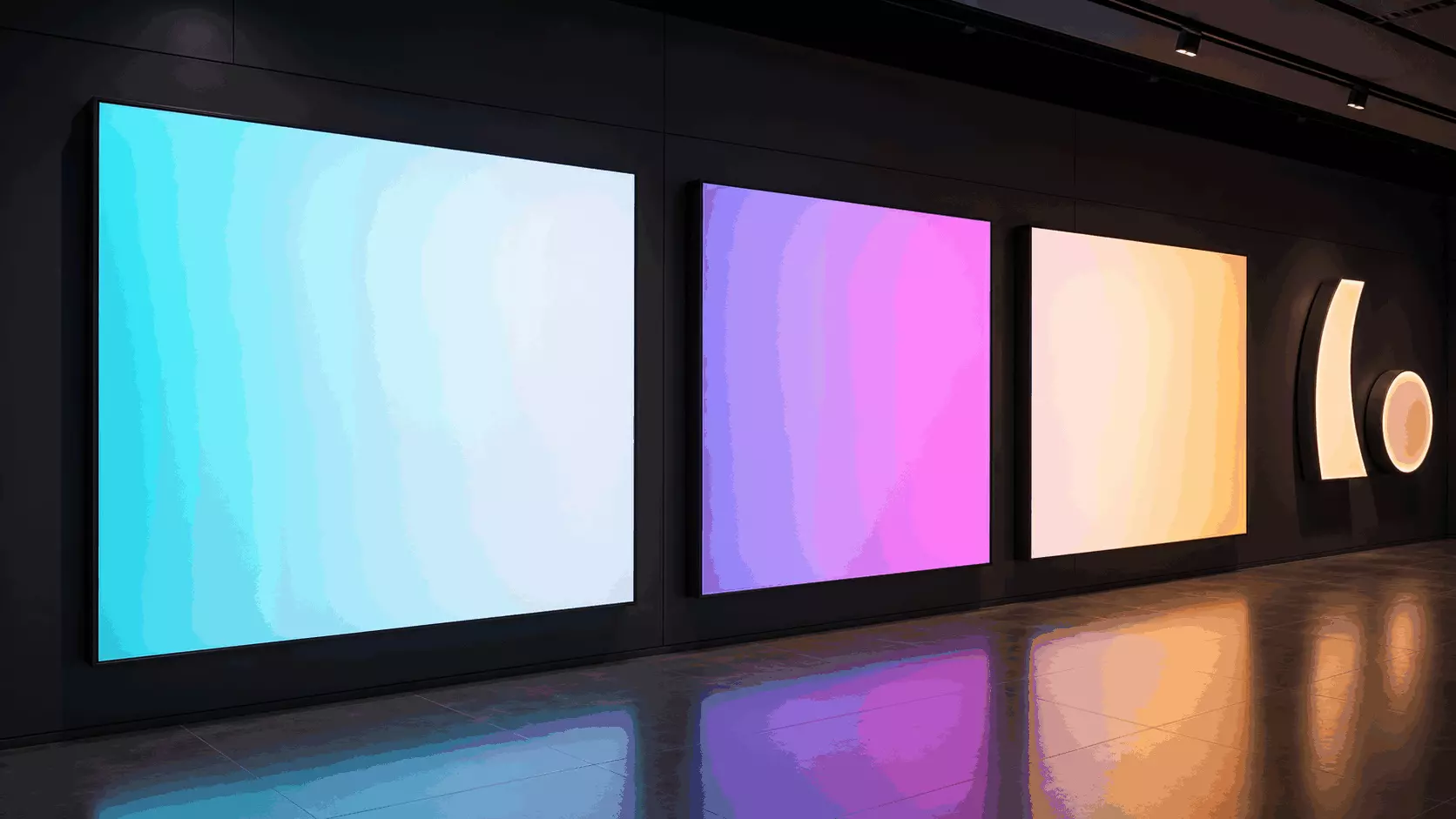

Advertising letters and light boxes

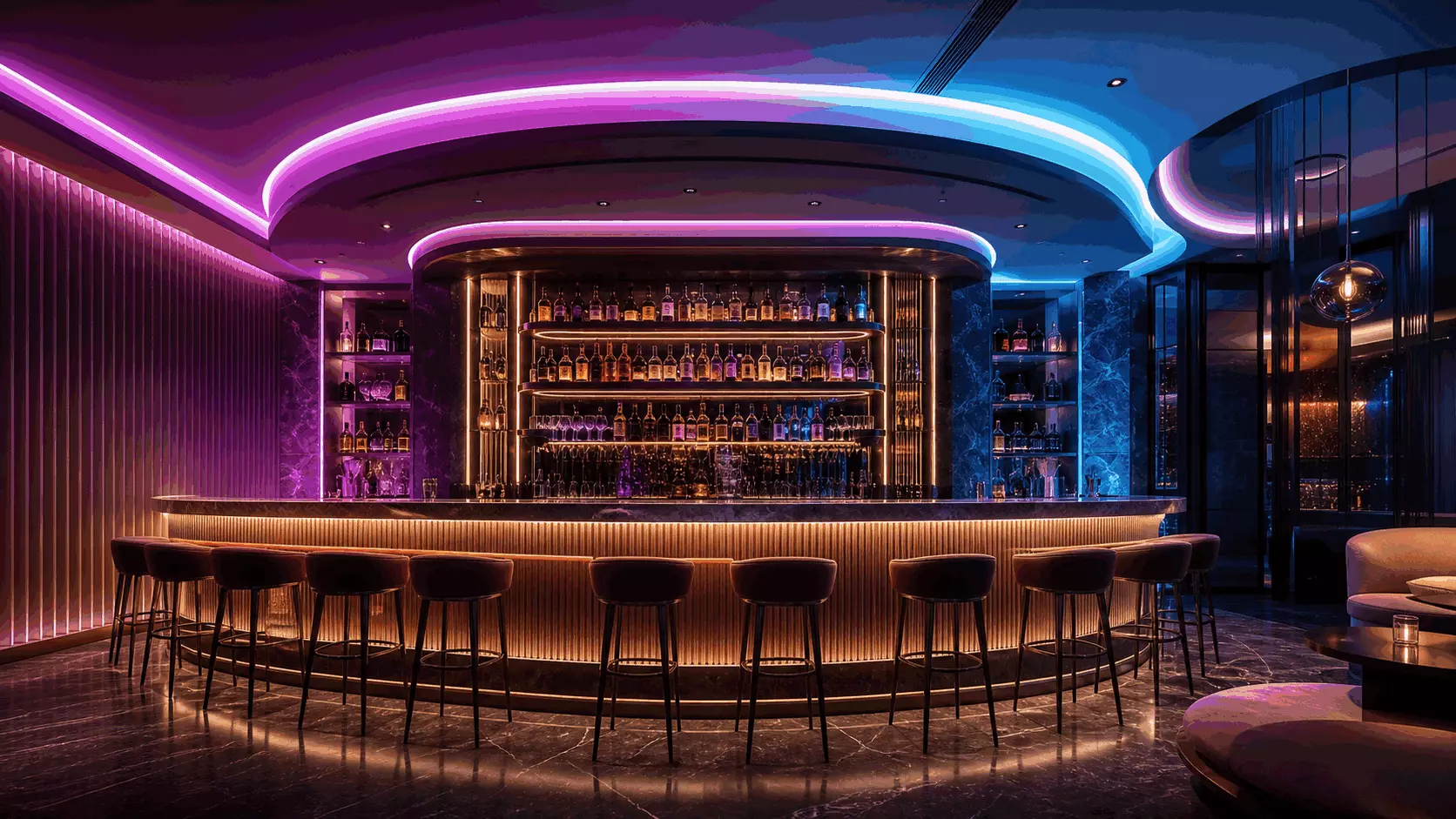

Bars, KTV, cafes and clubs

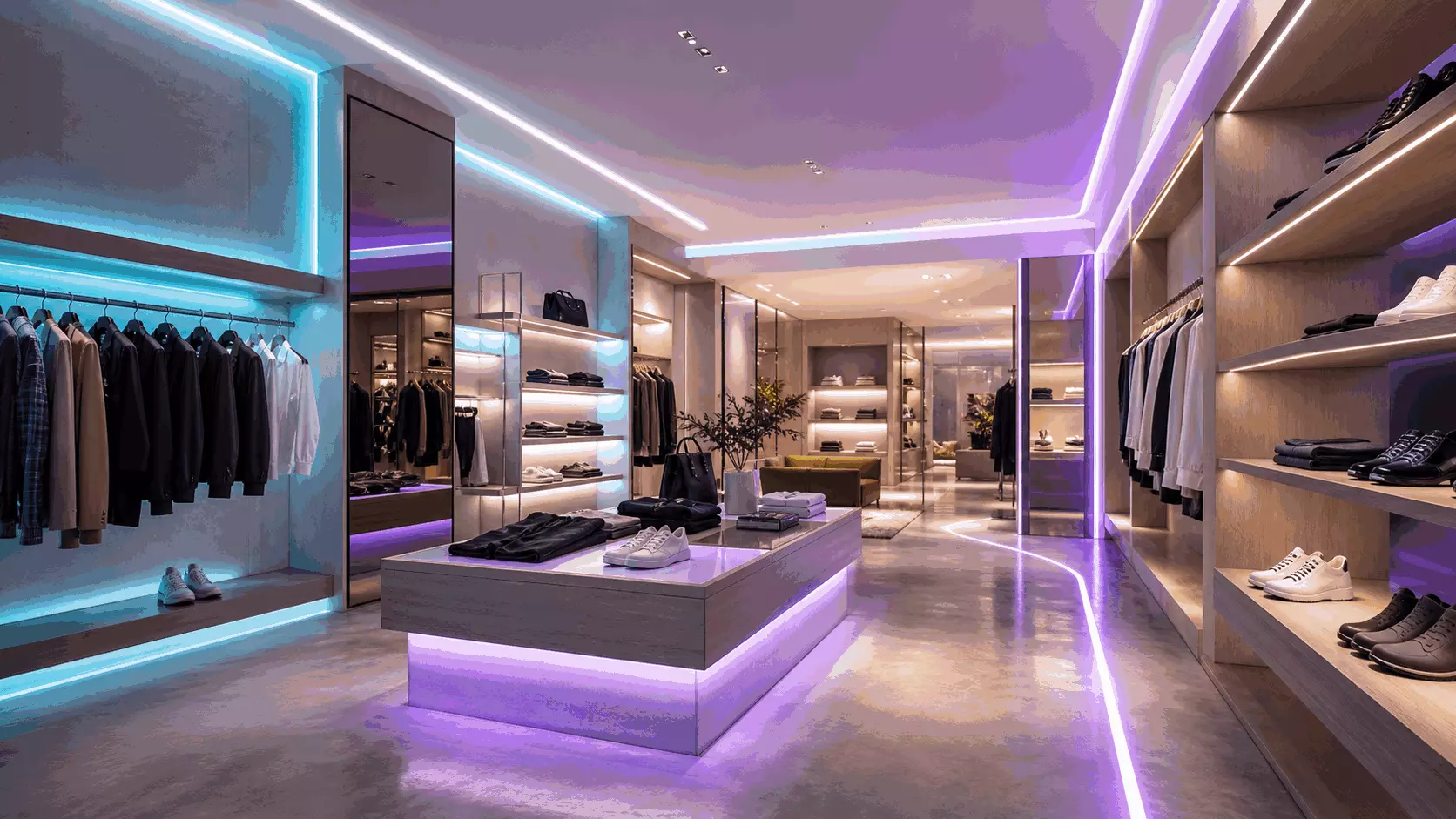

Retail store atmosphere lighting

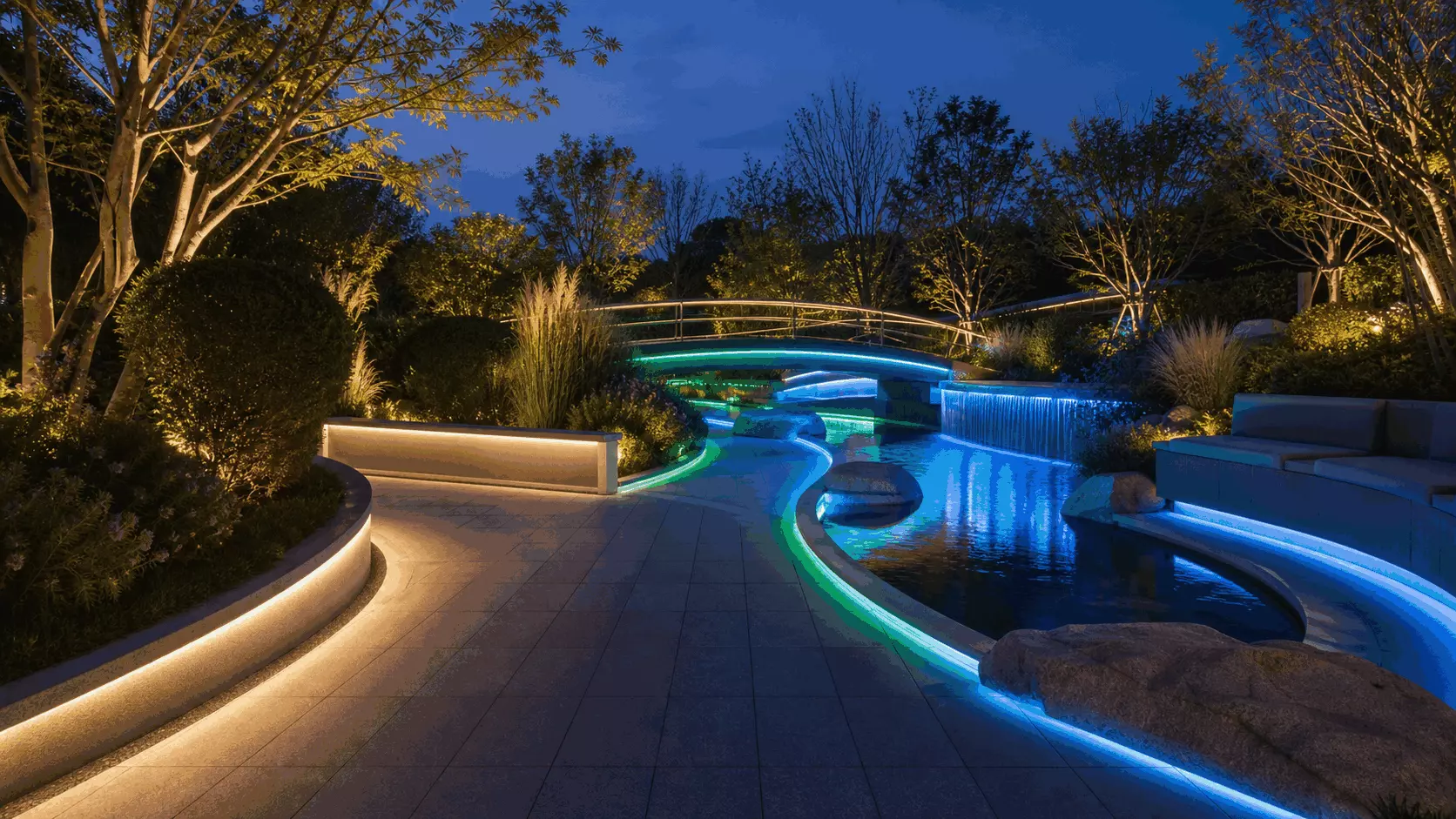

Outdoor landscape decoration

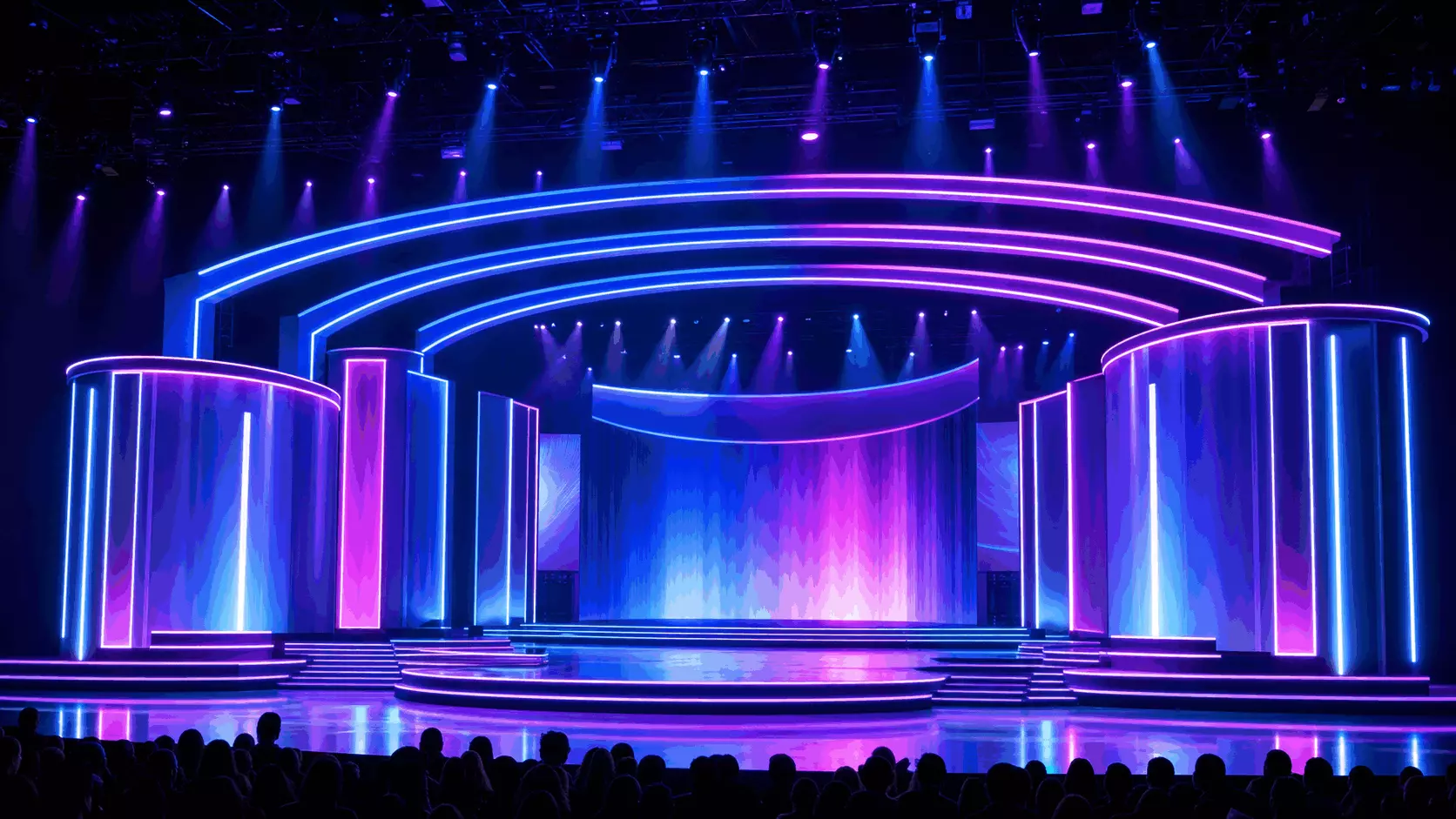

Event and entertainment effects
DATASHEET DOWNLOAD
Download the 1616 DMX512 RGBW Neon Flex Spec Sheet
HELPFUL GUIDES
Internal Links for Buyers and Engineers
COMPLETE PROJECT PACKAGE
Matching DMX512 Controller & Taiwan Mean Well Power Supply
To make project selection easier, NPHIS can supply the 1616 DMX512 RGBW neon flex together with compatible DMX512 controllers, address writing tools, signal accessories, and Taiwan Mean Well 24V power supplies.
OEM / ODM Service
Full customization available. Tell us your requirements and we will engineer the perfect solution.
Color & CCT
Custom Pantone colors, warm/cool white, RGB, RGBW, and tunable white options.
Profile & Size
Multiple cross-section profiles and custom mold available for specific applications.
Voltage & Power
DC 12V / 24V / 48V options. Power density customizable from 5W/m to 25W/m.
IP Rating
IP20 / IP67 silicone or IP68 PU version for specific environmental requirements.
Packaging
Custom reel length, private label packaging, and branded accessories for OEM clients.
Certifications
CE, RoHS standard. UL, ETL, TUV available on request for specific markets.
Flexible MOQ
Samples from 10m. Bulk orders from 100m. No rigid MOQ for established partners.
Fast Delivery
Standard orders ship in 7–15 days. Express production available for urgent projects.
Inspire Creative Lighting With NPHIS !
Why NPHIS LED
Your reliable LED strip partner since 2012
DMX512 RGBW Addressable Effectsg
Create programmable chasing, flowing, gradient, rainbow, flashing, and synchronized color-changing effects for architectural and commercial lighting projects.
IP68 Outdoor Silicone Neon Flex
Durable silicone extrusion and waterproof protection make it suitable for façades, bridges, signage, landscape lighting, and outdoor advertising applications.
Project-Based Control Solutions
We help configure DMX512 controllers, DMX universe planning, RGBW channel order, signal transmission, and power supply layout for each project.
Custom Length Manufacturing
Available with custom lengths, cable exits, connector types, pixel sections, mounting clips, and aluminum channels to match your installation drawing.
Stable DC24V / DC48V Supply
Standard DC24V with DC48V customization options helps support longer runs, lower voltage drop, and more flexible power distribution.
OEM / ODM Factory Support
Direct factory supply for lighting contractors, façade designers, signage manufacturers, distributors, and brands needing reliable project delivery.
Rigorous Product Testing & Quality Control
Every DMX512 RGBW Pixel Neon Flex we manufacture undergoes strict electrical, waterproof, aging, signal transmission, and color consistency tests before shipment. This ensures stable DMX512 addressable control, reliable outdoor IP68 performance, accurate RGBW effects, and long-term durability for façade, signage, landscape, and commercial lighting projects.
Certification
We always strive to provide our customers with the best possible customer experience when working with us. In addition to our excellent customer service, we want our customers to be confident that their single color led tape lights are safe and of the highest quality. To ensure the best performance, all our led strip light with lens have passed CE, RoHS certificates.
Frequently Asked Questions (FAQs)
DMX512 RGBW Addressable Neon Flex: Expert Q&A
Find expert answers about DMX512 RGBW pixel neon flex, including DMX512 controller selection, RGBW addressable effects, outdoor IP68 waterproof wiring, DC24V/DC48V power supply planning, signal transmission, custom cutting lengths, and installation for building façade lighting. This Q&A is designed for lighting contractors, façade designers, signage manufacturers, and commercial installers who need a reliable addressable silicone neon flex solution for architectural, retail, entertainment, and outdoor advertising projects.
01. Does DMX512 RGBW neon flex need a DMX decoder?
No. This DMX512 RGBW neon flex is designed with built-in DMX512 IC control, so it can receive DMX512 signals directly from a compatible DMX controller. In most pixel-control projects, an additional DMX decoder is not required. However, the controller, addressing method, pixel quantity, and wiring layout must match the project design. For large façade or commercial lighting projects, we recommend confirming the DMX wiring diagram before production.
02. What controller do I need for DMX512 RGBW addressable neon flex?
You need a DMX512-compatible controller that supports RGBW pixel control. The controller should match the total number of pixels, DMX channels, voltage, and required lighting effects. For small decorative projects, a standalone DMX controller may be enough. For building façade lighting, hotel exterior lighting, bridge lighting, or large commercial projects, a multi-universe DMX controller or computer-based lighting control system is usually recommended.
03. How many meters of DMX512 RGBW neon flex can one controller run?
The controllable length depends on the controller’s DMX universe capacity, pixel quantity, channel usage, and power distribution. RGBW pixels require more DMX channels than RGB pixels, so the maximum length cannot be calculated only by meters. For longer runs, the system can be divided into multiple DMX universes, controller ports, or control zones. Please provide the total length and effect requirements so we can recommend the correct controller and wiring solution.
04. How do you wire DMX512 RGBW LED neon flex for outdoor projects?
A typical wiring system includes a DC24V constant-voltage power supply, a DMX512 controller, signal cables, power cables, and the DMX512 RGBW neon flex. For long outdoor runs, power injection and signal distribution should be planned carefully. Outdoor wiring should also include waterproof connectors, sealed cable exits, waterproof power supply boxes, and proper grounding. Incorrect wiring may cause voltage drop, unstable color, signal loss, or pixel control errors.
05. Is this DMX512 RGBW pixel neon flex individually addressable?
Yes. This is an addressable DMX512 RGBW pixel neon flex. Each pixel or control segment can be programmed for chasing, flowing, rainbow, gradient, flashing, color-changing, and customized animation effects. The exact pixel pitch and addressable section depend on the production specification. For project orders, the pixel layout can be customized according to the animation design and installation drawing.
06. What is the difference between DMX512 RGBW neon flex and SPI RGBW neon flex?
DMX512 RGBW neon flex is commonly used in professional architectural lighting, stage lighting, façade lighting, and commercial projects because it supports stable signal transmission, precise addressing, and multi-universe control. SPI RGBW neon flex is also addressable, but it is usually used for shorter decorative lighting or simpler controller-based animations. If your project needs long-distance signal transmission, synchronized building effects, or professional lighting programming, DMX512 is usually the better choice.
07. Can DMX512 RGBW silicone neon flex be used for building façade lighting?
Yes. DMX512 RGBW silicone neon flex is suitable for building façade outlines, hotel exterior lighting, shopping malls, commercial complexes, bridges, landmarks, clubs, bars, and entertainment venues. Its DMX512 pixel control allows synchronized dynamic effects across long linear installations, while the RGBW LEDs provide both colorful animations and clean architectural white light.
08. Is IP68 DMX512 RGBW neon flex suitable for outdoor and wet locations?
Yes. This product uses silicone extrusion and is rated IP68, making it suitable for outdoor façades, landscape lighting, signage, architectural outlines, and wet-location installations. For real outdoor use, the whole system must be waterproof, including cable exits, connectors, end caps, power supplies, and controller boxes. The neon flex itself is waterproof, but poor installation sealing can still cause water damage.
09. Can DMX512 RGBW neon strip run on DC24V power supply?
Yes. The standard voltage for this DMX512 RGBW neon flex is DC24V. A constant-voltage DC24V LED power supply should be used. We can also customize DC48V if required.
The power supply wattage must be calculated according to the total length and product wattage. For long installations, multiple power supplies or power injection points may be required to avoid voltage drop.
10. Is DC48V DMX512 RGBW neon flex available for longer runs?
Yes, DC48V customization may be available for projects that require longer continuous runs or reduced voltage drop. DC48V solutions are often considered for large architectural or façade lighting projects. Please confirm the project length, installation layout, and control requirements before selecting DC24V or DC48V.
11. How much power does DMX512 RGBW silicone neon flex consume per meter?
This model is approximately 18W per meter. To calculate the basic power requirement: Power supply wattage = total length × 18W/m For example, 10 meters requires about 180W. In actual projects, we recommend adding a safety margin to the power supply capacity and planning power injection for long runs.
12. Can I cut DMX512 RGBW addressable neon flex on site?
This product can be customized to project lengths, but on-site cutting should follow the specified cutting unit. Because it contains built-in DMX512 ICs and waterproof silicone extrusion, random cutting may damage the circuit or affect waterproof performance. For project orders, we recommend confirming exact lengths, cable directions, connector types, and installation positions before production.
13. What is the minimum bending radius for 16x16mm DMX512 RGBW neon flex?
The minimum bending radius depends on the exact structure and bending direction. This 16x16mm front-emitting silicone neon flex is designed for top bending / vertical bending applications. Do not twist the neon flex or bend it against the designed bending direction. For letters, curves, and complex shapes, please confirm the bending radius before ordering.
14. Can DMX512 RGBW neon flex be used for outdoor signage and channel letters?
Yes. It can be used for outdoor signage, logo outlines, channel letters, storefront decoration, commercial display lighting, and advertising projects. The silicone neon body creates a smooth dot-free neon effect, while DMX512 RGBW pixel control enables animated color effects for signs and brand displays.
15. How do I set the DMX address for RGBW pixel neon flex?
DMX address setting depends on the IC type, controller, and programming method. In many project-based systems, addresses are configured through the DMX controller or programming software before installation. For large projects, it is important to plan the address map in advance so that the lighting effects match the physical installation order.
16. Why is my DMX512 RGBW neon flex flickering or showing wrong colors?
Common causes include insufficient power supply capacity, voltage drop, incorrect wiring, signal cable interference, wrong DMX address setting, controller mismatch, or poor waterproof connector contact. For troubleshooting, check the DC24V input voltage, power injection points, DMX signal polarity, controller settings, cable length, and grounding. If the issue occurs outdoors, also inspect connectors and cable exits for moisture.
17. Can DMX512 RGBW neon flex create chasing and flowing light effects?
Yes. This addressable DMX512 RGBW neon flex can create chasing, flowing, scanning, gradient, rainbow, flashing, color-changing, and custom animation effects. The final effect depends on the DMX controller, software programming, pixel quantity, and address layout.
18. Can RGBW DMX512 neon flex produce real white light?
Yes. RGBW neon flex includes a dedicated white LED channel, so it can produce cleaner white light than RGB-only neon flex. This is useful for architectural projects that need both dynamic color effects and normal white lighting scenes. White color temperature options may be customized depending on the project requirement.
19. What cable should be used for long-distance DMX512 neon flex installation?
For long-distance DMX512 installations, use suitable DMX signal cable or shielded twisted-pair cable to reduce signal interference. Power cables should be selected according to current load, distance, and voltage drop. In large outdoor projects, signal amplifiers, proper grounding, waterproof junction boxes, and separate power injection may be required.
20. Can this DMX512 RGBW neon flex work with Madrix, Sunlite, or DMX lighting software?
Yes, it can be used with professional DMX lighting software or control systems if the controller output and DMX addressing are compatible. Software such as Madrix, Sunlite, or other DMX-based systems can be used for pixel mapping and programmed effects. Before ordering, please confirm the controller type, DMX universe quantity, pixel count, and RGBW channel order.
21. What is the channel order for DMX512 RGBW neon flex?
The common channel order is RGBW, but the actual channel order can depend on the IC, controller, or project setting. If your control system requires a specific channel order such as RGBW, WRGB, GRBW, or another format, please confirm before production. Correct channel order is important to avoid wrong colors during programming.
22. Can DMX512 RGBW silicone neon flex be synchronized with other façade lights?
Yes. DMX512 is widely used in professional lighting systems because it allows different fixtures, neon flex, wall washers, pixel bars, and façade lights to be synchronized under the same control system. For synchronized projects, all fixtures should be planned according to DMX universe allocation, address mapping, and control software design.
23. What mounting accessories are used for 16x16mm DMX512 neon flex?
Common mounting accessories include aluminum channels, stainless steel clips, screws, end caps, waterproof connectors, and customized brackets. The best accessory depends on whether the neon flex is installed on a façade, ceiling, wall, signboard, or curved surface. For outdoor installations, secure fixing and waterproof cable protection are especially important.
24. Can NPHIS provide a wiring diagram for DMX512 RGBW neon flex projects?
Yes. NPHIS can help provide a recommended wiring diagram based on your project length, controller type, power supply layout, installation drawing, and required lighting effects. For accurate support, please send the project drawing, total meters, voltage requirement, controller information, and indoor/outdoor installation details.
25. What information should I send to get a quote for DMX512 RGBW neon flex?
To get an accurate quotation, please provide:
– Total length in meters
– Required voltage: DC24V or DC48V
– Indoor or outdoor application
– Required pixel pitch or control section
– Required lighting effects
– Controller or software system
– Cable exit direction
– Connector type
– Installation drawing or project photo
– Quantity and delivery schedule
With this information, we can recommend the correct DMX512 RGBW neon flex, controller, power supply, accessories, and wiring solution.
