RGB Cuttable Flexible LED Sheet
Trusted Bespoke LED Light Sheet Manufacturer | Stable Quality & Custom‑Built For Your Projects
FACTORY DIRECT · OEM / ODM
rGB Cuttable LED Sheet lights for Color-Changing Backlight
A 480 × 240 mm SMD5050 RGB LED light sheet for indoor decorative lighting, commercial displays, advertising light boxes, ceilings, furniture and entertainment spaces. Use a compatible RGB controller to create vivid red, green, blue and mixed-color lighting effects.
- RGB color-changing flexible LED light sheet
- 480 × 240 mm panel, DC24V, 18W
- SMD5050 RGB LEDs for decorative backlighting
- Red: 625–635 nm · Green: 515–525 nm · Blue: 460–470 nm
- Indoor indirect lighting; compatible RGB controller required
LED LIGHT SHEET
Product Overview
RGB Flex LED Sheet for Light Boxes, Ceilings, Displays & Decorative Lighting Stone
Unlike a conventional LED strip installed only around an edge, this RGB flexible LED light sheet distributes SMD5050 RGB LEDs across the backlit surface. It helps create colorful illumination for decorative panels, advertising light boxes, display cabinets, hotel interiors, KTV spaces, furniture and architectural lighting features.
The repeatable 480 × 240 mm panel format helps lighting brands, contractors, wholesalers and project procurement teams estimate sheet quantity, power branches, RGB controller capacity and service access before installation.
Use a compatible RGB controller to mix red, green and blue light for static colors, color-changing scenes and project-specific ambient lighting effects. Confirm the final lighting appearance, wiring method and control compatibility with a physical sample before mass production.
Source-Backed Product Specifications
The specifications below are reproduced from the supplied JS-DC24V-5050-RGB-288D-ZY1220 document, revised on 19 August 2025. Confirm final LED quantity, electrical ratings, controller compatibility and commercial requirements before system sizing, sample approval, quotation or shipment.
Model |
JS-DC24V-5050-RGB-288D-ZY1220 |
Product type |
SMD5050 RGB flexible LED light sheet |
Sheet size |
480 x 240 mm |
LED quantity |
288 pcs SMD 5050RGB |
Input voltage |
DC24V |
Current |
0.75A / sheet |
Power |
18W / sheet |
Luminous flux |
961.8 lm / sheet |
Color options |
R: 625–635 nm. G: 515–525 nm. B: 460–470 nm |
Dimming |
Dimmable with a compatible RGB controller |
Installation |
Indoor indirect and decorative backlighting |
Maximum 10 Sheets in One Connected Run
Plan multiple RGB LED sheets around a suitably rated DC24V constant-voltage power supply and a compatible RGB controller. For centralized power distribution, connect panel input leads in parallel and use suitably sized cable according to total load, cable length and installation conditions.
For layouts exceeding 10 continuously connected sheets, use an additional power supply or add parallel power injection. Confirm controller channel capacity, voltage drop, wiring routes and maintenance access before installation.
10 sheets x 18W
18W 180W connected load
This calculation is the nominal LED load only. Select the final DC24V power supply and RGB controller after allowing for cable loss, operating conditions, controller channels and a suitable engineering safety margin.
Packaging & Handling
Storage temperature: -20 to 40°C
Light sheet type |
480×240 mm |
Carton quantity |
40 sheets / carton |
Net weight |
7.5kg / carton |
Gross weight |
8 kg / carton |
Carton dimensions |
53.2 x 27.5 x 28 cm |
Warranty |
5 years from shipment for indoor use |
⚠️ Handle the flexible LED sheet carefully during unpacking and installation. Do not pull, stretch or force-bend the panel. Do not press the LED surface with fingernails, sharp tools or heavy objects. LEDs are ESD-sensitive; use appropriate anti-static precautions during installation and servicing. | |
OEM & Wholesale RFQ Checklist
Share These Details for a Faster RGB LED Sheet Quotation
NPHIS supports OEM / ODM requirements for RGB decorative backlighting projects. Share the project information below so the panel layout, power plan, RGB control method and quotation can be evaluated accurately.
Application |
Light box, ceiling, KTV, hotel, bar, display cabinet, furniture or decorative backlighting |
Backlit material |
Material type, finish, thickness and light transmission |
Illuminated area |
Overall width, height, shape and panel layout drawing |
Installation depth |
Distance from the LED sheet to the finished surface |
Light requirement |
Required RGB effect, brightness, static color or dynamic color-changing requirement |
Control requirement |
RGB controller type, control protocol, zones, scenes and wiring requirement |
Order detail |
Sample quantity, estimated bulk quantity and repeat demand |
Project logistics |
Destination country, required delivery date and packaging requirement |
Engineering files |
Layout drawing, power-entry point, wiring position and available installation space |
Get a FREE Estimate
Collaborate with backlighting experts to bring brilliance to your projects.
PRODUCT FEATURES
Why Choose Our RGB LED light Sheet Panels
Review the actual backlit material, cavity depth, lighting effect, controller protocol, wiring route and power design before project approval. For appearance-critical projects, test the RGB effect behind the actual material before mass production.
Full-Surface RGB Backlighting
The 480 × 240 mm flexible panel distributes SMD5050 RGB LEDs across the backlit surface. This format supports more even color coverage than edge-only lighting when installed behind suitable translucent materials.
- SMD5050 RGB LEDs for color-changing illumination
- 480 × 240 mm flexible panel format
- Nominal luminous flux: 961.8 lm
- Suitable for indoor decorative and indirect backlighting
Vivid RGB Color Mixing
The panel uses red, green and blue LED channels. With a compatible RGB controller, these channels can be mixed to create a broad range of colors for commercial interiors, entertainment venues, branded displays and decorative installations.
- Red wavelength: 625–635 nm
- Green wavelength: 515–525 nm
- Blue wavelength: 460–470 nm
- Compatible RGB controller required for color adjustment
DC24V Parallel Wiring
This RGB LED light sheet operates from a DC24V constant-voltage power supply. Plan parallel wiring, controller output capacity, cable gauge and voltage-drop control according to the total connected load and project distance.
- DC24V constant-voltage input
- Nominal current: 0.75A
- Nominal power: 18W
- Add power injection for larger RGB panel layouts
Flexible Layout for Indoor Decorative Projects
Use this flexible RGB LED sheet behind suitable translucent surfaces for indoor decorative and indirect lighting. Secure the sheet through designated mounting points and avoid sharp folds, forceful bending and pressure on the LED surface.
- Suitable for light boxes, ceilings, displays and furniture
- Designed for indoor indirect lighting
- Secure through designated mounting points
- Preserve controller and power-supply service access
Designed for Shallow Indoor Backlighting
The RGB flexible sheet supports layouts where the project team must work within a shallow indoor cavity. Determine the required installation depth from the actual material, layout and light appearance during sample review.
- 480 x 240 mm modular sheet
- Confirm installation depth with sample
- Dry indoor indirect backlighting
PROJECT USE
Application Scenarios
Perfect for a wide range of lighting and backlit applications
Kitchen Island & Translucent Stone
Plan a uniform backlight field behind suitable translucent stone and decorative surfaces used on kitchen islands, bar fronts and backsplashes.
Stretch Ceiling Backlighting
Create indoor backlighting layouts behind stretch ceilings after checking the ceiling material, cavity depth and service access.

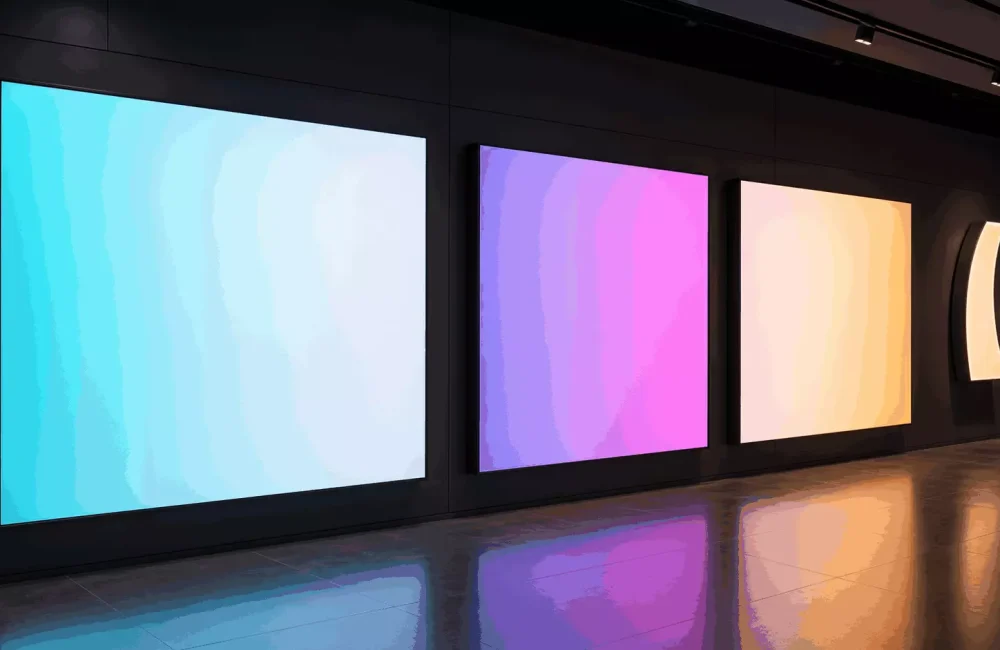

Advertising Light Boxes
Illuminate indoor graphics, retail signage and display faces where a full-surface sheet layout supports the project design.
OEM / ODM Service
Coordinate product options, drawings, sample approval, documentation and delivery inputs around the project requirement.
CCT & CRI Selection
Confirm the requested nominal CCT and CRI option for the project brief.
Sheet Layout & Cutting Plane
Review the drawing and plan cuts only on the marked 20 mm grid.
Wiring & Connector Planning
Coordinate connection points, cable paths and service access around the final layout.
DC24V Power Selection
Size the DC24V power plan for the connected load, cable loss and design margin.
Packaging & Private Label
Discuss packing and private-label requirements for the quoted order.
Certifications
CE, RoHS standard. UL, ETL, TUV available on request for specific markets.
Flexible MOQ
Samples from 10pc. Bulk orders from 100pc. No rigid MOQ for established partners.
Fast Delivery
Standard orders ship in 7–15 days. Express production available for urgent projects.
Inspire Creative Lighting With NPHIS !
Why NPHIS LED
Your reliable LED strip partner since 2012
10+ Years Manufacturing
Over a decade of LED strip production experience with a dedicated R&D team, ensuring consistent quality and innovation.
Full OEM / ODM Capability
From PCB design to final packaging — we handle every step of custom product development for your brand.
Strict Quality Control
Every product undergoes 10 production process checks and a 12-hour aging test before shipment.
Competitive Factory Pricing
Direct factory pricing with no middlemen. Volume discounts available for distributors and project buyers.
Fast Response & Support
Our sales engineers respond within 24 hours. Dedicated account managers for long-term partners.
Global Shipping & Compliance
Experienced in international logistics and export documentation. CE, RoHS, and UL compliance support.
Rigorous Product Testing & Quality Control
The order workflow can include project requirement review, incoming material checks, production inspection, a lighting check, packing review and shipment documentation.
Confirm the inspection and document requirements for the quoted configuration before order release.
Certification
We always strive to provide our customers with the best possible customer experience when working with us. In addition to our excellent customer service, we want our customers to be confident that their single color led tape lights are safe and of the highest quality. To ensure the best performance, all our single color led tape lights have passed CE, RoHS certificates.
BUYER QUESTIONS
Frequently Asked Questions (FAQs)
Flexible LED light sheet: Expert Q&A
01. Can the NPHIS RGB 5050 flexible LED sheet be cut into custom shapes, and how does the cutting grid work?
Yes, absolutely. The NPHIS RGB 5050 flexible LED sheet is engineered with a modular, highly versatile cutting grid. You can cut the sheet vertically, horizontally, or diagonally along the designated cutting lines (typically every single LED or in small grids, depending on the specific wiring layout). This allows sign-makers and fixture manufacturers to easily wrap columns, fit curved reception desks, or create complex backlit shapes (like letters and logos) on-site.
02. What is the minimum depth required to avoid hotspots or shadows when backlighting with this RGB sheet?
Thanks to the high density of our premium 5050 SMD LEDs and their wide 120∘ beam angle, you can achieve perfectly uniform, dot-free illumination with a very shallow profile. With a standard acrylic diffuser, we recommend a minimum depth of 40mm to 50mm (1.5″ to 2″) between the LED sheet and the diffuser. With translucent stone (Onyx/Marble) or fabric, a depth of 50mm+ (2″+) is recommended, depending on the material’s transparency. If your project has an ultra-shallow cavity (under 30mm / 1.2″), please contact our engineering team. We can provide custom high-density layouts or recommend optical diffusion films to eliminate hotspots.
03. What control systems are compatible with this RGB 5050 LED sheet? Can it integrate with DMX512 or smart automation?
Our RGB 5050 flexible LED sheet operates on a standard 4-wire, common anode (12V/24V DC) system. It is fully compatible with almost all multi-channel low-voltage controllers on the global market, including DMX512 / RDM Decoders (ideal for commercial facades, stage lighting, and theatrical installations in the US and Europe), DALI-2 / 0-10V / Triac Systems (perfect for high-end European architectural lighting integration), and RF / Bluetooth / Wi-Fi / Tuya / Zigbee Controllers (great for retail displays, residential coves, and smart home setups). NPHIS can supply the matched controllers and DMX decoders as a complete plug-and-play system for your project.
04. How do I calculate the power supply and manage voltage drop for large-scale installations?
Our RGB sheets are designed to run on 24V DC (12V DC is also available for automotive/specialty projects) to minimize voltage drop. For power calculation, multiply the total wattage per sheet by the number of sheets, and always add a 20% safety margin (NEC Class 2 guidelines in North America recommend running power supplies at no more than 80% capacity). To prevent visible voltage drop (dimming at the far end), we recommend a maximum continuous run of 6 to 8 sheets on a single power feed. For larger areas, you must run parallel power feeds back to the driver or inject power at multiple points.
05. Does this RGB 5050 LED sheet carry UL, CE, or RoHS certifications for commercial projects?
Yes. NPHIS is a professional, export-oriented manufacturer. Our flexible LED sheets are manufactured in compliance with international safety and environmental standards. We offer versions that comply with CE (LVD/EMC) and RoHS for the European Union and UK markets, as well as components suitable for UL-listed / Class 2 installations in the United States and Canada. If your commercial project requires specific laboratory test reports or certification marks to pass local building inspections, please specify this in your RFQ, and we will provide the corresponding certified models.
06. How does NPHIS ensure color consistency (binning) across multiple orders or large project phases?
Color consistency is critical for brand identity (e.g., chain store rollouts). NPHIS utilizes a strict 3-Step MacAdam Ellipse (SDCM < 3) binning process for our SMD 5050 LEDs. We record the specific color bin codes for every batch. If your project is split into multiple phases, we will lock and reserve LEDs from the same bin to ensure that a sheet installed in Phase 2 matches Phase 1 perfectly.
07. What mounting options are available for installing the sheet on curved, metal, or wooden surfaces?
The NPHIS flexible LED sheet offers multiple secure mounting methods. First, double-sided adhesive: the back of the sheet comes standard with genuine 3M™ adhesive tape (such as 3M 300LSE or VHB for high-bond requirements), which adheres firmly to smooth metal, acrylic, or plastic surfaces. Second, screw mounting: the sheet features integrated, non-conductive mounting holes throughout the grid, allowing you to secure it mechanically to wood, drywall, or textured surfaces using screws without damaging the circuitry. Third, solderless connectors: we offer optional snap-on, solderless wire connectors for quick on-site connection without soldering.
08. Can NPHIS customize the LED density, sheet size, or waterproof rating for OEM/ODM projects?
As a direct manufacturer, NPHIS offers full OEM/ODM customization services for bulk orders. For waterproofing, standard sheets are IP20 (indoor), but we can customize them to IP65 (conformal coating) or IP67 (silicone tube/encapsulation) for damp locations or outdoor sign cabinets. For custom sizes and LED density, we can design custom PCB sizes, adjust LED spacing, or change to RGBW / RGBCCT chips to meet your specific lumen output and budget requirements. Private labeling, including custom logo printing on the PCB and customized packaging, is also available.
