Custom LED Backlight Strips for Light Boxes

Choose backlight LED strip or edge lit LED backlight for light-box and display projects and stretch ceiling. Compare installation positions, review the product details, and send your dimensions, face material and quantity for a project-specific quotation.

For importers, distributors, lighting brands and project buyers.

Two white LED strip modules with red and black power wires and plug connectors, laid diagonally on a white background, ready for mounting

MANUFACTURER

OEM & ODM

FAST DELIVERY

QUALITY CONTROL

LOW MOQ

B2B SERVICE

Backlight or Edge-Lit: Start with the Light-Box Structure

Backlight LED strips sit behind the illuminated face. Edge-lit bars sit along the frame edges. Choose the optical layout around the available space and face construction, then verify the result with a representative sample.

Selection factor Backlit LED strips Edge-lit LED bars

Installation position

Behind the face, distributed across the back of the light box.
Along one or more frame edges, facing inward.

Light path

From the back of the cavity toward the illuminated face.
Across the cavity or into a compatible light-guide design, as specified for the product.

Layout information needed

Usable depth, bar positions, face material and diffusion layers.
Distance between illuminated edges, mounting orientation and any light-guide details.

What to check in a sample

Visible LED points, shadows, brightness variation and the finished appearance.
Bright edges, a dim center, optical alignment and the finished appearance.

There is no universal bar spacing or minimum depth for every light box. Panel size, material transmission, diffusion and internal surfaces all affect the result.

Explore the Backlight Strips Range

Review the two current product families below. Use each product page to identify the model and configuration you want to discuss; confirm the final specification against the quotation and approved product documents.

Showing all 2 results

  • Two white LED strip light rails labeled 'DC12V' with dimming knobs, shown diagonally side by side on a black background (informative product image).
    LED Backlit Bars

    2835 Backlight LED Strip

    Our 2835 backlight LED strip is engineered for professional light box and architectural lighting projects. Featuring advanced circular cup lens technology with 170° wide beam angle, it delivers perfectly uniform, shadowless illumination across the entire light box, even for ultra-thin 3-5cm profiles.
    Built with premium SMD2835 LED chips and high-thermal-conductivity aluminum PCB, it offers 1500lm/m high brightness at 12W/m low power consumption, with a rated lifespan of 50,000 hours. CE/RoHS certified, every batch undergoes rigorous aging testing before shipment, backed by our 3-5 year manufacturer warranty and full OEM/ODM customization support.

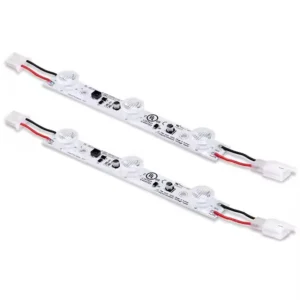

  • led edge-light strip/light box light source,nphis®led hard light strip
    LED Backlit Bars

    edge-lite lens led strip

    Precision Edge Light Lighting for Ultra-Slim Lightbox Solutions

    Our Edge Light Lighting bars are engineered for side-lit applications, allowing for extremely thin lightbox designs with perfectly even illumination. NPHIS uses optical lens technology to project light across the entire panel surface.

    Technical Parameters:

    • LED Type: High-efficiency Side-view SMD

    • Lens Angle: Specialized 1545° or 1060° optics

    • Thickness: Compatible with ultra-slim frames

    • Input: DC 12V/24V

    Core Advantages:

    • Cost Efficiency: Requires fewer LEDs compared to back-lit solutions.

    • Perfect Uniformity: No shadows or bright spots on the fabric or acrylic surface.

    • Easy Maintenance: Mounted on the frame edge for quick access.

    Applications:

    Widely used in retail poster frames, metro station lightboxes, and exhibition display stands.

Three Inputs That Make Product Selection More Useful

A product name alone is not enough to define the lighting layout. Share the following information before requesting a recommendation or comparing quotations.

Dimensions and Available Depth

Provide the illuminated width and height, usable internal depth, single- or double-sided construction, and any restrictions on mounting positions. Include a drawing or a clear photograph of the frame if available.

Face Material and Lighting Target

Identify the fabric, acrylic or other translucent face, its thickness, and any diffuser or light-guide layers. Describe the desired color appearance and brightness. Include a numerical target only when the measurement method and viewing conditions are defined.

Power and Connection Requirements

State the proposed supply voltage, driver location, cable route and dimming requirements. Confirm the chosen bar's input, power demand and connection limits before ordering. Include drivers, wiring and accessories in the quotation scope where needed.

For a new face material or layout, check a representative assembly before approving the production specification. A layout that works with one material may not give the same appearance with another.

Review the Documents for the Product You Plan to Order

Use the catalogue for an overview. For a specific order, request the model's datasheet and the installation information relevant to your layout. Agree on the revision and configuration before production approval.

Product Specification

Confirm the model, dimensions, input voltage, power, color specification and supplied accessories.

Layout and Wiring Information

Review mounting orientation, connection limits, power-feed locations and any required drivers or controls.

Applicable Test and Compliance Documents

Identify the documents required for your destination market and check their product scope against the exact configuration being ordered.

Match the Light Source to the Display Construction

For advertising light boxes and illuminated displays and Backlight stone, start with the face material and the available mounting space. Compare a backlit layout with an edge-lit layout before finalizing the light source. If the project calls for a sheet-format source instead, review our separate LED light sheet range.

Backlight Strip Procurement Questions

For further inquiries regarding custom backlight strips, please click the button below to contact our engineering team.

Should I choose backlight strips or edge-lit bars?

Start with the frame construction. Backlit bars mount behind the face; edge-lit bars mount along the edges. Share the dimensions, available depth, face material and any light-guide layers so the optical layout can be reviewed. Verify the appearance in a representative assembly before approving the specification.

There is no single depth or spacing that applies to every bar and panel. The model’s optics, panel dimensions, material transmission and diffusion layers affect the layout. Request guidance for the selected model and check the proposed arrangement with your actual face material.

Match the power supply to the selected bar’s specified input and total connected load. Review cable lengths, connection limits, power-feed locations and control requirements together. Confirm whether the quotation includes drivers, connectors and wiring; do not assume that these items are included. For this project, it is recommended to use higher-quality Mean Well power supplies.

Send the required dimensions, color specification, connection arrangement and estimated quantity. Feasibility depends on the selected product and may require a drawing or sample review. Treat requested changes as open requirements until they are confirmed in the quotation and approved specification.

Request a current datasheet for the exact model and configuration, together with the documents required by your market or project. Check the covered product, test scope and document revision, and confirm that the configuration being ordered is within that scope.

Provide the application, illuminated dimensions, usable depth, single- or double-sided construction, face material, preferred product, color and control requirements, quantity and destination. Add drawings or reference photographs where available, and identify which drivers and accessories you need included.

Certifications & compliance

ISO 9001

Quality management system

CE Marking

Available for EU export

LM80 Maintenance

Long-term LED light decay verification

REACH Compliant

SVHC declaration available, traceable raw material

Rigorous Product Testing & Quality Control

Every DMX512 RGBW Pixel Neon Flex we manufacture undergoes strict electrical, waterproof, aging, signal transmission, and color consistency tests before shipment. This ensures stable DMX512 addressable control, reliable outdoor IP68 performance, accurate RGBW effects, and long-term durability for façade, signage, landscape, and commercial lighting projects.

Send Your Light-Box Requirements

Tell us what you are building and which bar family you are considering. The project information below helps define the configuration and scope to be quoted.

Use the message field on the quotation page to include these details.

  • Application and illuminated dimensions
  • Usable depth and single- or double-sided construction
  • Face material and any diffuser or light-guide layers
  • Preferred bar family, color and control requirements
  • Supply, drivers, wiring and accessories needed
  • Order quantity and destination
