24V CCT Tunable White Flexible LED Light Sheet for Uniform Backlighting
A 480 × 240 mm SMD2835 CCT LED light sheet designed for indoor decorative and indirect backlighting. Select the required white-light specification for translucent stone, stretch ceilings, advertising light boxes, display cabinets, furniture and architectural features.
- CCT LED light sheet with 400 SMD2835 LEDs
- 480 × 240 mm, DC24V, 24W
- White-light specifications: 2900–3100K, 3900–4200K or 6300–6700K
- CRI 80+ or CRI 90+ option
- Maximum recommended continuous connection: 10 sheets
- Indoor indirect backlighting; confirm final CCT configuration before sample approval
LED LIGHT SHEET
Product Overview
Dual-Color CCT Flex LED Sheet for Light Boxes, Translucent Stone & Decorative Backlighting
Unlike edge-lit LED strips, this CCT flexible LED light sheet distributes SMD2835 LEDs across the back of a translucent surface to create more even illumination. The 480 × 240 mm panel format helps lighting brands, contractors and project procurement teams calculate panel quantity, power branches and installation access before production.
The JS-DC24V-2835-CCT-400D-ZY220 is designed for indoor decorative and indirect lighting projects, including advertising light boxes, translucent stone, ceilings, display cabinets, jewellery counters, hotel interiors, furniture, wine cabinets and shoe cabinets.
Specify the required white-light version according to the project brief: warm white, neutral white or cool white. For CCT control projects, confirm the required controller, wiring method and final light appearance with a sample before mass production.
Source-Backed Product Specifications
Values below are based on the supplied JS-DC24V-2835-CCT-400D-ZY220 specification dated 20 July 2023. Confirm the final electrical rating, CCT combination, dimming/control method and commercial requirements before sample approval or mass production.
Model |
JS-DC24V-2835-CCT-400D-ZY220 |
Product type |
Dual-color CCT SMD2835 flexible LED light sheet |
Sheet size |
480 × 240 mm |
LED quantity |
400 pcs SMD2835 LEDs |
Input voltage |
DC24V |
Current |
1A / sheet |
Power |
24W / sheet |
Luminous flux |
2572 lm / sheet |
CRI options |
CRI 80+ / CRI 90+ |
CCT options |
2900–3100K / 3900–4200K / 6300–6700K |
Cutting grid |
20 mm marked lines |
Installation |
Indoor indirect backlighting |
Dimming |
Dimmable with a compatible CCT controller |
Maximum continuous connection |
10 sheets recommended |
* The source specification labels the current, power and luminous-flux values as “per metre.” Confirm the final approved rating before system sizing, quotation or shipment.
Maximum 10 Sheets in One Connected Run
Multiple CCT LED sheets may be connected to a suitably rated DC24V constant-voltage power supply. For centralized power distribution, connect the panel input leads in parallel and use appropriately sized cable for the wiring distance and total load.
When the layout exceeds 10 continuously connected sheets, add a separate power supply or additional parallel power injection. Plan the CCT controller capacity, wire routing, voltage drop and service access before installation.
10 sheets x 24W
24W 240W connected load
This calculation is the nominal connected LED load only. Select the final power supply and controller after considering cable loss, control channels, operating conditions and the project’s required safety margin.
Packaging & Handling
Storage temperature: -20 to 40°C
Light sheet type |
480 × 240 mm |
Carton quantity |
40 sheets / carton |
Net weight |
7 kg / carton |
Gross weight |
7.5 kg / carton |
Carton dimensions |
53.2 x 27.5 x 28 cm |
Warranty |
5 years from shipment for indoor use |
Build a Complete CCT Backlighting System
Matching Products
A stable CCT backlighting installation requires the LED light sheet, a correctly sized DC24V constant-voltage power supply, a compatible dual-color CCT controller and properly planned connection cables.
Size the DC24V power supply according to the total LED load, control method, cable length, voltage drop and required design margin.
Compare the single-color flexible LED light sheet option for projects that require a fixed CCT rather than CCT white-light adjustment.
Dual-Color CCT LED Controller
Use a compatible CCT controller to adjust brightness and manage the selected warm-to-cool white-light configuration.
Share These Details for a Faster CCT LED Sheet Quotation
OEM & Wholesale RFQ Checklist
NPHIS supports OEM / ODM requirements for flexible LED backlighting projects. Provide the details below so the panel layout, CCT configuration, power plan and quotation can be evaluated accurately.
Application |
Light box, translucent stone, ceiling, display cabinet, furniture or other indoor backlighting |
Backlit material |
Material type, finish, thickness, colour and light-transmission level |
Illuminated area |
Overall width, height, shape and required panel layout |
Installation depth |
Distance from the LED sheet to the finished surface |
Light requirement |
Required CCT specification, CRI 80+ or CRI 90+, brightness and dimming requirement |
Order detail |
Sample quantity, estimated bulk quantity and repeat demand |
Project logistics |
Destination country and required delivery date |
Engineering files |
Drawing, wiring position and available power location |
Control requirement |
CCT controller type, control method, zones and wiring requirement |
Get a FREE Estimate
Collaborate with backlighting experts to bring brilliance to your projects.
PRODUCT FEATURES
Why Choose Our Flexible LED Light Sheet
Review the actual material, installation depth, CCT requirement, wiring route and controller compatibility before project approval. For light-sensitive surfaces such as translucent stone or premium displays, approve the final appearance with a physical sample.

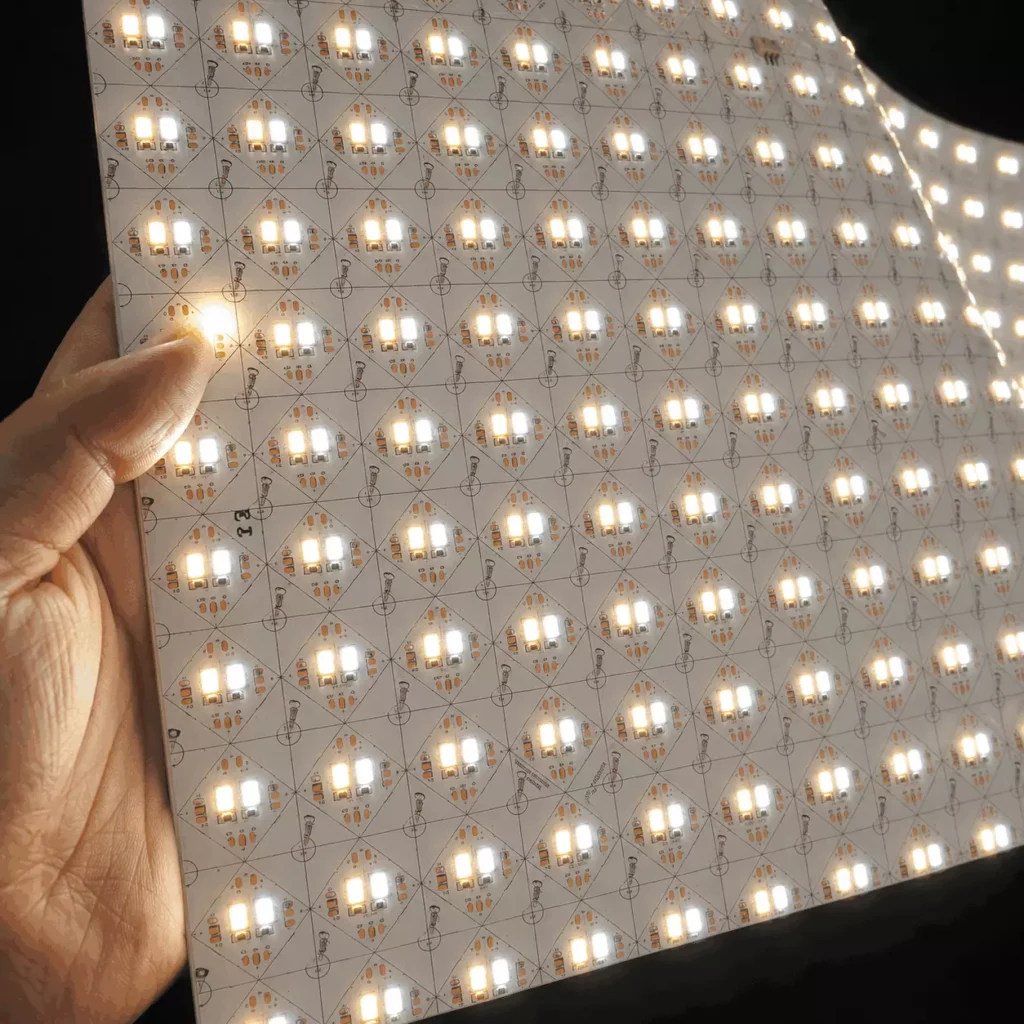

Uniform Full-Surface Backlighting
The 480 × 240 mm sheet distributes 400 SMD2835 LEDs across the backlit area. Compared with perimeter-only lighting, a full-surface panel layout helps create a more even backlighting effect behind suitable translucent materials.
- 400 pcs SMD2835 LEDs per sheet
- 480 × 240 mm flexible sheet format
- Nominal luminous flux: 2572 lm/sheet
- Suitable for indoor indirect backlighting layouts

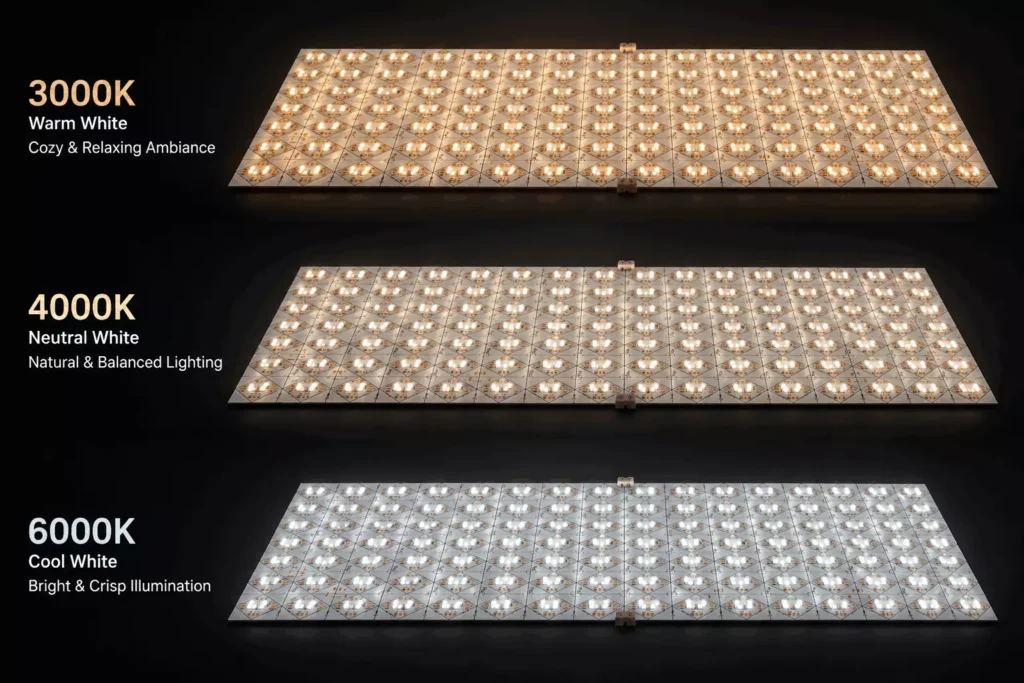

Three White-Light Specifications for Project Selection
Choose the suitable white-light specification for the intended visual environment. The supplied product specification lists warm white, neutral white and cool white versions. Confirm the required CCT configuration and final light appearance behind the actual finished material before production.
- Warm white: 2900–3100K
- Neutral white: 3900–4200K
- Cool white: 6000–6500K
- CRI 80+ or CRI 90+ option

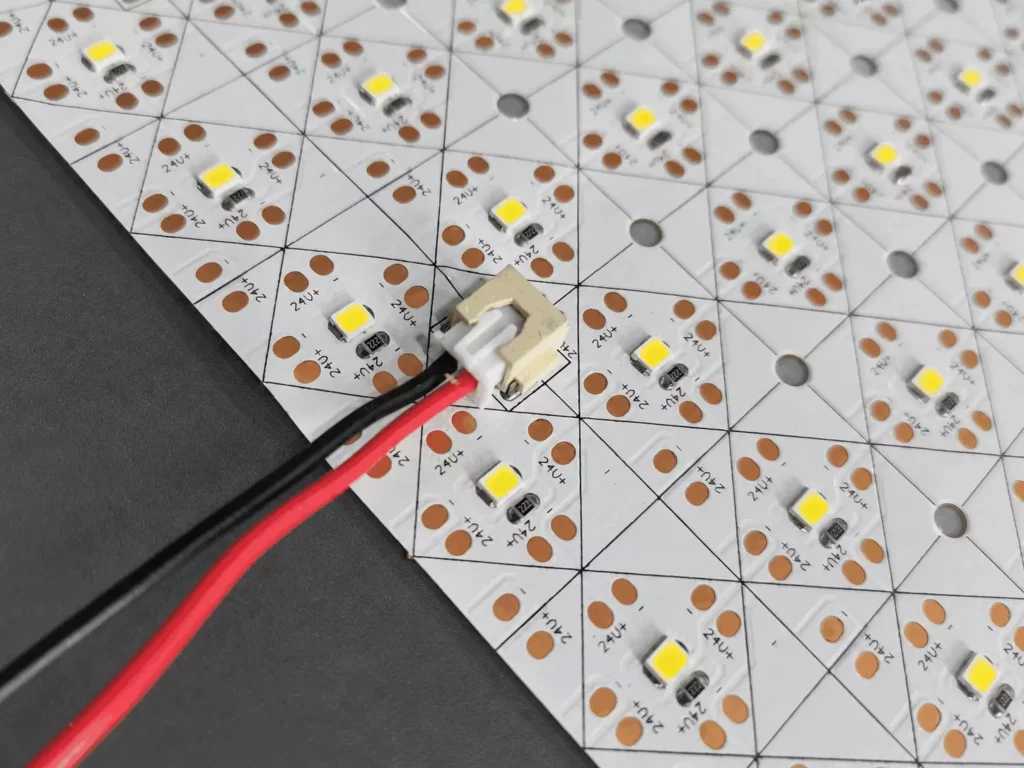

DC24V Parallel Wiring for Project Layouts
This LED light sheet uses DC24V constant-voltage input. For centralized power supply layouts, connect panel input leads in parallel and select wire sizes according to the connected load and cable distance.
- DC24V constant-voltage input
- Nominal current: 1A per specified unit sheet
- Nominal power: 24W per specified unit sheet
- Add parallel power injection for larger installations
Flexible Layout for Indoor Decorative Surfaces
The flexible sheet is designed for indoor decorative and indirect lighting. Secure the panel through the designated mounting points, avoid sharp folds and preserve access to power connections and controllers for future servicing.
- Suitable for light boxes, ceilings and translucent decorative surfaces
- Install with screws through designated mounting points
- Avoid forceful pulling, stretching and sharp bending
- Keep the LED surface free from pressure and sharp tools
Plan Up to 10 Sheets Per Continuous Connection
Plan each connected run according to the project load and wiring distance. The maximum recommended continuous connection is 10 sheets; use an additional power supply or parallel power injection for longer installations.
- Maximum recommended continuous connection: 10 sheets
- Nominal connected load for 10 sheets: 240W
- Use a correctly sized DC24V power supply
- Confirm voltage drop and controller capacity before installation
PROJECT PLANNING
Project Selection & Procurement Comparison
Use the project surface, material, drawing and electrical inputs to prepare a useful sample request and B2B quotation.
| Selection Input | Kitchen Island / Translucent Stone | Stretch Ceiling | Advertising Light Box | Custom Indoor Display |
|---|---|---|---|---|
CCT Direction |
Choose 3000K, 4000K or 6500K after reviewing the stone tone. |
Specify the white-light direction for the finished ceiling film. |
Match CCT to the graphic and surrounding retail lighting. |
State the target white-light appearance for the display surface. |
CRI Option |
Select CRI 80+ or 90+ for the material and project expectation. |
Confirm whether CRI 80+ or 90+ is required. |
Identify the requested CRI option for color-sensitive graphics. |
Include the CRI option in the display specification. |
Installation Depth Input |
Provide the finished stone thickness and available cavity depth. |
Provide the ceiling system depth and access position. |
Provide the box depth and graphic-face construction. |
Provide the finished display depth and diffuser details. |
Material Sample Approval |
Approve a sheet sample behind the actual translucent stone. |
Review a sample with the selected ceiling film. |
Check a sample with the approved graphic and face material. |
Test the proposed material stack before production approval. |
Cutting & Layout |
Send the backlit shape and cut only along marked 20 mm lines. |
Send the ceiling plan and marked cutting layout. |
Provide the box drawing and cut layout for the illuminated area. |
Provide the display drawing, panel layout and cut lines. |
Power Planning |
State the sheet count, cable path and DC24V power location. |
Identify branches, cable routes and accessible DC24V power. |
Plan DC24V supply, wiring distance and connected load. |
Confirm the power position, routing and connected load. |
Service Access |
Identify access to connections after the stone is installed. |
Show how connections remain accessible above the ceiling. |
Keep service access for the power supply and connections. |
Define access for serviceable wiring and power components. |
Drawing Required |
Provide dimensions, joints, cable exits and installation section. |
Provide ceiling plan, section and power-feed locations. |
Provide face size, box section and wiring positions. |
Provide overall dimensions, material stack and wiring plan. |
RFQ Inputs |
Share quantity, destination, sample need and project timing. |
Share area, sheet quantity, destination and sample request. |
Share box quantity, destination and requested sample scope. |
Share display quantity, destination and required documentation. |
Required installation depth and finished appearance must be tested with the actual backlit material.
PROJECT USE
Application Scenarios
Perfect for a wide range of lighting and backlit applications

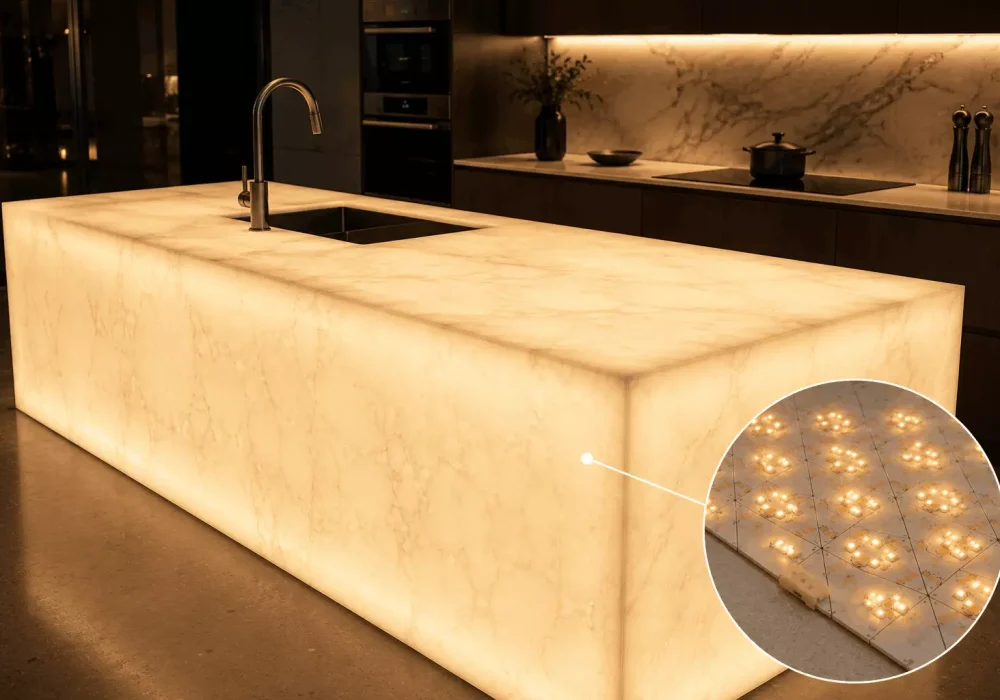

Kitchen Island & Translucent Stone
Plan a uniform backlight field behind suitable translucent stone and decorative surfaces used on kitchen islands, bar fronts and backsplashes.
Stretch Ceiling Backlighting
Create indoor backlighting layouts behind stretch ceilings after checking the ceiling material, cavity depth and service access.
Advertising Light Boxes
Illuminate indoor graphics, retail signage and display faces where a full-surface sheet layout supports the project design.
OEM / ODM Service
Coordinate product options, drawings, sample approval, documentation and delivery inputs around the project requirement.
CCT & CRI Selection
Confirm the requested nominal CCT and CRI option for the project brief.
Sheet Layout & Cutting Plane
Review the drawing and plan cuts only on the marked 20 mm grid.
Wiring & Connector Planning
Coordinate connection points, cable paths and service access around the final layout.
DC24V Power Selection
Size the DC24V power plan for the connected load, cable loss and design margin.
Packaging & Private Label
Discuss packing and private-label requirements for the quoted order.
Certifications
CE, RoHS standard. UL, ETL, TUV available on request for specific markets.
Flexible MOQ
Samples from 10pc. Bulk orders from 100pc. No rigid MOQ for established partners.
Fast Delivery
Standard orders ship in 7–15 days. Express production available for urgent projects.
Inspire Creative Lighting With NPHIS !
Why NPHIS LED
Your reliable LED strip partner since 2012
10+ Years Manufacturing
Over a decade of LED strip production experience with a dedicated R&D team, ensuring consistent quality and innovation.
Full OEM / ODM Capability
From PCB design to final packaging — we handle every step of custom product development for your brand.
Strict Quality Control
Every product undergoes 10 production process checks and a 12-hour aging test before shipment.
Competitive Factory Pricing
Direct factory pricing with no middlemen. Volume discounts available for distributors and project buyers.
Fast Response & Support
Our sales engineers respond within 24 hours. Dedicated account managers for long-term partners.
Global Shipping & Compliance
Experienced in international logistics and export documentation. CE, RoHS, and UL compliance support.
Rigorous Product Testing & Quality Control
The order workflow can include project requirement review, incoming material checks, production inspection, a lighting check, packing review and shipment documentation.
Confirm the inspection and document requirements for the quoted configuration before order release.
Certification
We always strive to provide our customers with the best possible customer experience when working with us. In addition to our excellent customer service, we want our customers to be confident that their single color led tape lights are safe and of the highest quality. To ensure the best performance, all our single color led tape lights have passed CE, RoHS certificates.
BUYER QUESTIONS
Frequently Asked Questions (FAQs)
Flexible LED light sheet: Expert Q&A
01. What is the difference between a CCT tunable LED light sheet and a single-color LED light sheet?
A single-color LED light sheet is fixed at one color temperature (e.g., 3000K warm white) and cannot be adjusted after installation. A CCT tunable white LED light sheet uses dual-color SMD LEDs — typically a warm white chip and a cool white chip on the same circuit — allowing the output color temperature to be adjusted via a compatible CCT controller. NPHIS’s JS-DC24V-2835-CCT-400D-ZY220 supports three factory CCT configurations (2900–3100K / 3900–4200K / 6300–6700K), making it suitable for projects where the client needs to match different ambient lighting conditions, such as hotel lobbies, retail display cabinets, or translucent stone feature walls. If your project requires a fixed CCT without adjustment, our single-color flexible LED light sheet is a more cost-effective option.
02. Can the LED light sheet be cut to a custom size on site?
Yes. The NPHIS CCT flexible LED light sheet has marked cutting lines at every 20 mm interval, allowing on-site trimming to fit irregular or non-standard installation areas. Cuts must only be made along the designated cut lines to maintain circuit integrity. Cutting between marked lines will damage the LED circuit and void the warranty. For projects requiring a specific pre-cut size or shape, NPHIS supports OEM custom-cut dimensions — please provide your required panel dimensions in the RFQ form and we will confirm feasibility before sampling.
03. How many sheets can be connected in one run, and how should I size the power supply?
The maximum recommended continuous connection is 10 sheets per power branch (10 × 24W = 240W nominal LED load). Beyond 10 sheets, voltage drop across the cable run will cause visible brightness inconsistency toward the far end of the chain. For larger installations, add a separate DC24V power supply or inject power at additional points along the layout. When selecting your power supply, apply a minimum 20–25% safety margin above the calculated LED load to account for cable resistance, ambient temperature, and control channel overhead. For example, a 10-sheet run at 240W nominal load should be served by a ≥300W rated DC24V constant-voltage power supply. Contact NPHIS for a system sizing recommendation if your project exceeds 10 sheets.
04. What CCT controller is compatible with this light sheet, and how is dimming achieved?
The NPHIS CCT tunable light sheet requires a dual-channel (2-channel) constant-voltage CCT controller operating at DC24V. The controller independently drives the warm-white and cool-white LED channels on the sheet to blend the output color temperature. Common control interfaces include RF remote, 2.4GHz wireless, 0–10V, DALI, or DMX512 — confirm your required control protocol before ordering. The sheet is not compatible with single-channel PWM dimmers designed for single-color LED strips. If you are integrating this product into a smart home or building automation system, share your control protocol requirements with NPHIS at the RFQ stage so we can recommend a matched controller.
05. What applications is this CCT flexible LED light sheet best suited for?
The NPHIS CCT flexible LED light sheet is designed for indoor indirect backlighting applications where uniform, adjustable white light is required across a translucent or diffused surface. Proven application categories include:
- Translucent stone & onyx panels — hotel lobbies, feature walls, reception desks
- Stretch ceilings & fabric light boxes — retail, hospitality, exhibition spaces
- Advertising light boxes — menu boards, brand displays, wayfinding signage
- Display cabinets & jewellery counters — CRI 90+ option recommended
- Furniture backlighting — wine cabinets, shoe cabinets, wardrobe panels
- Architectural ceiling coves — indirect ambient lighting in commercial interiors
This product is rated for indoor use only and is not suitable for outdoor, wet, or high-humidity environments without additional IP protection enclosures.
06. What is the CRI, and does it matter for my project?
CRI (Color Rendering Index) measures how accurately a light source renders the true colors of objects compared to natural daylight (CRI 100). NPHIS offers two options:
| Option | CRI | Best For |
|---|---|---|
| Standard | CRI 80+ | Light boxes, signage, architectural coves |
| High CRI | CRI 90+ | Jewellery, cosmetics, food display, retail fashion |
For general backlighting of translucent stone or stretch ceilings, CRI 80+ is sufficient. For retail display cabinets, jewellery counters, or any application where product color accuracy is critical to purchase decisions, CRI 90+ is strongly recommended. Specify your CRI requirement at the sampling stage, as CRI 80+ and CRI 90+ are separate SKUs and cannot be mixed in the same production run.
07. What is the minimum order quantity (MOQ), and do you support samples before bulk orders?
NPHIS is a factory-direct OEM/ODM manufacturer. We support sample orders prior to bulk production — this is strongly recommended for CCT projects to confirm the final light appearance, CCT blending performance, and color consistency before committing to a production run. For bulk orders, please share your estimated quantity, project timeline, and destination country in the RFQ form and our team will respond with MOQ, lead time, and pricing within one business day. For repeat procurement programs or distributor partnerships, NPHIS can discuss blanket order arrangements and stocking agreements.
08. How do I ensure color consistency across multiple batches for a chain store or large project?
Color consistency is one of the most critical quality requirements for commercial chain store and hospitality projects. NPHIS controls this through LED binning management — all SMD2835 LEDs used in a production run are sourced from the same bin code to ensure the warm-white and cool-white channels maintain consistent output ratios across sheets and cartons. For large projects or repeat orders, we recommend:
- Locking the bin code at the first approved sample stage
- Requesting a batch test report (including CCT, lumen output, and forward voltage data) with each shipment
- Retaining 5–10% buffer stock from the original production run for future replacement panels
Inform NPHIS at the RFQ stage if your project spans multiple phases or requires guaranteed batch-to-batch consistency, and we will flag this in the production order.
09. What certifications does the product carry, and is it suitable for projects in the EU or North America?
Please contact NPHIS directly for the current certification status of this product, including CE, RoHS, and any applicable regional compliance documentation. For projects in the EU, confirm CE marking and RoHS compliance. For North American projects, confirm whether UL or ETL listing is required by the local authority having jurisdiction (AHJ) or the specifying engineer. NPHIS supports OEM certification arrangements for qualified volume buyers — if your project or distribution channel requires specific certifications, raise this requirement at the RFQ stage so it can be factored into the product specification and pricing.
10. What is the warranty, and what after-sales support does NPHIS provide?
The NPHIS CCT flexible LED light sheet carries a 5-year warranty from the date of shipment for indoor use, covering manufacturing defects under normal operating conditions. The warranty applies when the product is installed within the specified parameters: DC24V input, maximum 10-sheet continuous connection, indoor indirect use, and storage/operating temperatures within the rated range (-20°C to 40°C storage). Warranty claims resulting from incorrect voltage input, outdoor installation, water ingress, or physical damage caused during installation are excluded. NPHIS provides direct factory after-sales support — for warranty claims or technical issues, contact us with the order reference, batch number, and a description of the fault.
Ready to Get Started?
Collaborate with NPHIS backlighting specialists to evaluate your panel layout, CCT requirement, control method and DC24V power plan for indoor decorative lighting projects.
