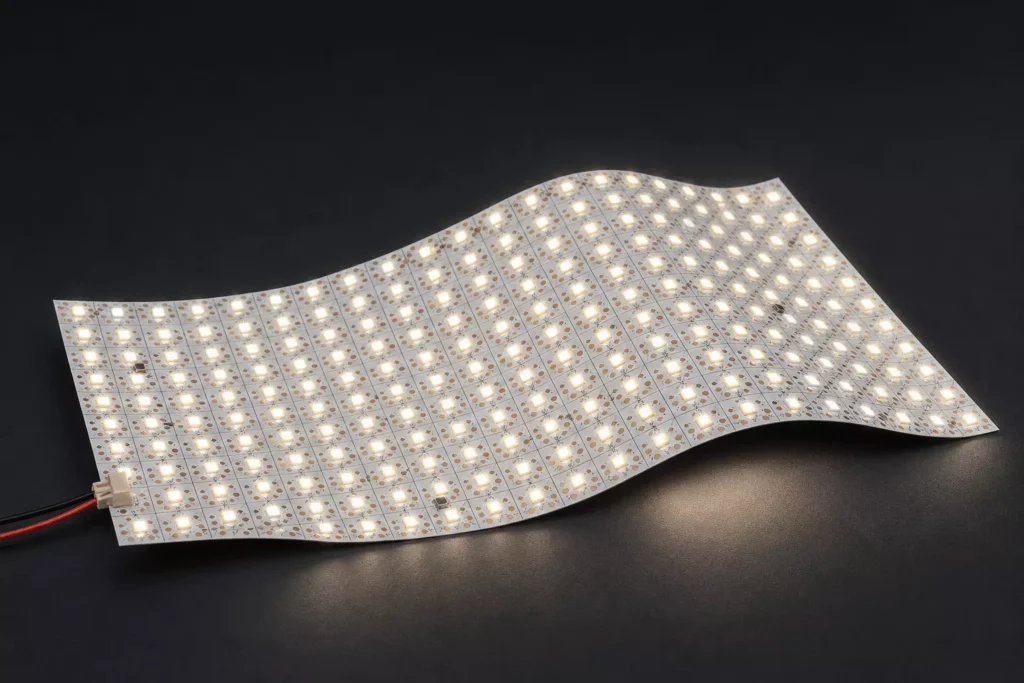

24V Cuttable Flexible LED Light Sheet for Uniform Backlighting
A 500 x 240 mm SMD2835 LED light sheet for translucent stone, kitchen island backsplashes, stretch ceilings and advertising light boxes. Build a project layout with 3000K, 4000K or 6500K white light and cut only along the marked 20 mm grid.
- Uniform Full-Surface Backlighting
- Cut only along marked 20 mm lines
- 500 x 240 mm, 24W / sheet, 2370 lm / sheet
- 3000K / 4000K / 6500K nominal and CRI 80+ / 90+
- Indoor indirect backlighting only; sample approval for critical appearance
LED LIGHT SHEET
Product Overview
Single Color Flex LED Sheet for Stretch Ceilings, Light Boxes & Translucent Stone
Unlike a single strip placed around an edge, a flexible LED light sheet distributes LEDs across the back of a translucent surface. The repeatable 500 x 240 mm module helps project teams estimate sheet quantity, wiring branches and service access before installation.
Verified specifications support lighting brands, project contractors, wholesalers and procurement teams reviewing samples, layouts and quotations for indoor backlighting projects.
Source-Backed Product Specifications
Values are taken from the supplied JS-DC24V-2835-300D-ZY120 specification. Confirm any requested customization before sample or mass production.
Model |
JS-DC24V-2835-300D-ZY120 |
Product type |
Single-color SMD2835 flexible LED light sheet |
Sheet size |
500 x 240 mm |
LED quantity |
120 pcs SMD2835 |
Input voltage |
DC24V |
Current |
1A / sheet |
Power |
24W / sheet |
Luminous flux |
2370 lm / sheet |
CRI options |
CRI 90+ |
CCT options |
3000K / 4000K / 6500K nominal |
Cutting grid |
20 mm marked lines |
Installation |
Indoor indirect backlighting |
Maximum 10 Sheets in One Connected Run
Multiple sheets may be planned around a suitably rated DC24V constant-voltage supply. Add a supplementary feed or separately designed parallel branch when the layout exceeds the stated connected-run limit.
10 sheets x 24W
24W 240W connected load
This is the LED load before cable loss, operating conditions and the project’s required design margin are considered.

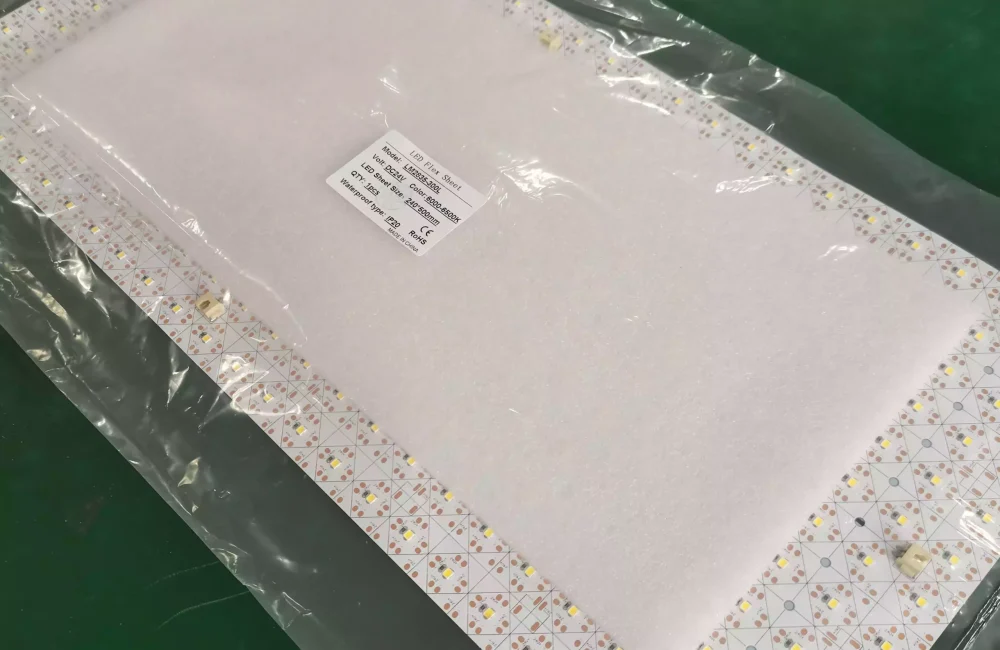

Packaging & Handling
Storage temperature: -20 to 40°C
Light sheet type |
240 x 500 mm |
Carton quantity |
40 sheets / carton |
Net weight |
7 kg / carton |
Gross weight |
7.5 kg / carton |
Carton dimensions |
53.2 x 27.5 x 28 cm |
Warranty |
5 years from shipment for indoor use |
Matching Products
Multiple sheets may be planned around a suitably rated DC24V constant-voltage supply. Add a supplementary feed or separately designed parallel branch when the layout exceeds the stated connected-run limit.
24V Constant-Voltage Power Supply
Size the supply for the total connected load, wiring distance, operating conditions and the project’s required design margin.
Single-Color Dimmer
Add brightness control where commissioning or day-to-night adjustment is part of the project brief.
Connectors & Extension Cable
Plan orderly parallel branches and accessible connections around the final sheet layout and power-supply position.
OEM & Wholesale RFQ Checklist
NPHIS is a professional backlight strip factory that supports OEM non-standard customization.
Application |
Stone, ceiling, light box or other indoor backlighting |
Backlit material |
Material type, finish, thickness and light transmission |
Illuminated area |
Overall width, height, shape and panel layout drawing |
Installation depth |
Distance from the LED sheet to the finished surface |
Light requirement |
3000K, 4000K or 6500K; CRI 80+ or 90+ |
Order detail |
Sample quantity, estimated bulk quantity and repeat demand |
Project logistics |
Destination country and required delivery date |
Engineering files |
Drawing, wiring position and available power location |
Get a FREE Estimate
Collaborate with backlighting experts to bring brilliance to your projects.
PRODUCT FEATURES
Why Choose Our Flexible LED Light Sheet
Review every product feature against the actual material, layout and electrical plan before project approval.

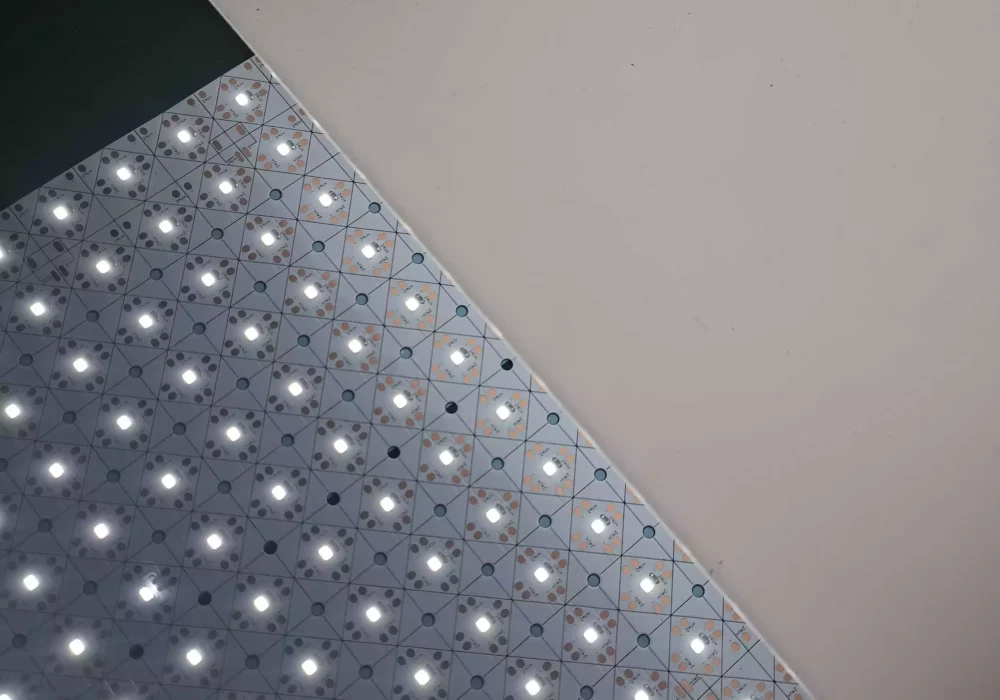

Uniform Full-Surface Backlighting

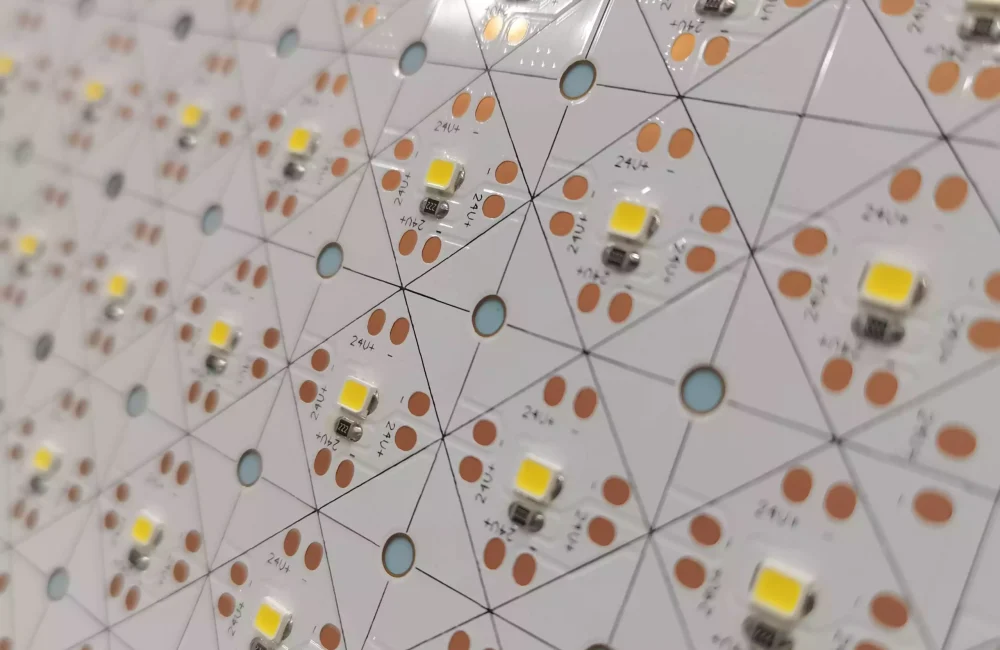

The 500 x 240 mm sheet distributes 120 SMD2835 LEDs across a backlit area. Confirm the material, cavity and layout with a project sample when light appearance is critical.
- 120 pcs SMD2835 LEDs per sheet
- 500 x 240 mm sheet format
- 2370 lm per sheet
Cuttable Along Marked 20 mm Lines
Plan the final outline and connection points before cutting. The sheet is cut only on its marked 20 mm lines so electrical components and conductors remain intact.
- Cut only along marked 20 mm lines
- Do not cut LEDs, resistors or conductors
- Confirm layout before cutting
Flexible Layout for Indoor Surfaces
Use the sheet as part of an indoor indirect-backlighting layout behind suitable translucent materials. Avoid sharp folds and coordinate fixing, wiring and service access with the finished surface.
- Indoor indirect backlighting only
- Plan fixing and service access
- Avoid sharp folds

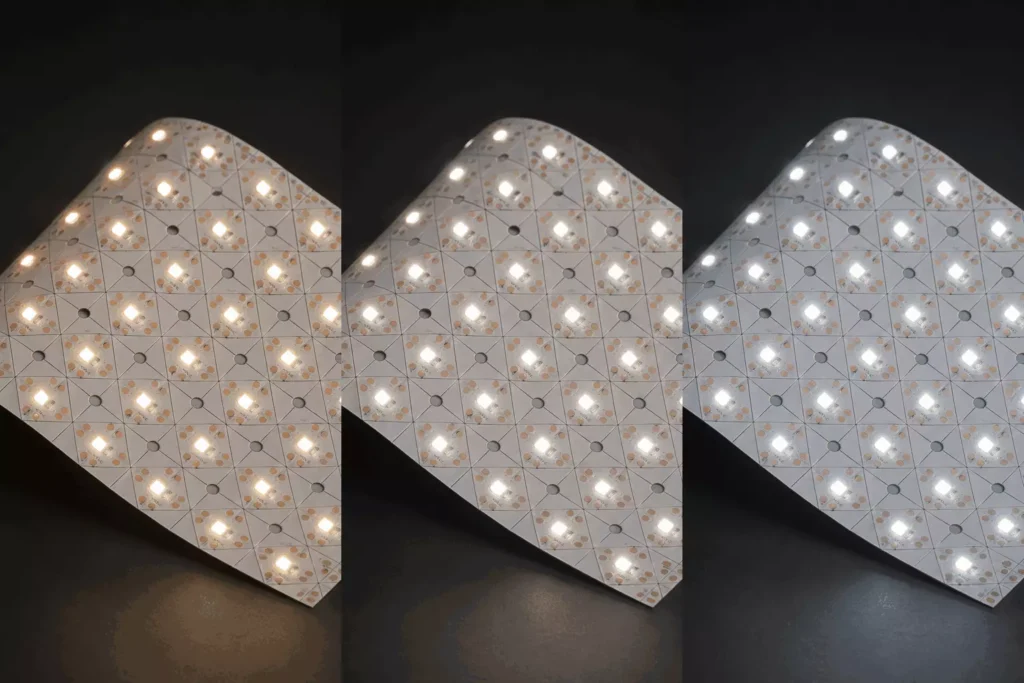

Three Project White-Light Options
Specify 3000K, 4000K or 6500K nominal CCT to suit the project brief. CRI 80+ and CRI 90+ are available options; approve appearance behind the actual material.
- 3000K, 4000K or 6500K nominal
- CRI 80+ or 90+ options
- Sample approval for critical appearance
DC24V Constant-Voltage Power Planning
Each sheet uses DC24V, 1A and 24W. Plan the power supply and cable routing for the connected load, cable loss and the project design margin.
- DC24V constant-voltage input
- 24W and 1A per sheet
- Maximum 10 sheets in one connected run
Designed for Shallow Indoor Backlighting
The flexible sheet supports layouts where the project team must work within a shallow indoor cavity. Determine the required installation depth from the actual material, layout and light appearance during sample review.
- 500 x 240 mm modular sheet
- Confirm installation depth with sample
- Dry indoor indirect backlighting
PROJECT PLANNING
Project Selection & Procurement Comparison
Use the project surface, material, drawing and electrical inputs to prepare a useful sample request and B2B quotation.
| Selection Input | Kitchen Island / Translucent Stone | Stretch Ceiling | Advertising Light Box | Custom Indoor Display |
|---|---|---|---|---|
CCT Direction |
Choose 3000K, 4000K or 6500K after reviewing the stone tone. |
Specify the white-light direction for the finished ceiling film. |
Match CCT to the graphic and surrounding retail lighting. |
State the target white-light appearance for the display surface. |
CRI Option |
Select CRI 80+ or 90+ for the material and project expectation. |
Confirm whether CRI 80+ or 90+ is required. |
Identify the requested CRI option for color-sensitive graphics. |
Include the CRI option in the display specification. |
Installation Depth Input |
Provide the finished stone thickness and available cavity depth. |
Provide the ceiling system depth and access position. |
Provide the box depth and graphic-face construction. |
Provide the finished display depth and diffuser details. |
Material Sample Approval |
Approve a sheet sample behind the actual translucent stone. |
Review a sample with the selected ceiling film. |
Check a sample with the approved graphic and face material. |
Test the proposed material stack before production approval. |
Cutting & Layout |
Send the backlit shape and cut only along marked 20 mm lines. |
Send the ceiling plan and marked cutting layout. |
Provide the box drawing and cut layout for the illuminated area. |
Provide the display drawing, panel layout and cut lines. |
Power Planning |
State the sheet count, cable path and DC24V power location. |
Identify branches, cable routes and accessible DC24V power. |
Plan DC24V supply, wiring distance and connected load. |
Confirm the power position, routing and connected load. |
Service Access |
Identify access to connections after the stone is installed. |
Show how connections remain accessible above the ceiling. |
Keep service access for the power supply and connections. |
Define access for serviceable wiring and power components. |
Drawing Required |
Provide dimensions, joints, cable exits and installation section. |
Provide ceiling plan, section and power-feed locations. |
Provide face size, box section and wiring positions. |
Provide overall dimensions, material stack and wiring plan. |
RFQ Inputs |
Share quantity, destination, sample need and project timing. |
Share area, sheet quantity, destination and sample request. |
Share box quantity, destination and requested sample scope. |
Share display quantity, destination and required documentation. |
Required installation depth and finished appearance must be tested with the actual backlit material.
PROJECT USE
Application Scenarios
Perfect for a wide range of lighting and backlit applications

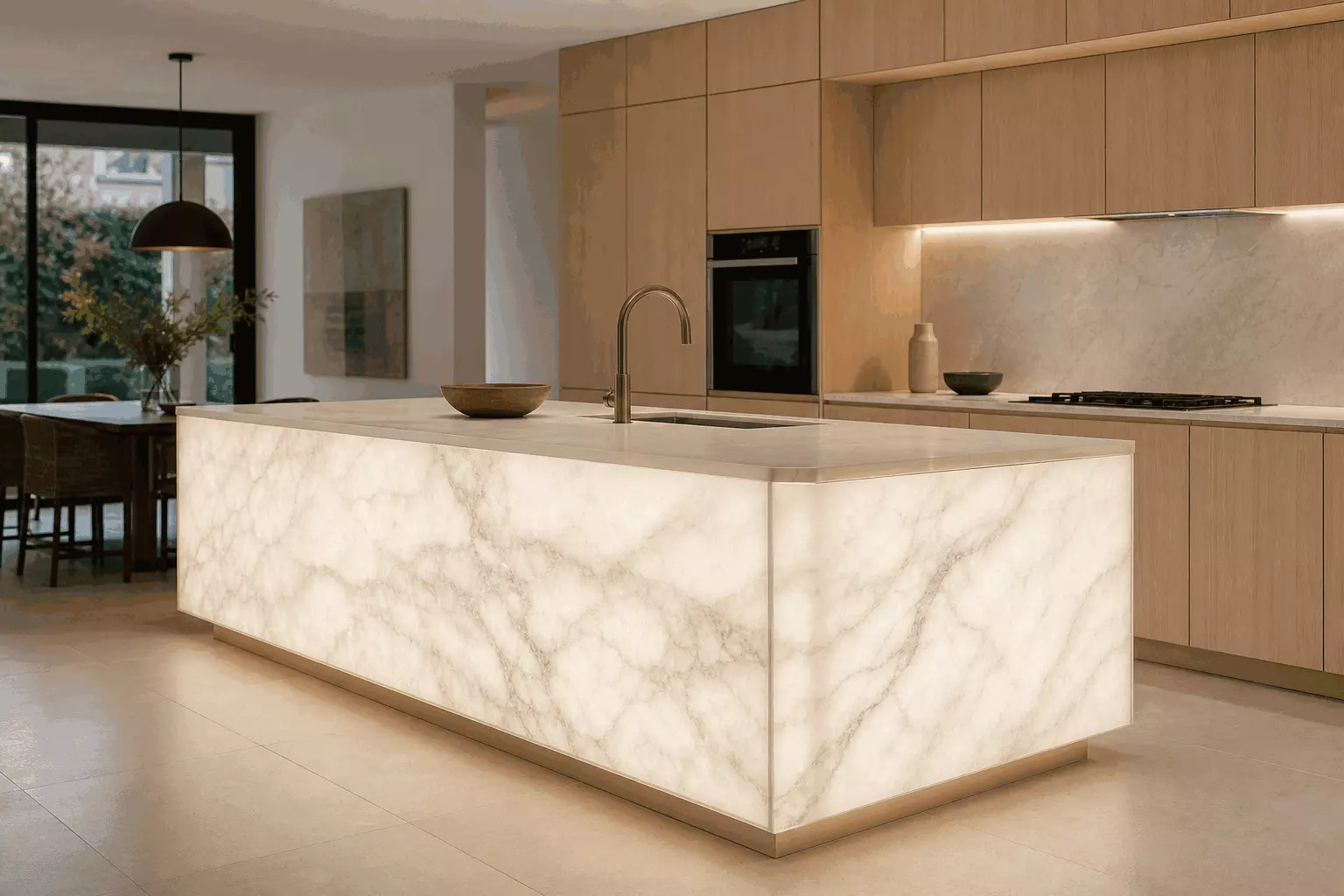

Kitchen Island & Translucent Stone
Plan a uniform backlight field behind suitable translucent stone and decorative surfaces used on kitchen islands, bar fronts and backsplashes.
Stretch Ceiling Backlighting
Create indoor backlighting layouts behind stretch ceilings after checking the ceiling material, cavity depth and service access.

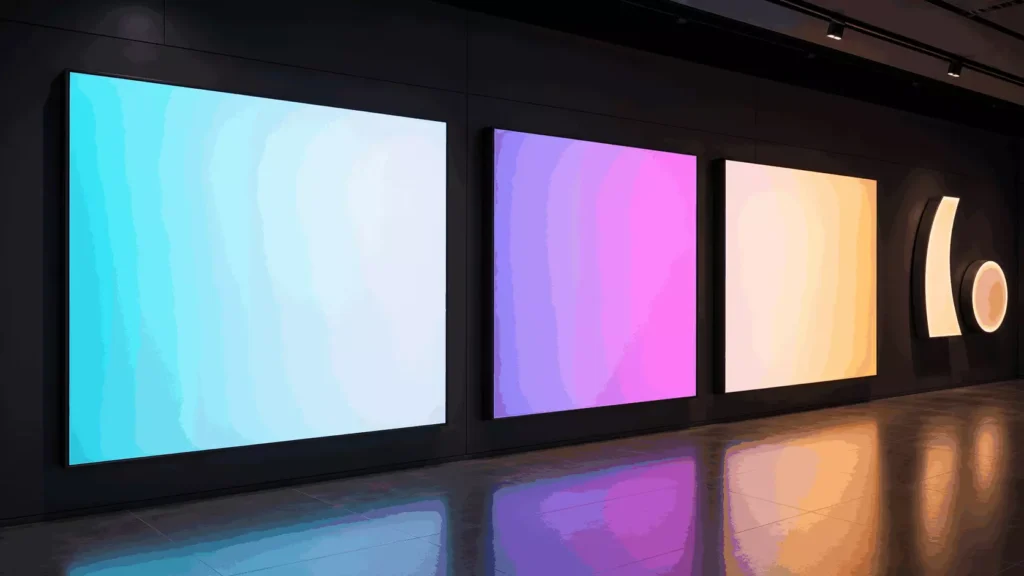

Advertising Light Boxes
Illuminate indoor graphics, retail signage and display faces where a full-surface sheet layout supports the project design.
OEM / ODM Service
Coordinate product options, drawings, sample approval, documentation and delivery inputs around the project requirement.
CCT & CRI Selection
Confirm the requested nominal CCT and CRI option for the project brief.
Sheet Layout & Cutting Plane
Review the drawing and plan cuts only on the marked 20 mm grid.
Wiring & Connector Planning
Coordinate connection points, cable paths and service access around the final layout.
DC24V Power Selection
Size the DC24V power plan for the connected load, cable loss and design margin.
Packaging & Private Label
Discuss packing and private-label requirements for the quoted order.
Certifications
CE, RoHS standard. UL, ETL, TUV available on request for specific markets.
Flexible MOQ
Samples from 10pc. Bulk orders from 100pc. No rigid MOQ for established partners.
Fast Delivery
Standard orders ship in 7–15 days. Express production available for urgent projects.
Inspire Creative Lighting With NPHIS !
Why NPHIS LED
Your reliable LED strip partner since 2012
10+ Years Manufacturing
Over a decade of LED strip production experience with a dedicated R&D team, ensuring consistent quality and innovation.
Full OEM / ODM Capability
From PCB design to final packaging — we handle every step of custom product development for your brand.
Strict Quality Control
Every product undergoes 10 production process checks and a 12-hour aging test before shipment.
Competitive Factory Pricing
Direct factory pricing with no middlemen. Volume discounts available for distributors and project buyers.
Fast Response & Support
Our sales engineers respond within 24 hours. Dedicated account managers for long-term partners.
Global Shipping & Compliance
Experienced in international logistics and export documentation. CE, RoHS, and UL compliance support.
Rigorous Product Testing & Quality Control
The order workflow can include project requirement review, incoming material checks, production inspection, a lighting check, packing review and shipment documentation.
Confirm the inspection and document requirements for the quoted configuration before order release.
Certification
We always strive to provide our customers with the best possible customer experience when working with us. In addition to our excellent customer service, we want our customers to be confident that their single color led tape lights are safe and of the highest quality. To ensure the best performance, all our single color led tape lights have passed CE, RoHS certificates.
BUYER QUESTIONS
Frequently Asked Questions (FAQs)
Flexible LED light sheet: Expert Q&A
01. Which applications suit this flexible LED light sheet?
This sheet is for dry indoor indirect backlighting, including suitable translucent stone, stretch ceilings, advertising light boxes and custom indoor displays. Confirm the finished material, layout, installation depth and service access for the project.
02. Can it be used for a kitchen island or translucent stone?
Yes, it can be planned behind suitable translucent stone and decorative surfaces for a kitchen island or backsplash. Approve a sample behind the actual material and provide the cavity depth, layout and access details before quotation.
03. What are the cutting rules for the LED light sheet?
Cut only along the marked 20 mm grid. Do not cut LEDs, resistors, conductors or unmarked areas, and confirm the final layout and connection points before cutting.
04. What bending and installation limits should be followed?
Avoid sharp folds and protect the sheet, components and conductors during installation. Use it only for dry indoor indirect backlighting and plan fixing, wiring and service access for the completed installation.
05. Which CCT should I select?
Choose from 3000K, 4000K or 6500K nominal according to the intended white-light appearance. Approve the selected CCT behind the actual material when color appearance is important.
06. Which CRI options are available?
CRI 80+ and CRI 90+ are available options. State the required option in the RFQ and confirm it against the project material and lighting brief.
07. How many sheets can be connected in one run?
Connect a maximum of 10 sheets in one connected run. When the layout exceeds that limit, plan separately designed parallel branches or supplementary feeds with the DC24V power arrangement.
08. How should the DC24V power supply be sized?
Use a DC24V constant-voltage power supply sized for the total connected load, cable loss and the project design margin. Ten sheets equal 240W before cable loss and design margin.
09. Is the sheet for indoor use and what is the warranty scope?
The sheet is for dry indoor indirect backlighting only and has a 3-year indoor warranty from shipment. Keep it protected from outdoor exposure and confirm project conditions before installation.
10. What is needed for samples, drawings and a project quotation?
Share the application, finished material, dimensions, installation depth, CCT, CRI option, sheet layout, power location, quantity, destination and sample requirement. These inputs help prepare a project-specific quotation and sample plan.
