Product Benefits
- 1.6mm thick high thermal conductivity aluminum substrate improves heat dissipation efficiency.

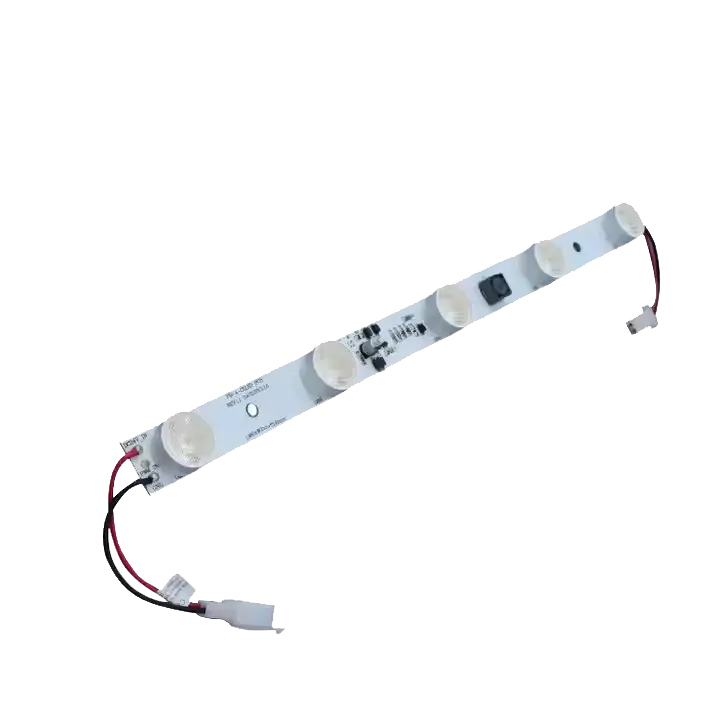

- Adopt OSRAM SMD3535 of 55mil lamp beads with high-efficiency light-emitting chips.
- After 10 professional and mature production processes of LED strips, each process is strictly controlled to ensure the quality of LED strips.
- 99% transmittance lens made of Mitsubishi PMMA material, emitting light at an angle of 10 * 30 °.
- The product undergoes two factory tests and a 12-hour aging test before packaging to ensure that there are no quality issues when it reaches the customer.

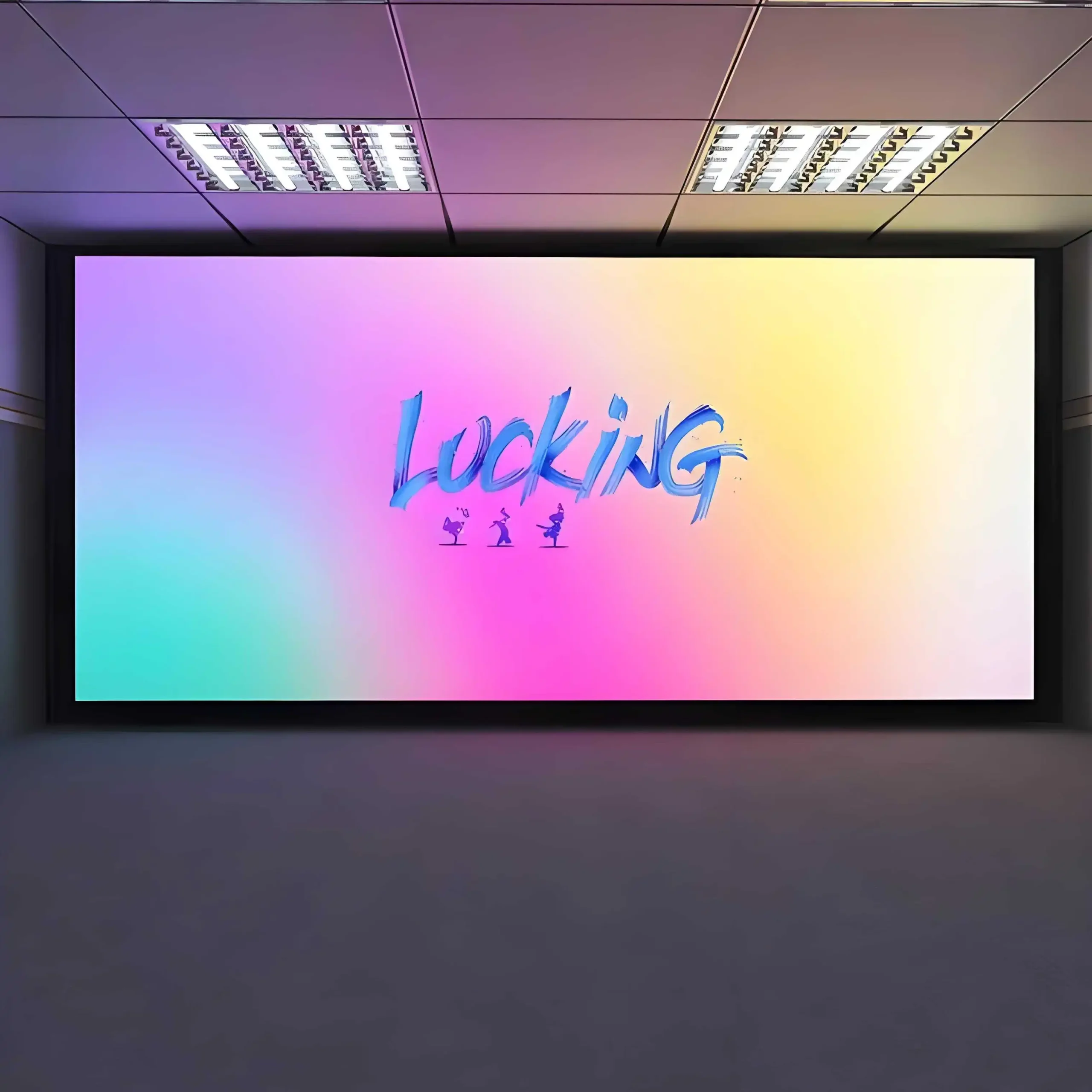

Application scenarios

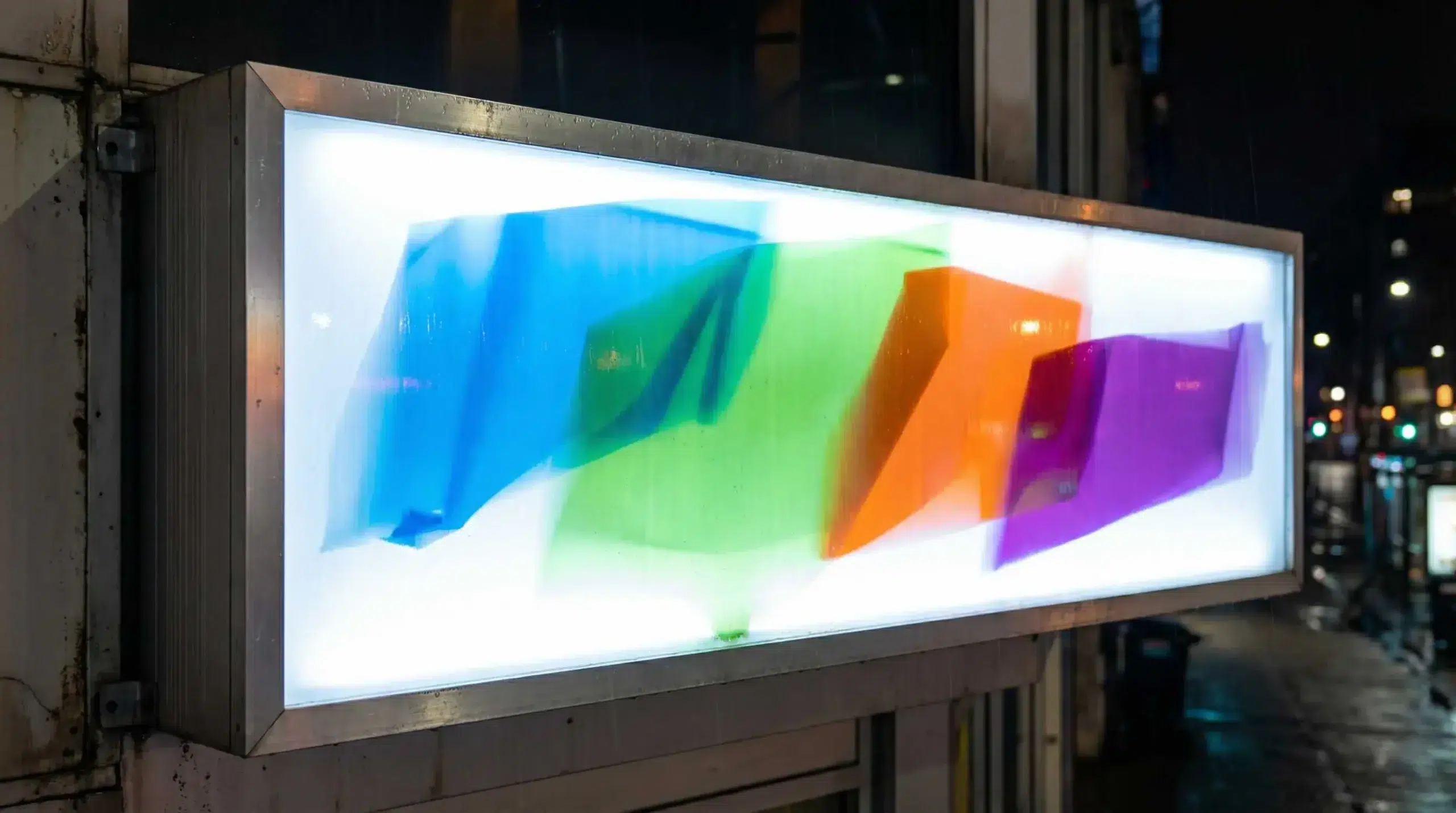

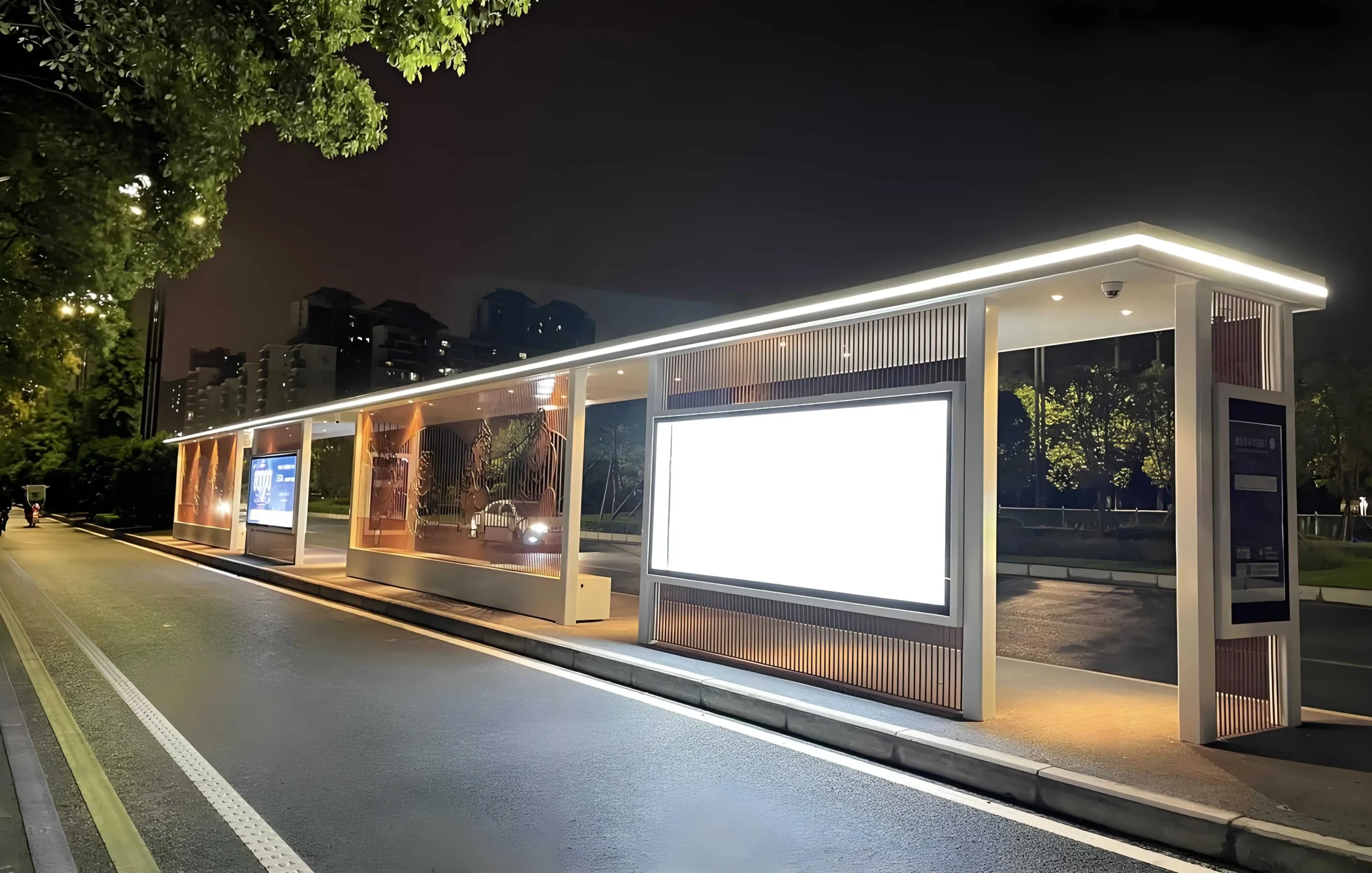

- Bus stop lightbox

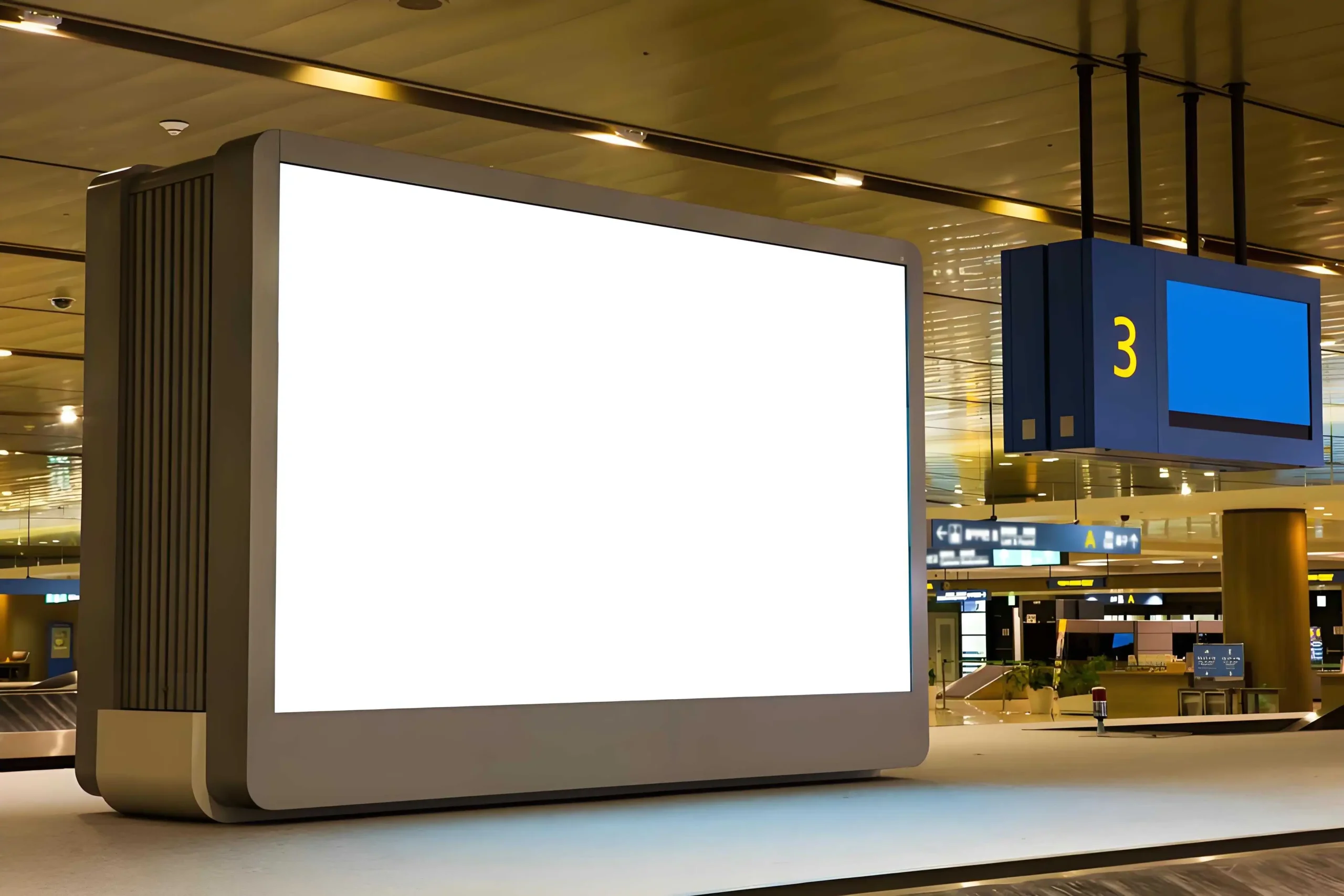

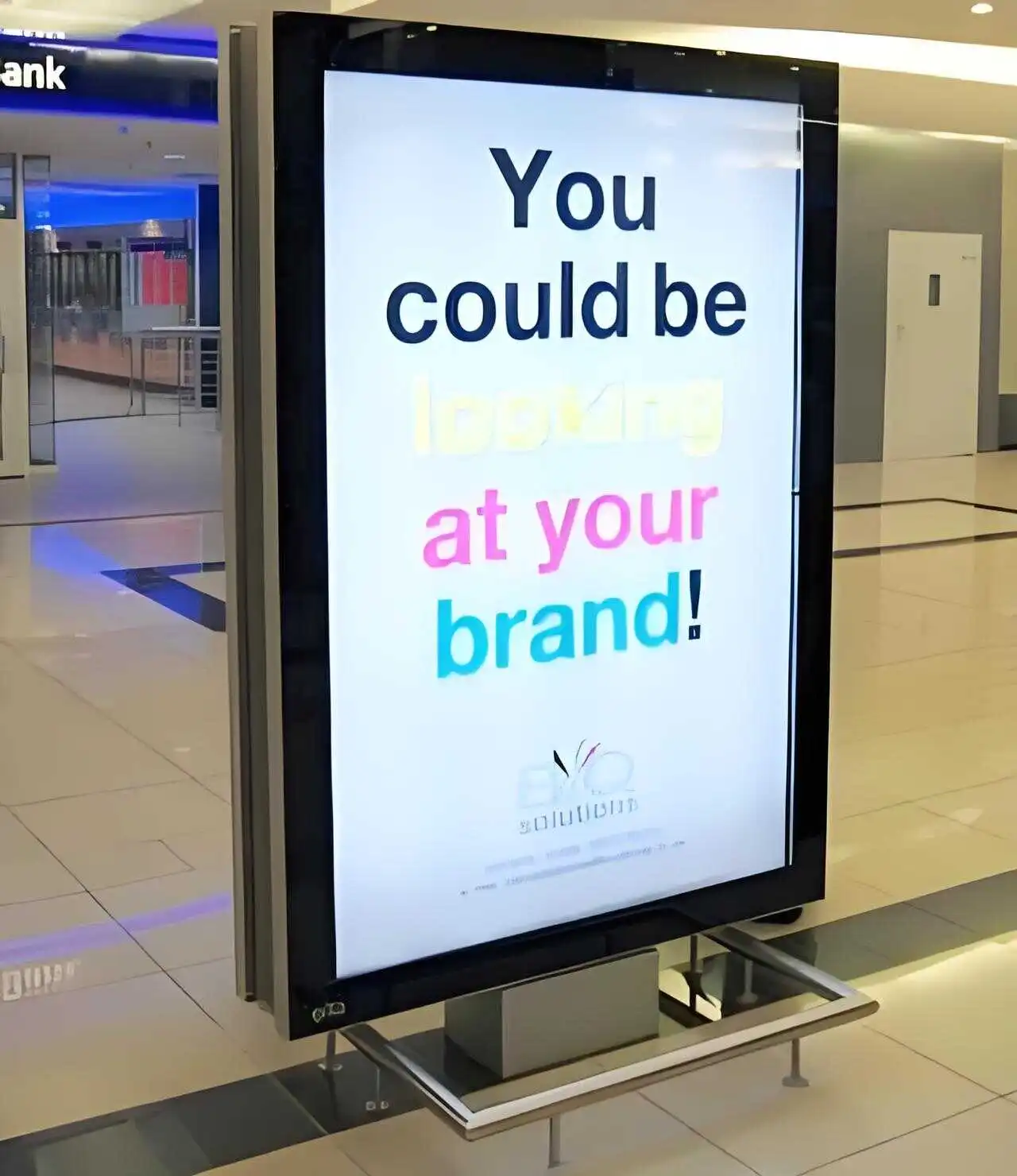

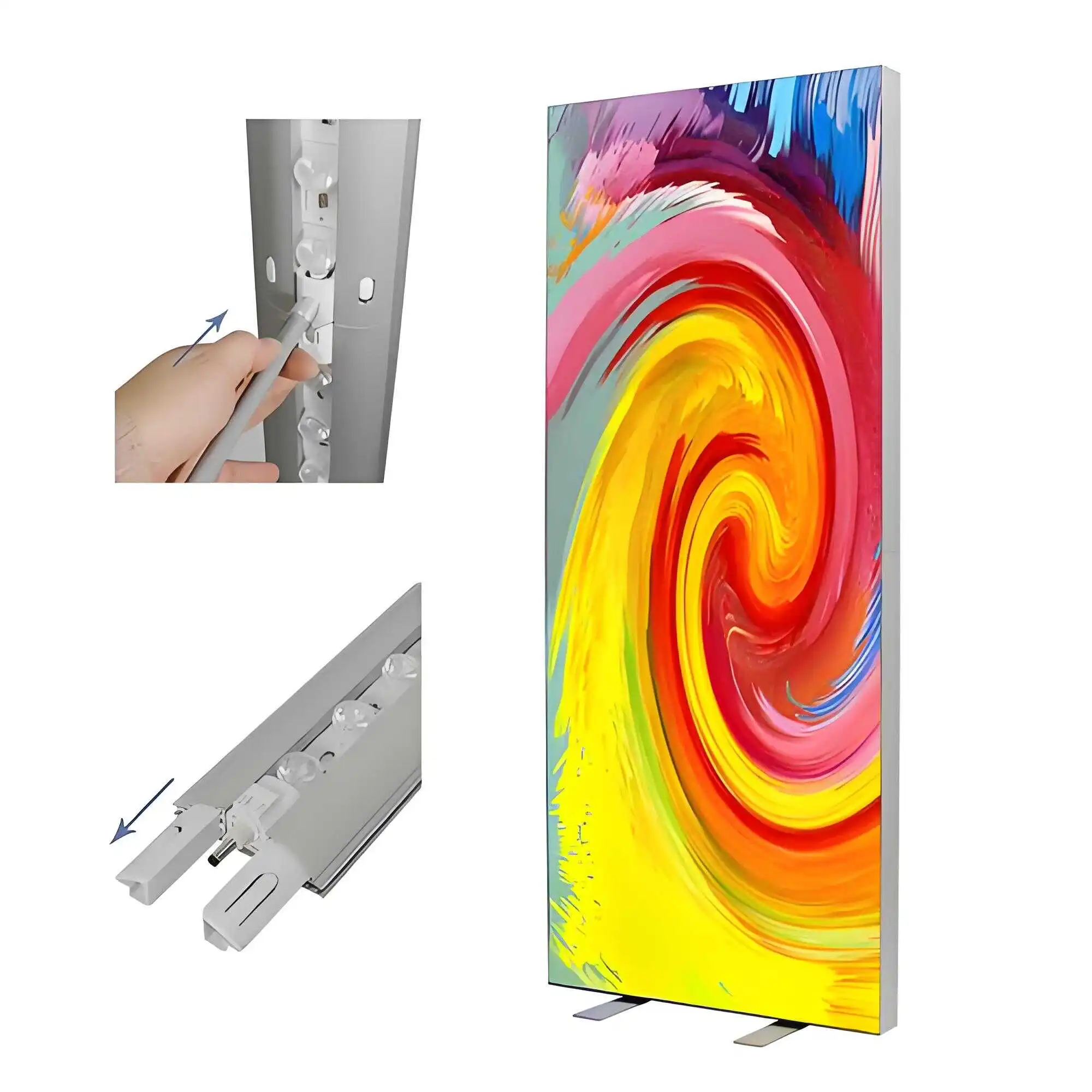

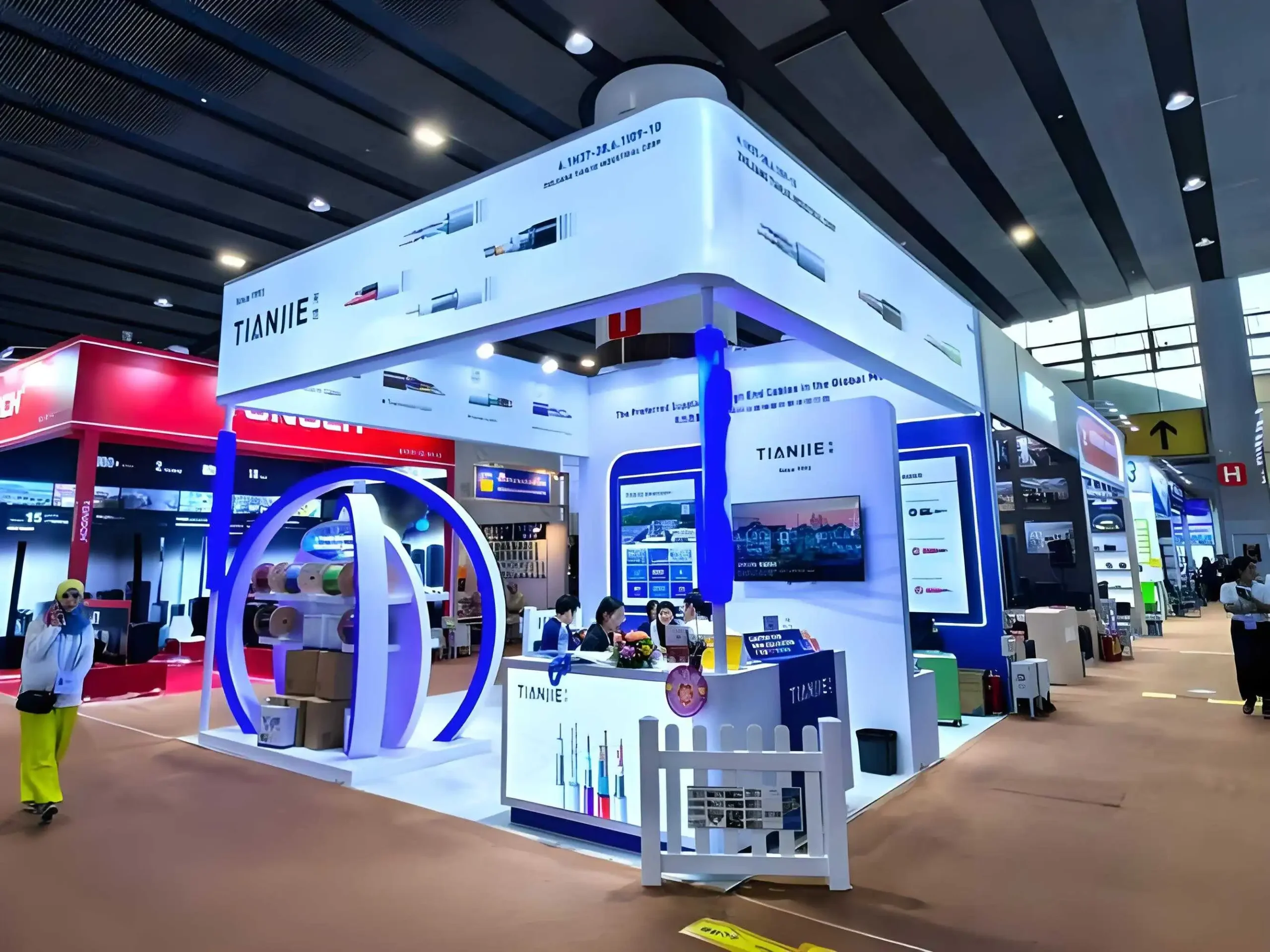

- Exhibition display lightbox
- Places that require side light sources
FQA
Can the color and color temperature be customized??
Sure,Any color can be customized
Can the length be customized?
Sure, we are NPHIS factory and accept ODM and OEM
How long is the product warranty?
We select first-line brand raw materials and adopt the most advanced production technology, So，Our products can be guaranteed for more than three years.
What is the MOQ?
Flexible changes according to your needs
How to contact and place an order?
Contact us via email or WhatsApp and we will provide you with a free quote 24/7.Click

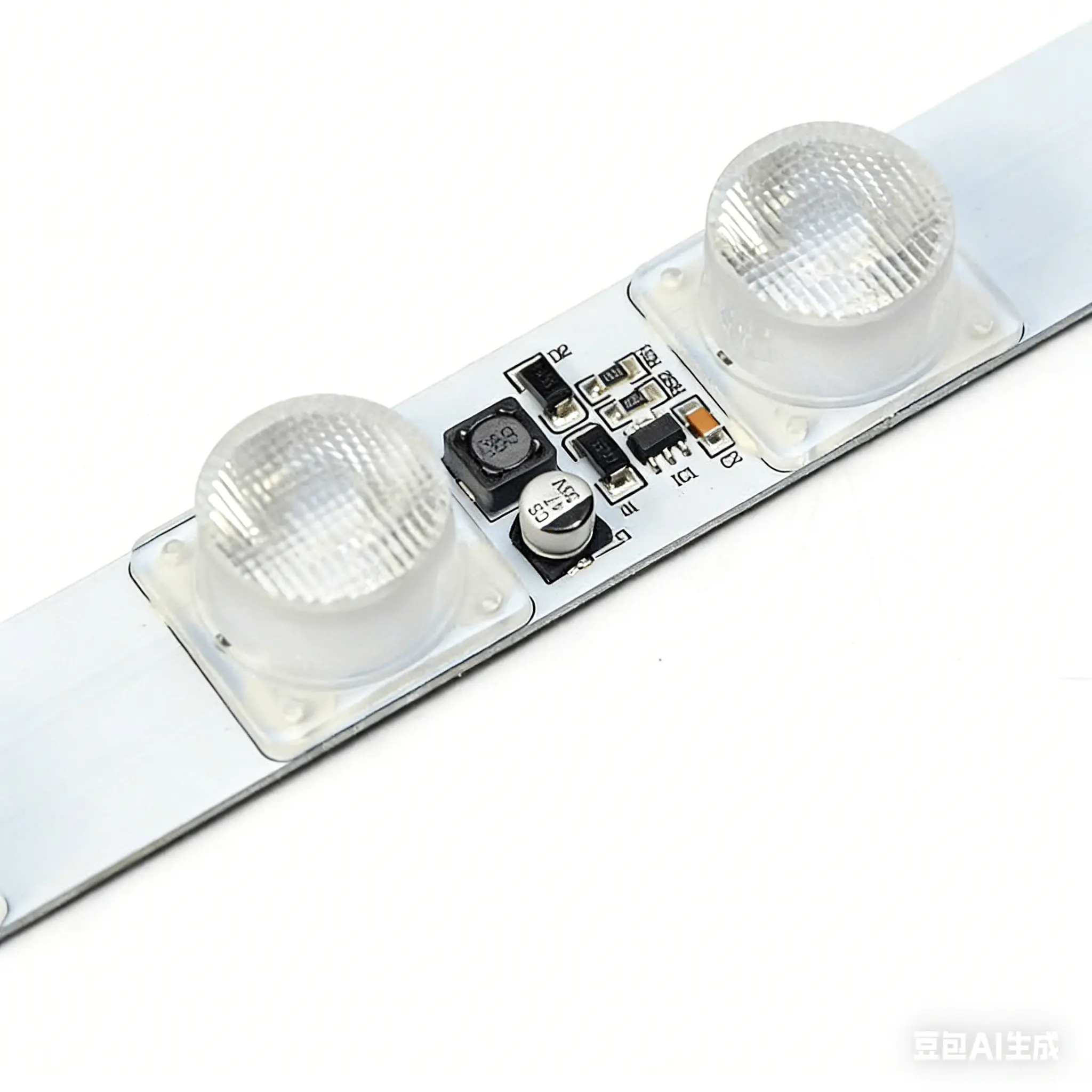

High precision IC constant current solution

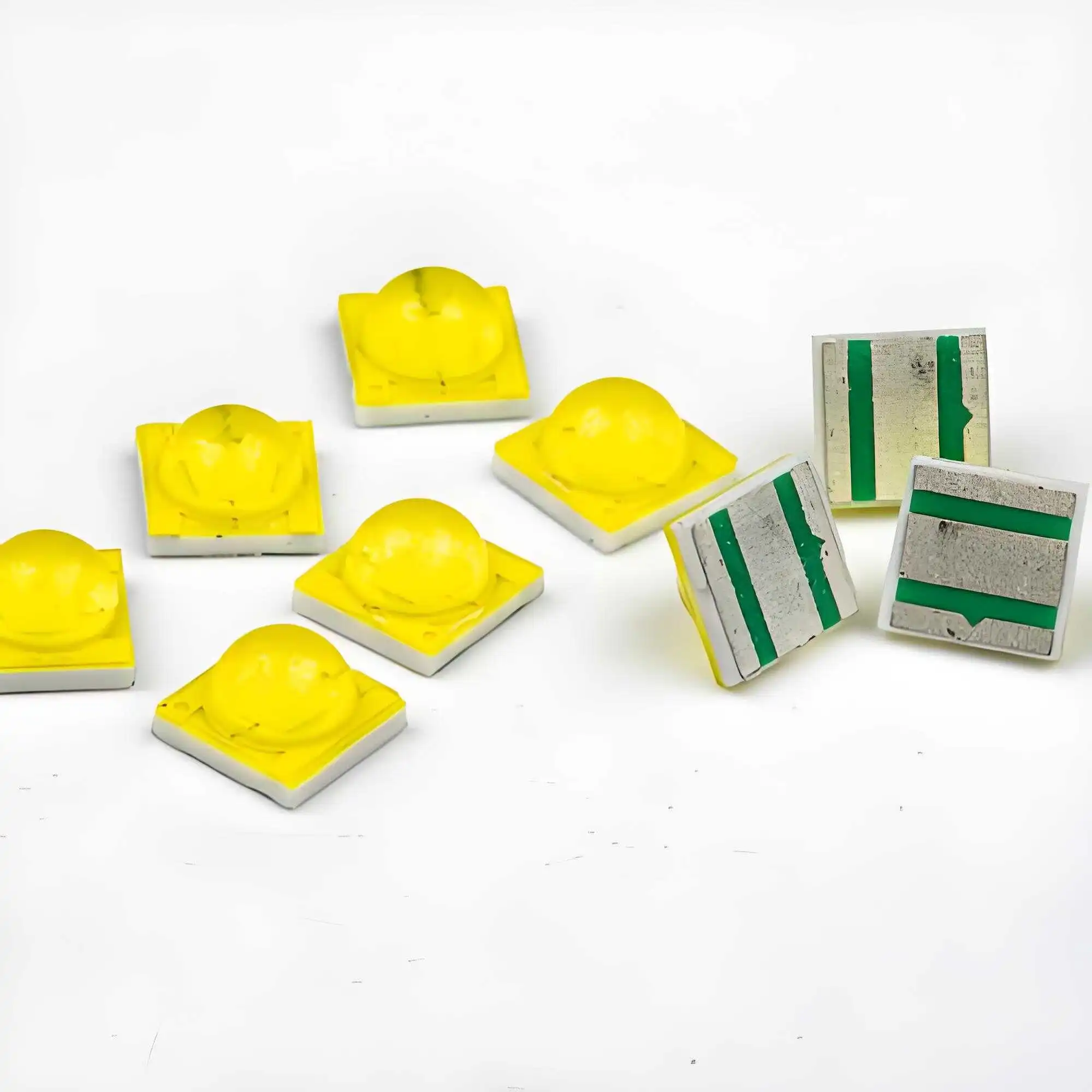

First-line brand lamp chip-OSRAM

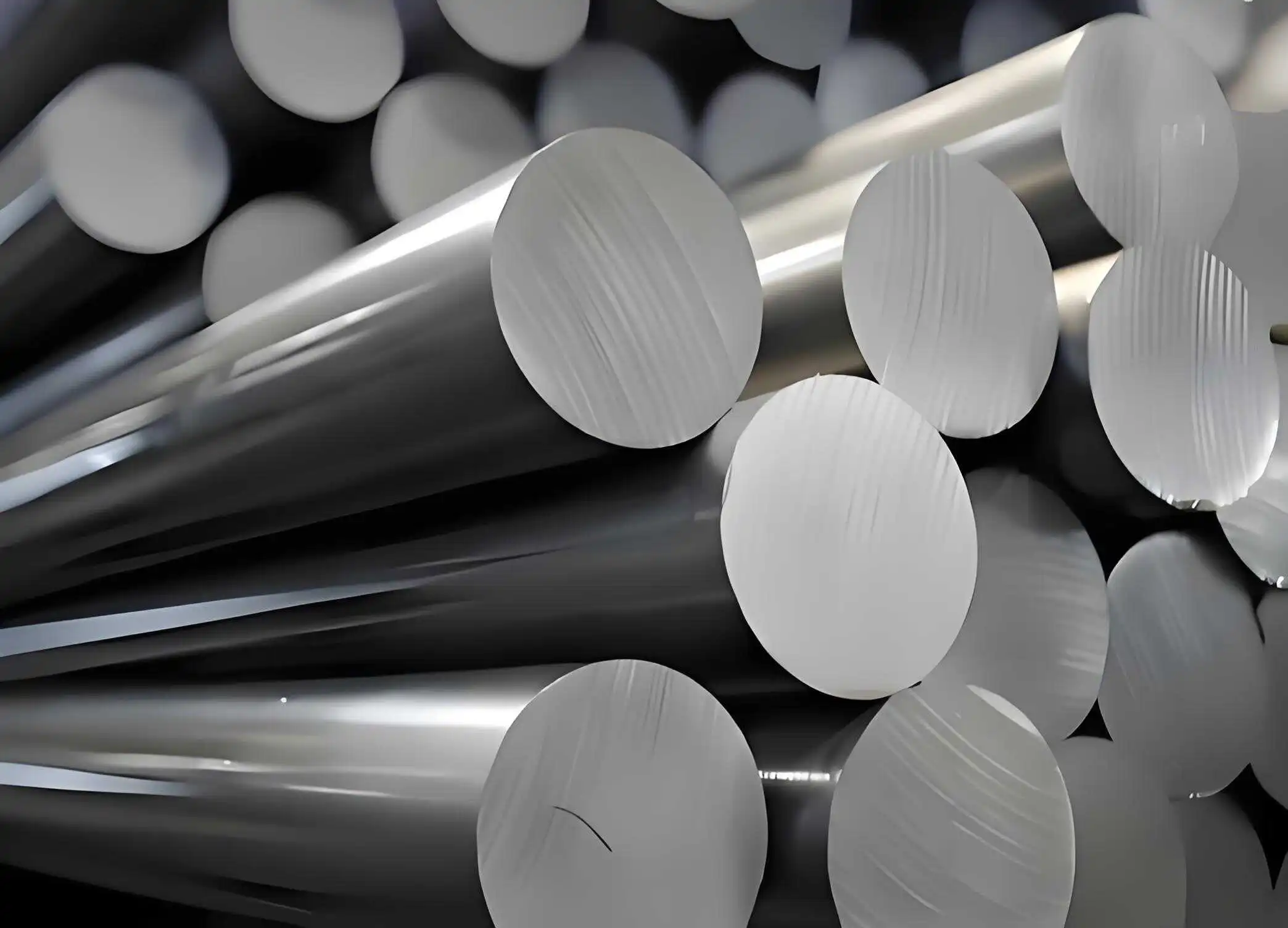

1.6mm thick aluminum substrate
for efficient heat dissipation

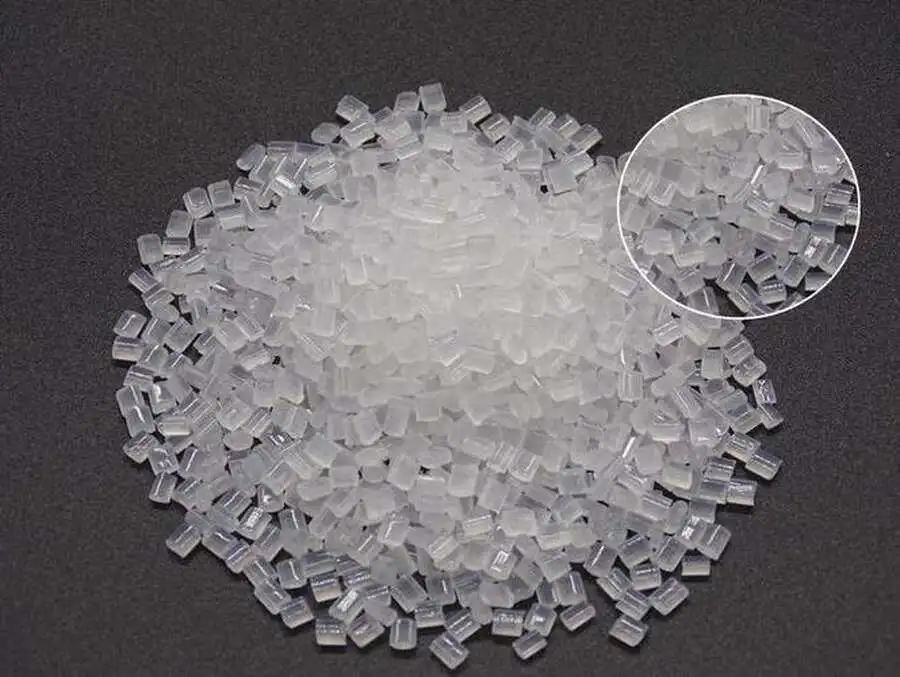

Mitsubishi PMMA material lens
Understanding Edge-Light Lens LED Strip Lighting Edge-light lens LED
LED strip lighting represents an innovative approach to illumination, characterized by its unique structural design and advanced light distribution technology. Unlike conventional LED strips that emit light directly from the diodes, edge-light lens solutions utilize a lens that captures light emitted from the side of the LED, specifically structured to distribute it more evenly across a surface. This method not only maximizes brightness but also enhances the aesthetic appeal of the illuminated area. At the heart of edge-light lens LED strips are Osram 3535 lamp beads, which are crucial for achieving optimal performance. These beads are renowned for their high luminous efficacy and reliability, allowing edge-light lens systems to produce intense, consistent lighting that outshines many traditional options. The strategic positioning of these lamp beads along the length of the strip ensures that light is effectively channeled through the lens, resulting in a flood of soft, diffused illumination that minimizes harsh shadows and glare. The advantages of utilizing edge-light technology are particularly notable in various applications . For instance, in interior lighting, this approach enables designers to create warm, inviting environments with seamless light integration. Additionally, edge-light lens LED strips are increasingly favored for shelf illumination, where they provide adequate visibility without dominating the visual space. Decorative lighting, too, benefits from the subtle elegance of this technology, allowing for imaginative lighting designs without the bulky fixtures typically required by traditional lighting solutions. In contrast to older lighting methods, edge-light lens LED strip lighting promotes energy efficiency, longer lifespan, and reduced maintenance costs. These features collectively position edge-light lens solutions as a modern standard in both residential and commercial settings, signifying a significant evolution in lighting technology.
The Role of PT4115 Constant Current Chip and 1030 Luminous Angle Focusing Lens
The PT4115 constant current chip serves as an essential component in the operation of edge-light lens LED strips. This chip is designed to regulate the current flowing through the LEDs, ensuring that they receive a consistent power supply. By maintaining a constant current, the PT4115 helps to prevent issues such as thermal runaway, which can lead to premature failure of the LED components. Importantly, this regulation translates into improved longevity and reliability, as well as enhanced performance across varied lighting conditions. The use of the PT4115 also allows for varying output levels, granting user flexibility in achieving the desired brightness. When combined with a 1030 luminous angle focusing lens, the effectiveness of LED strips is significantly amplified. This lens is engineered to concentrate and direct the light emitted from the LED sources, optimizing the distribution of light across a given space. not only improves the efficiency of light utilization but also enhances the aesthetic appeal of the illuminated areas by ensuring smoother light transitions and reducing harsh shadows. This results in a more uniform visual experience, which is particularly advantageous in applications such as mood lighting or task- oriented settings. For practical applications, it is crucial to consider proper installation techniques to maximize the performance of the PT4115 and the 1030 lens combination. Ensuring that the LED strips are adequately heat-sinked can significantly increase the lifespan of the components. Additionally, positioning the 1030 lens at the optimal angles can help to achieve the best light projection and coverage. Understanding these technical aspects and installation tips will empower users to harness the potential full of edge-light lens LED strips effectively.
- For professional manufacturers of side light sources, please look for nphis® LED light strip manufacturers
