2835 SMD LED
Flexible
Strip Light
High-brightness 2835 SMD chips deliver consistent, energy-efficient illumination across 120 LEDs per meter — the go-to choice for architectural cove lighting, retail displays, cabinet lighting, and commercial interiors worldwide.
2835 SMD LED
Flexible Strip Light

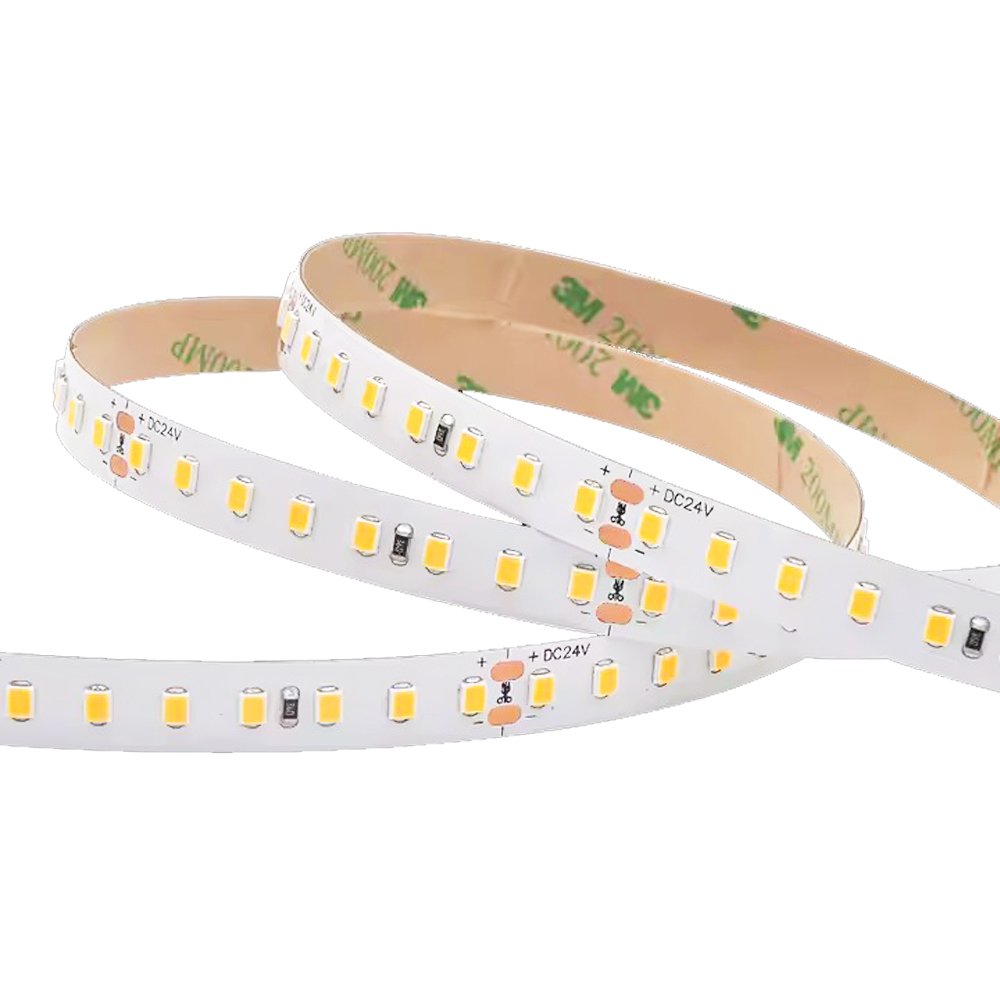

The NPHIS 2835 SMD LED flexible strip light features 120 high-lumen 2835 chips per meter on a high-quality 2 oz. copper PCB. The 2835 package — measuring 2.8 × 3.5 mm — delivers superior luminous efficacy (up to 160 lm/W) with excellent heat dissipation, making it one of the most energy-efficient and reliable LED strip solutions on the market.
Available in a full range of color temperatures (2700K–6500K), RGB, RGBW, and tunable white options. Waterproof grades from IP20 (dry indoor) to IP65 (splash-proof) and IP67 (submersible) ensure suitability for any environment. OEM/ODM customization is available for global B2B buyers.
Send InquirySuperior Performance Features
Six key advantages that make the NPHIS 2835 strip the preferred choice for professional lighting projects.
Up to 160 lm/W Luminous Efficacy
The 2835 SMD chip delivers industry-leading luminous efficacy, producing more light per watt than standard 3528 or 5050 chips. Ideal for energy-conscious commercial and residential projects.
- Up to 160 lm/W luminous efficacy
- Lower power consumption vs. 5050 SMD
- Reduced heat generation for longer lifespan
- Consistent lumen output across full strip length
- 50,000-hour rated lifespan at L70
2 oz. Copper PCB for Superior Heat Dissipation
NPHIS uses a 2 oz. double-sided copper PCB with 70 μm copper foil thickness — double the industry standard — ensuring rapid heat transfer and dramatically extending LED lifespan.
- 2 oz. copper PCB (70 μm copper foil)
- Excellent thermal conductivity for long runs
- Minimal voltage drop along the strip
- Stable lumen output over time
- Suitable for continuous 5–10 m runs
IP20 / IP65 / IP67 Waterproof Options
Choose the right waterproof rating for your application — from dry indoor environments to outdoor installations requiring full submersion protection.
- IP20: Non-waterproof for dry indoor use
- IP65: Silicone-coated for splash protection
- IP67: Fully sealed for outdoor & wet areas
- Silicone sleeve option for IP68 custom builds
- UV-resistant materials for outdoor durability
Fully Dimmable & Smart Control Compatible
Compatible with leading-edge, trailing-edge, PWM, and 0–10V dimming systems. Works seamlessly with smart home platforms including Zigbee, Z-Wave, and DALI controllers.
- PWM dimming: 0–100% flicker-free
- 0–10V analog dimming compatible
- TRIAC leading/trailing-edge dimmer support
- Compatible with Zigbee, Z-Wave, DALI
- No minimum load requirement
Full Spectrum Color Temperature Range
Available in a comprehensive range of color temperatures and color options to suit any lighting design requirement, from warm hospitality ambiance to crisp retail illumination.
- Warm White: 2700K / 3000K
- Neutral White: 4000K / 4500K
- Cool White: 5000K / 6000K / 6500K
- RGB, RGBW, RGB+CCT options
- Tunable white (dual-channel CCT) available
Tool-Free Installation with 3M Adhesive Backing

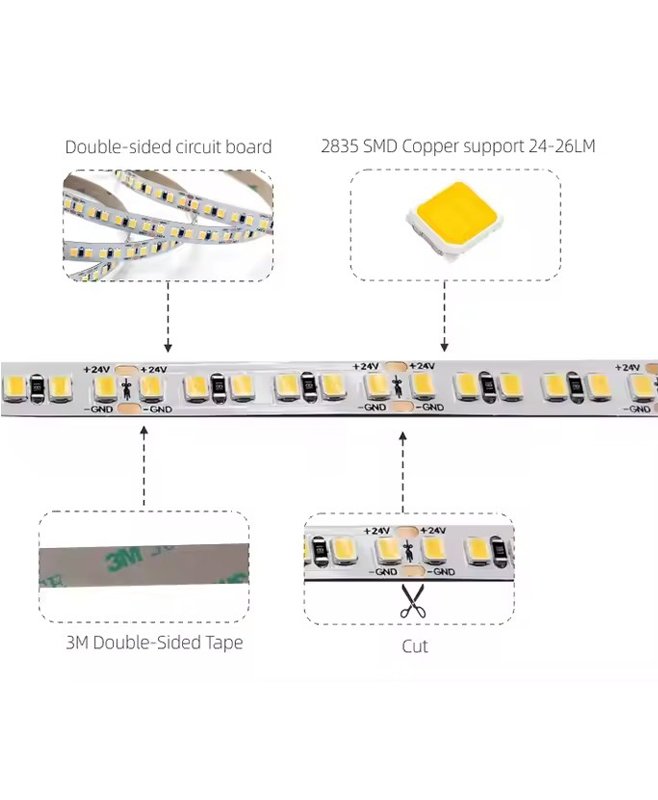

Peel-and-stick 3M VHB adhesive tape on the reverse side enables fast, tool-free installation on virtually any clean, dry surface. Cuttable every 3 LEDs for precise length adjustment.
- 3M VHB double-sided adhesive backing
- Cuttable every 3 LEDs (50 mm intervals)
- Flexible PCB bends up to 90° without cracking
- Solder pads for easy extension & connection
- Compatible with standard LED strip connectors
Full Specifications
Complete technical parameters for the NPHIS 2835 120 LEDs/m LED flexible strip light.
| Parameter | Specification | Notes |
|---|---|---|
| LED Type | SMD 2835 | 2.8 × 3.5 mm package |
| LED Density | 120 LEDs/m | Uniform spacing, 8.33 mm pitch |
| PCB Width | 8 mm | Flexible FPC substrate |
| PCB Copper | 2 oz. (70 μm) | Premium Grade |
| Input Voltage | DC 12V / DC 24V | Selectable at order |
| Power Consumption | 12W/m (12V) · 14.4W/m (24V) | ±5% tolerance |
| Luminous Flux | 1,200–1,440 lm/m | Varies by CCT |
| Luminous Efficacy | Up to 160 lm/W | High Efficiency |
| Color Temperature | 2700K / 3000K / 4000K / 5000K / 6000K / 6500K | Custom CCT available |
| Color Rendering Index | CRI ≥ 90 (Ra90) | High CRI |
| Color Options | Single White / RGB / RGBW / Tunable White | Custom on request |
| Waterproof Rating | IP20 / IP65 / IP67 | IP67 = fully sealed |
| Operating Temperature | -20°C to +50°C | Ambient temperature range |
| Lifespan | ≥ 50,000 hours (L70) | At 25°C ambient |
| Dimming | PWM / 0–10V / TRIAC / DALI | Flicker-free PWM |
| Cut Interval | Every 3 LEDs (50 mm) | Solder pads at cut points |
| Reel Length | 5 m per reel | Custom lengths available |
| Certifications | CE / RoHS / UL (on request) | Certified |
| Warranty | 3 Years | Factory warranty |
Application Scenarios
NPHIS 2835 LED strip lights power a wide range of professional lighting installations across industries.
Fully Customizable for Your Brand
NPHIS offers comprehensive OEM and ODM services for the 2835 LED strip light, tailored to your exact specifications.
Color Temperature
Custom CCT from 2200K to 6500K, including tunable white dual-channel options.
LED Density
60 / 120 / 180 / 240 LEDs/m available. Higher density for brighter, more uniform output.
Voltage
DC 12V or DC 24V standard. Custom voltages (5V, 36V, 48V) available on request.
IP Rating
IP20 non-waterproof, IP65 silicone-coated, IP67 fully sealed, or IP68 custom sleeve.
Packaging & Branding
Custom reel labels, retail packaging, and private-label branding for your market.
Certifications
CE, RoHS, UL, ETL, TUV, SAA, and other market-specific certifications available.
Minimum Order Qty
Low MOQ from 100 reels for standard specs. Custom orders from 500 reels.
Lead Time
Standard orders: 7–10 business days. Custom OEM orders: 15–20 business days.
Your Trusted LED Manufacturing Partner
Over a decade of LED manufacturing expertise, serving 500+ clients across 50+ countries from our Shanghai factory.
Factory-Direct Pricing
No middlemen. Source directly from our Shanghai production facility for the most competitive pricing on 2835 LED strips.
10+ Years of Experience
Founded with deep expertise in LED strip manufacturing, NPHIS has supplied premium lighting solutions to distributors and contractors worldwide since 2014.
Strict Quality Control
Every reel undergoes 100% lumen, color temperature, and voltage testing before shipment. Consistent quality batch after batch.
One-Stop LED Supply
From LED strips to power supplies, controllers, and accessories — NPHIS provides a complete LED lighting solution under one roof.
Professional Technical Support
Our engineering team provides full pre-sales consultation, wiring diagrams, and after-sales technical support for every project.
Fast Global Shipping
Partnerships with DHL, FedEx, and sea freight forwarders ensure reliable, on-time delivery to 50+ countries worldwide.
Certifications & Standards
All NPHIS 2835 LED strip lights meet international safety and environmental standards for global market access.
Frequently Asked Questions
Common questions about the NPHIS 2835 LED flexible strip light answered by our technical team.
