LED strip Voltage drop makes lights dim at the far end of long runs. It changes colors and lowers brightness.
This problem hits hard in low-voltage systems. Yet you can solve it fast with clear math and smart products.

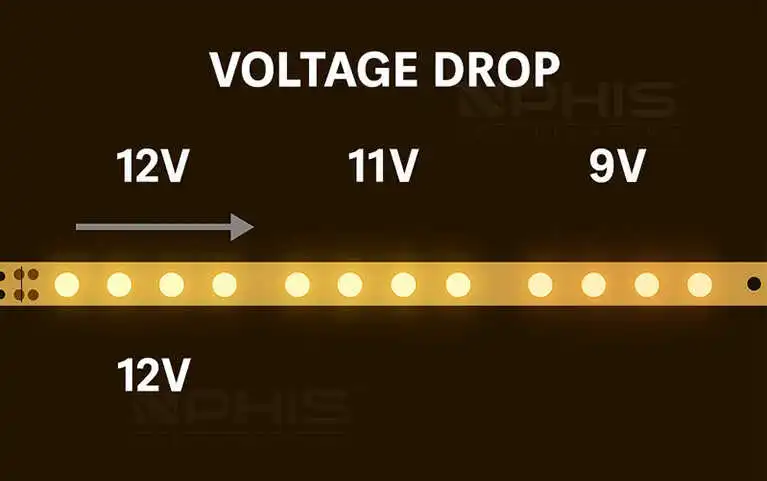

What Causes Voltage Drop in LED Strips
Electricity loses power as it travels. Thin wires and low voltage make it worse.
Common Issues with Single Power Supply Long Run LED Strip
One-end power feed works for short runs only. Beyond 10 meters, brightness drops fast.
Transitioning to longer distances needs better planning. Otherwise, you see uneven light and color shifts.
Challenges in Outdoor Perimeter LED Strip Lighting Continuous
Outdoor jobs need weatherproof strips plus stable power. Moisture and temperature swings make voltage drop worse.
Yet the right product choice keeps everything even and reliable.

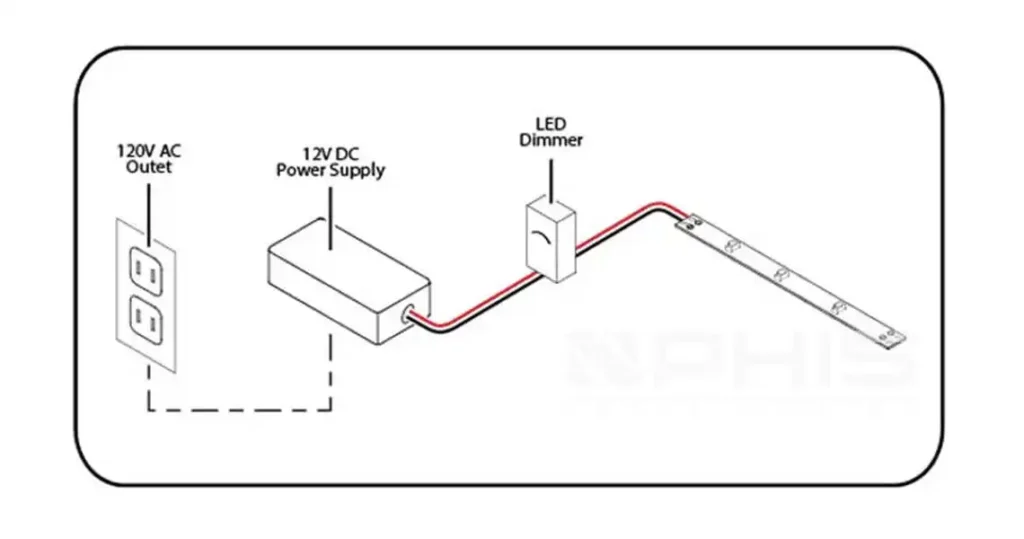

How to Calculate Voltage Drop – Easy Formula and Tips
Use this basic formula first: Vdrop=I×R×L×2 V_{drop} = I \times R \times L \times 2 I is current in amps. R is resistance per foot. L is one-way length in feet.
For the strip itself, drop follows a quadratic pattern because current decreases along the tape.
Max run length for 24V LED strip usually stays at 10–15 meters on standard copper. 12V runs drop even sooner.
For quick checks, try an online LED strip voltage drop calculator. It saves time and prevents mistakes.
The Basic Voltage Drop Formula
Start simple. Plug in your numbers and double the length for round-trip.
This formula gives a clear picture in seconds.
Real Example for Max Run Length for 24V LED Strip
Suppose you run 5 amps over 50 feet of 18 AWG wire. Drop hits about 3 volts. Lights dim noticeably.
Shorten the run or thicken the wire to fix it fast.
Using LED Strip Wire Gauge Calculator Long Run
A good calculator factors in current, length, and voltage. It recommends the perfect AWG instantly.
Always add 20% safety margin for real projects.

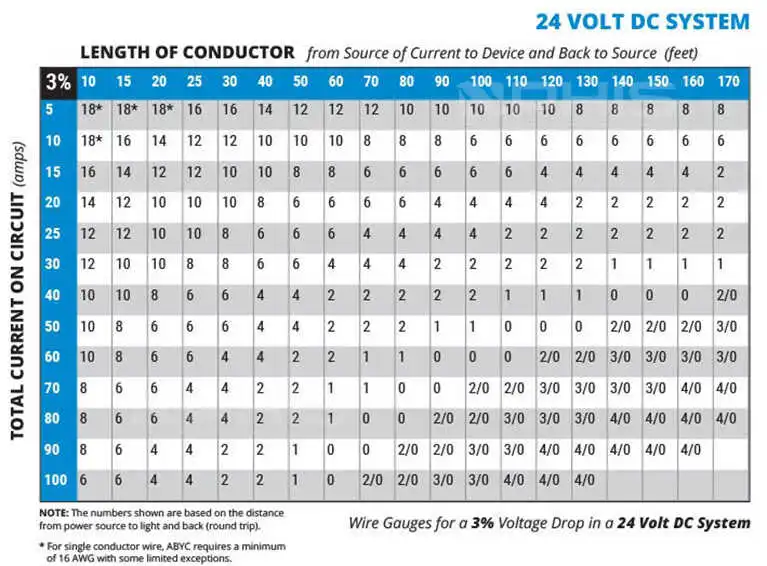

LED Strip Wire Gauge Calculator Long Run – Quick Reference Table
Thicker wire handles longer runs better. Here is a clear guide for 24V at 5A load:
| AWG | Resistance (Ω/1000 ft) | Max Safe Run (ft) for 24V LED Strip | Recommended Use |
|---|---|---|---|
| 14 | 2.53 | Up to 30 ft | Short runs |
| 12 | 1.59 | Up to 50 ft | Medium runs |
| 10 | 1.00 | Up to 80 ft | Long runs |
| 8 | 0.63 | Up to 120 ft | Very long runs |
This table cuts guesswork and helps you choose cable fast.
4 Proven Ways to Reduce Voltage Drop
You have solid options to fight drop.

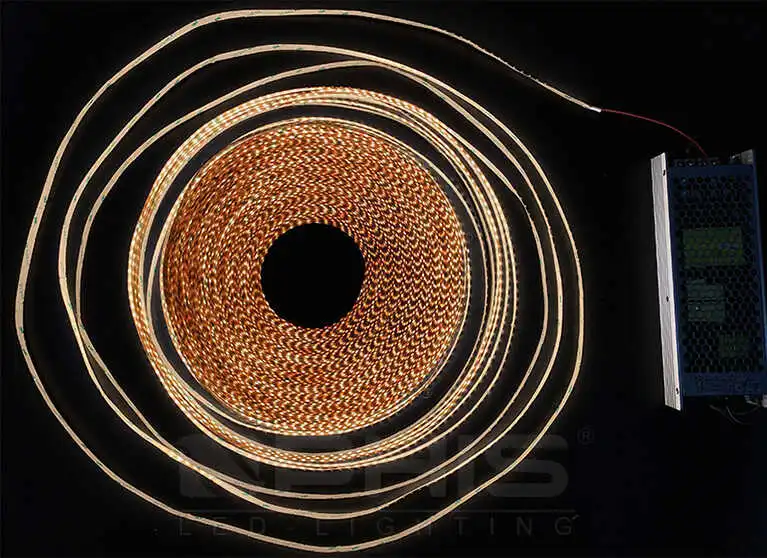

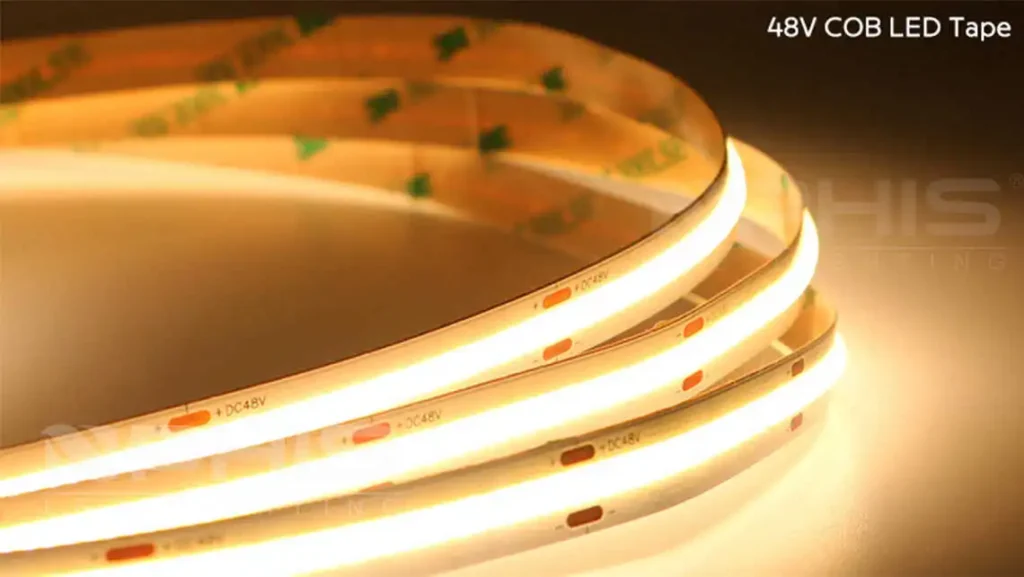

Switch to Higher Voltage Like 48V LED Strip Continuous Run
Higher voltage cuts current in half. Choose 24V or 48V instead of 5V or 12V for big gains.
48V LED strip continuous run supports single-end power up to 50m with almost zero drop.

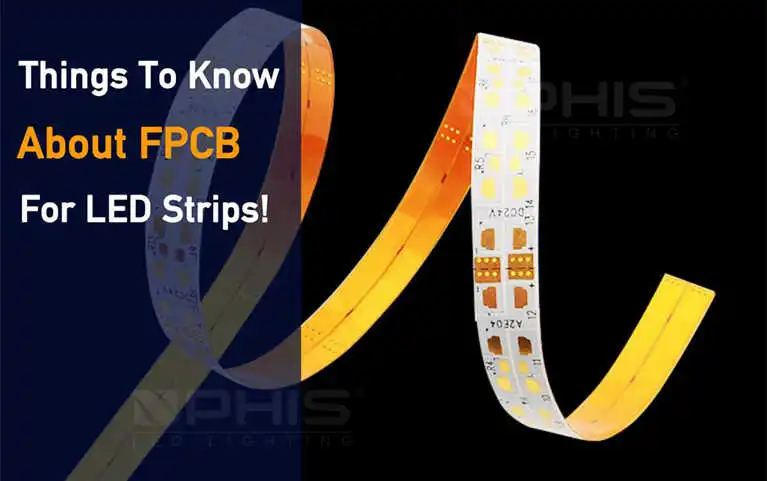

2Choose 3oz Copper PCB LED Strip
Thicker copper lowers resistance. 3oz copper PCB LED strip beats standard 1oz or 2oz every time. Less heat and better performance follow naturally.

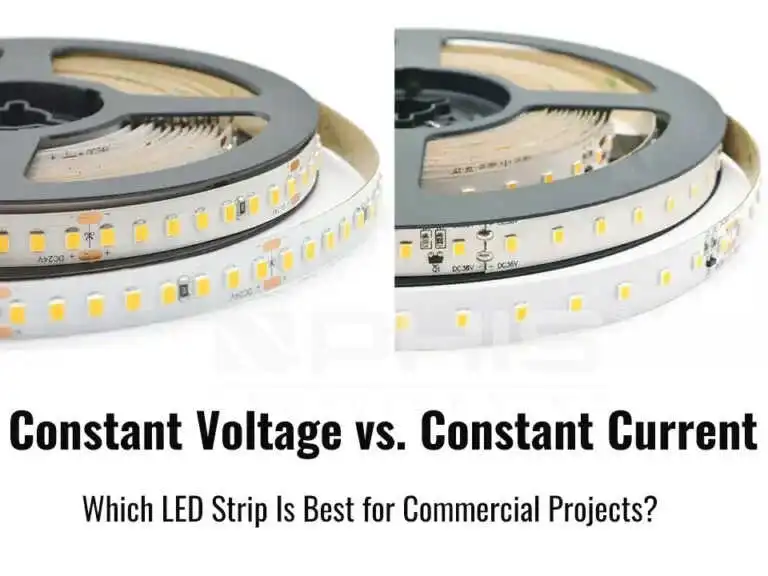

Adopt Constant Current Design
Constant current keeps brightness steady. It beats constant voltage for long runs.
Add Multiple Power Injection Points
Feed power every 5–10 meters instead of one end only. This simple step evens out light.
Yet all these methods still need extra wiring and time.
The Smartest Fix: Constant Current Long Run LED Strip
Skip the math and messy wiring.
Constant current long run LED strip delivers single power supply for 50m / 100ft with no voltage drop LED strip 50m.
It is the ultimate solution for commercial grade LED tape light long run projects.
Check our COB LED strips for uniform light. Explore silicone neon flex strips for smooth outdoor use. See rigid LED bars and DMX512 controllable strips. Or order non-standard custom LED strips with 3oz copper.

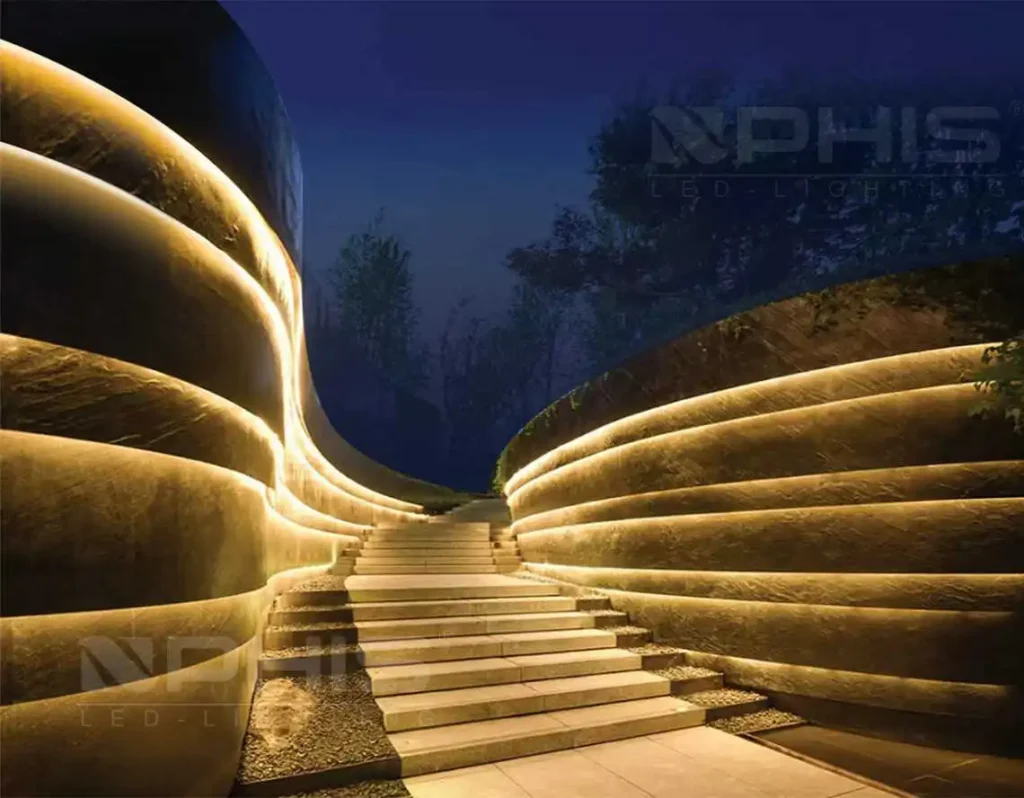

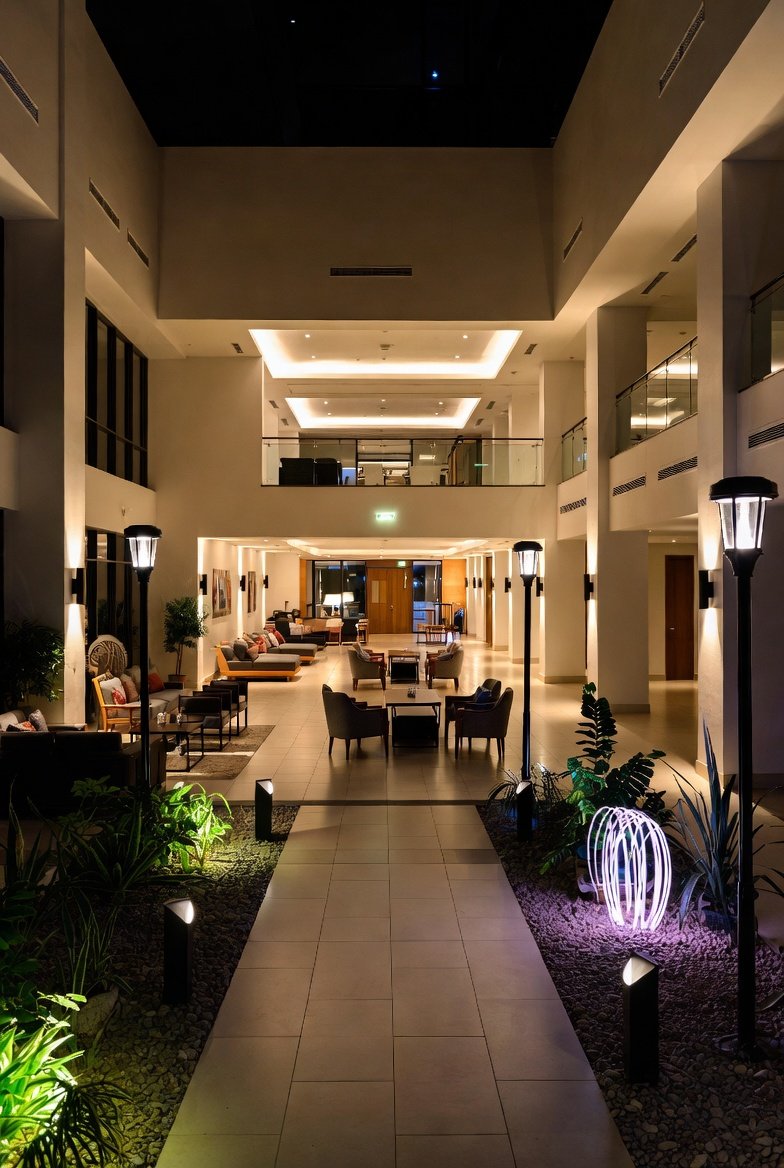

Real-World Outdoor Applications
Outdoor perimeter LED strip lighting continuous looks perfect with these solutions.
Buildings and landscapes stay bright and even from end to end.
FAQs For Your Projects
What is the max run length for 24V LED strip?
Standard strips reach 10–15 meters. Our 48V options go to 50 meters with zero drop.
How accurate is an LED strip wire gauge calculator long run?
It gives reliable numbers when you enter exact current and length. Add 20% margin for safety.
Does 3oz copper PCB LED strip really help long runs?
Yes. Thicker copper cuts resistance and heat while supporting longer distances.
Can constant current long run LED strip power 50m from one end?
Yes. Brightness stays stable without extra power injection.
What works best for outdoor perimeter LED strip lighting continuous?
Pick 48V or constant current models plus IP67 silicone for full weather protection.
Is single power supply long run LED strip practical?
Only with our higher-voltage constant current designs. Otherwise, add injection points.
How do I get no voltage drop LED strip 50m / 100ft?
Choose our commercial grade LED tape light long run series with 3oz copper and constant current.
Are your strips suitable for commercial grade LED tape light long run?
Absolutely. We export high-quality solutions with 5-year warranties worldwide.
What voltage should I pick for long runs?
48V is best over 20 meters. It halves current and slashes drop.
Can I get custom lengths or specs?
Yes. Tell us your needs for non-standard custom LED strips.
